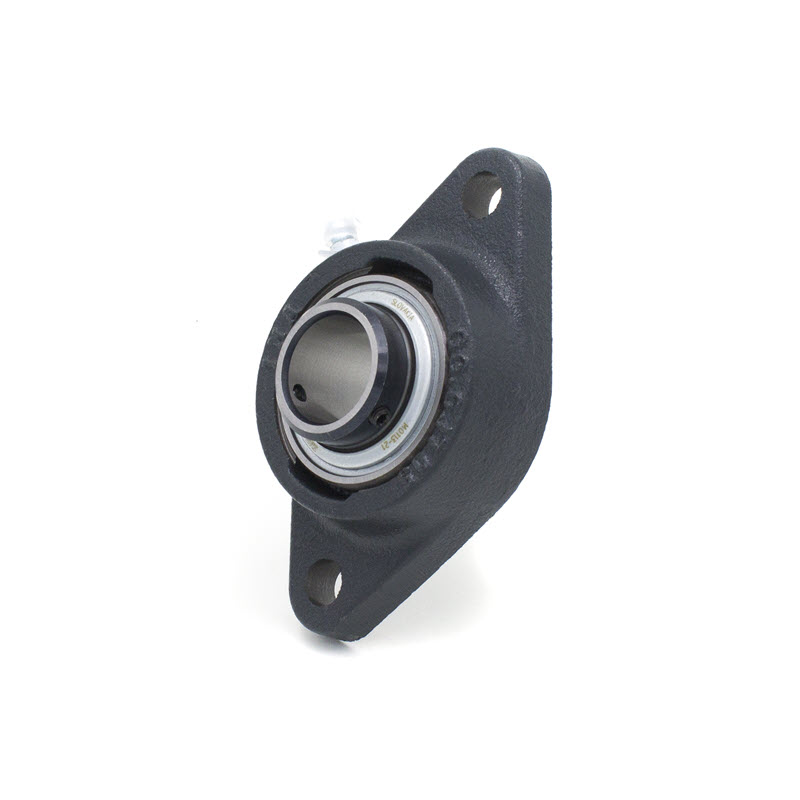

Flanschlager OWFS (PCFT), ähnlich INA

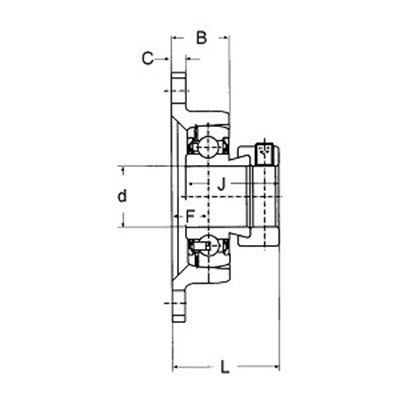

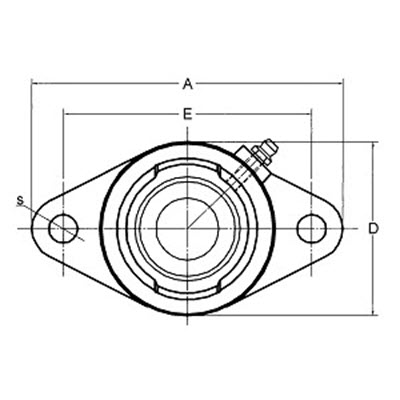

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | A | L | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | A | L | |||
| mm | mm | mm | |||
| 10174451 | OWFS12 | 12,00 | 99,00 | 32,10 | |
| 10174452 | OWFS15 | 15,00 | 99,00 | 32,10 | |
| 10174453 | OWFS17 | 17,00 | 99,00 | 32,20 | |
| 10174454 | OWFS20 | 20,00 | 112,00 | 34,50 | |
| 10174455 | OWFS25 | 25,00 | 124,00 | 36,00 | |
| 10174456 | OWFS30 | 30,00 | 142,00 | 41,00 | |
| 10174457 | OWFS35 | 35,00 | 155,00 | 45,90 | |
| 10174458 | OWFS40 | 40,00 | 172,00 | 53,00 | |
| 10174459 | OWFS45 | 45,00 | 180,00 | 53,40 | |
| 10174460 | OWFS50 | 50,00 | 190,00 | 52,90 | |
