Axial spherical plain bearing GE..AX according to DIN ISO 12240-3

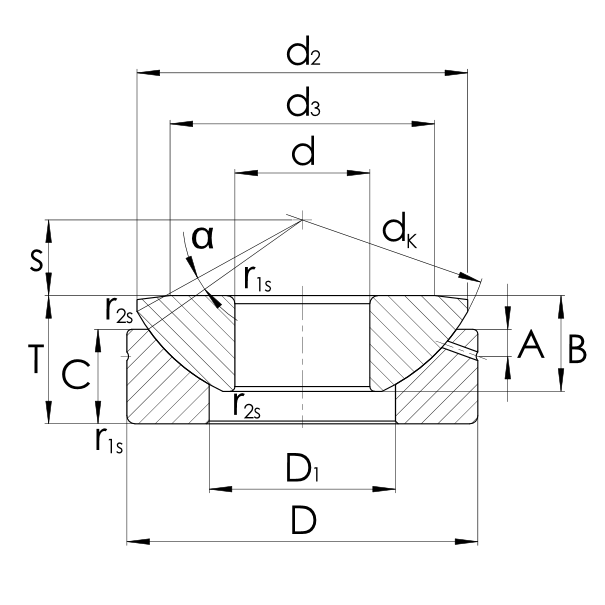

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10040534 | GE10-AX | 10.00 | 30.00 | 7.90 | |
| 10040538 | GE12-AX | 12.00 | 35.00 | 9.30 | |
| 10040544 | GE15-AX | 15.00 | 42.00 | 10.70 | |
| 10040548 | GE17-AX | 17.00 | 47.00 | 11.50 | |
| 10040552 | GE20-AX | 20.00 | 55.00 | 14.30 | |
| 10040558 | GE25-AX | 25.00 | 62.00 | 16.00 | |
| 10040562 | GE30-AX | 30.00 | 75.00 | 18.00 | |
| 10040567 | GE35-AX | 35.00 | 90.00 | 22.00 | |
| 10040570 | GE40-AX | 40.00 | 105.00 | 27.00 | |
| 10040572 | GE45-AX | 45.00 | 120.00 | 31.00 | |
| 10040574 | GE50-AX | 50.00 | 130.00 | 33.50 | |
| 10040576 | GE60-AX | 60.00 | 150.00 | 37.00 | |
| 10040578 | GE70-AX | 70.00 | 160.00 | 40.00 | |
| 10040580 | GE80-AX | 80.00 | 180.00 | 42.00 | |
| 10040536 | GE100-AX | 100.00 | 210.00 | 50.00 | |
| 10040540 | GE120-AX | 120.00 | 230.00 | 52.00 | |
| 10040542 | GE140-AX | 140.00 | 260.00 | 61.00 | |
| 10040546 | GE160-AX | 160.00 | 290.00 | 65.00 | |
| 10040550 | GE180-AX | 180.00 | 320.00 | 70.00 | |
| 10040554 | GE200-AX | 200.00 | 340.00 | 74.00 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
These may also interest you.
Catalog
Currently, there isn't a catalog for Axial spherical plain bearing available. Please use our online datasheet.
Service Bulletin
There are no documents for Axial spherical plain bearing published, yet. Please contact your personal sales representative if you have further questions.
