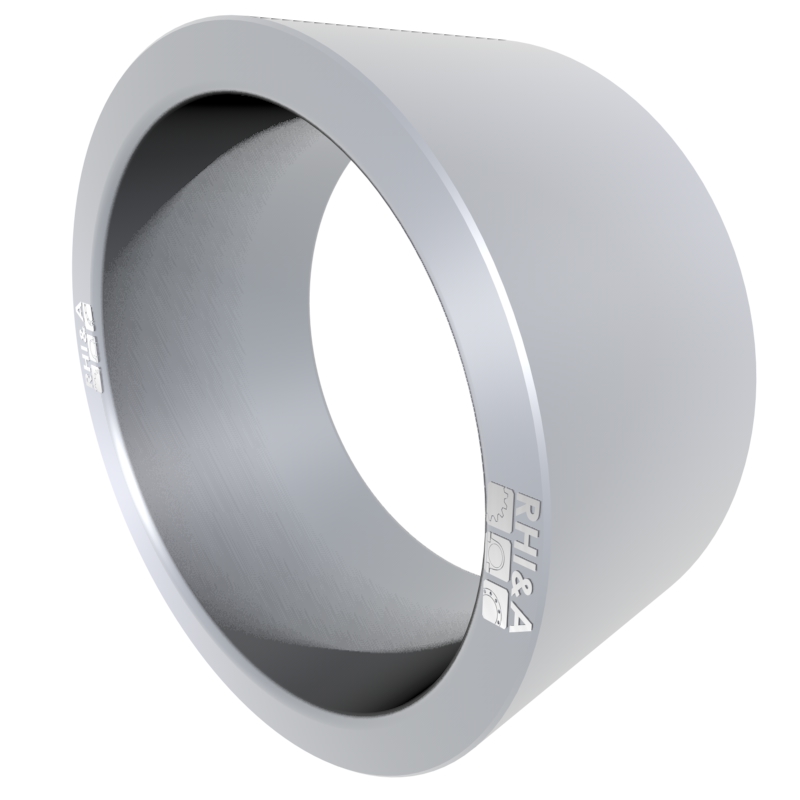

Inner ring LR - DIN 620

  • Inner ring LR
    Inner ring LR
  • Inner ring LR
    Inner ring LR
    Description Main dimensions Functions
    d F B
    mm mm mm
    SKU Description Main dimensions Functions
    d F B
    mm mm mm
    10064448 LR7X10X10,5 7.00 10.00 10.50
    10064450 LR8X12X12,5 8.00 12.00 12.50
    10064449 LR8X12X10,5 8.00 12.00 10.50
    10064417 LR10X13X12,5 10.00 13.00 12.50
    10064418 LR12X15X12,5 12.00 15.00 12.50
    10064419 LR12X15X16,5 12.00 15.00 16.50
    10064420 LR12X15X22,5 12.00 15.00 22.50
    10064422 LR15X18X16,5 15.00 18.00 16.50
    10064421 LR15X18X12,5 15.00 18.00 12.50
    10064423 LR17X20X16,5 17.00 20.00 16.50
    10064424 LR17X20X20,5 17.00 20.00 20.50
    10064425 LR17X20X30,5 17.00 20.00 30.50
    10064428 LR20X25X20,5 20.00 25.00 20.50
    10064426 LR20X25X12,5 20.00 25.00 12.50
    10064427 LR20X25X16,5 20.00 25.00 16.50
    10064429 LR20X25X26,5 20.00 25.00 26.50
    10064430 LR20X25X38,5 20.00 25.00 38.50
    10064431 LR22X28X20,5 22.00 28.00 20.50
    10064432 LR25X30X12,5 25.00 30.00 12.50
    10064436 LR25X30X38,5 25.00 30.00 38.50
    10064435 LR25X30X26,5 25.00 30.00 26.50
    10064434 LR25X30X20,5 25.00 30.00 20.50
    10064433 LR25X30X16,5 25.00 30.00 16.50
    10064437 LR30X35X12,5 30.00 35.00 12.50
    10064438 LR30X35X16,5 30.00 35.00 16.50
    10064439 LR30X35X20,5 30.00 35.00 20.50
    10064440 LR35X40X12,5 35.00 40.00 12.50
    10064441 LR35X40X16,5 35.00 40.00 16.50
    10064442 LR35X40X20,5 35.00 40.00 20.50
    10064443 LR40X45X16,5 40.00 45.00 16.50
    10064444 LR40X45X20,5 40.00 45.00 20.50
    10064445 LR45X50X20,5 45.00 50.00 20.50
    10064446 LR45X50X25,5 45.00 50.00 25.50
    10064447 LR50X55X20,5 50.00 55.00 20.50
    Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
