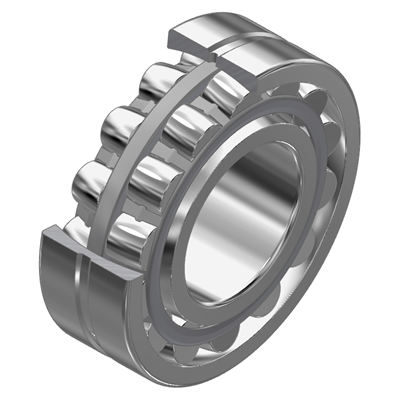

Spherical roller bearing 232, DIN 635-2, DIN 616 ISO 15:1998

  • Spherical roller bearing 232
    Spherical roller bearing 232
  • Spherical roller bearing 232 cylindrical
    Spherical roller bearing 232 cylindrical
  • Spherical roller bearing 232 conical
    Spherical roller bearing 232 conical

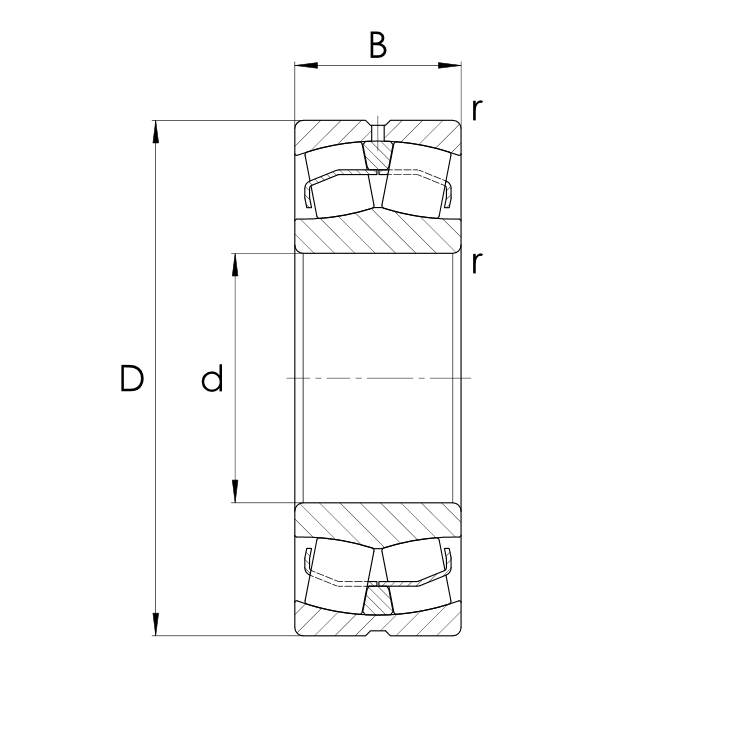

    Description Main dimensions Functions
    d D B
    mm mm mm
    SKU Description Main dimensions Functions
    d D B
    mm mm mm
    10027805 23218CC/W33 90.00 160.00 52.40
    10027807 23220CC/W33 100.00 180.00 60.30
    10027809 23222CC/W33 110.00 200.00 69.80
    10027811 23224CC/W33 120.00 215.00 76.00
    10027813 23226CC/W33 130.00 230.00 80.00
    10027815 23228CC/W33 140.00 250.00 88.00
    10027817 23230CC/W33 150.00 270.00 96.00
    10027819 23232CC/W33 160.00 290.00 104.00
    10027821 23234CC/W33 170.00 310.00 110.00
    10027823 23236CC/W33 180.00 320.00 112.00
    10027825 23238CC/W33 190.00 340.00 120.00
    10027827 23240CC/W33 200.00 360.00 128.00
    10027829 23244CC/W33 220.00 400.00 144.00
    10027831 23248CC/W33 240.00 440.00 160.00
    10027833 23252CC/W33 260.00 480.00 174.00
    10027835 23256CC/W33 280.00 500.00 176.00
    10027837 23260CC/W33 300.00 540.00 192.00
    10027839 23264CC/W33 320.00 580.00 208.00
    10027841 23268CA/W33 340.00 620.00 224.00
    10027843 23272CA/W33 360.00 650.00 232.00
    10027845 23276CA/W33 380.00 680.00 240.00
    10027847 23280CA/W33 400.00 720.00 256.00
    10027849 23284CA/W33 420.00 760.00 272.00
    10027851 23288CA/W33 440.00 790.00 280.00
    10027853 23292CA/W33 460.00 830.00 296.00
    10027855 23296CA/W33 480.00 870.00 310.00
    10027791 232/500CA/W33 500.00 920.00 336.00
    10027793 232/530CA/W33 530.00 980.00 355.00
    10027795 232/560CA/W33 560.00 1,030.00 365.00
    10027797 232/600CA/W33 600.00 1,090.00 388.00
    10027799 232/670CA/W33 670.00 1,220.00 438.00
    10027801 232/710CA/W33 710.00 1,280.00 450.00
    10027803 232/750CAF/W33 750.00 1,360.00 475.00
    Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
