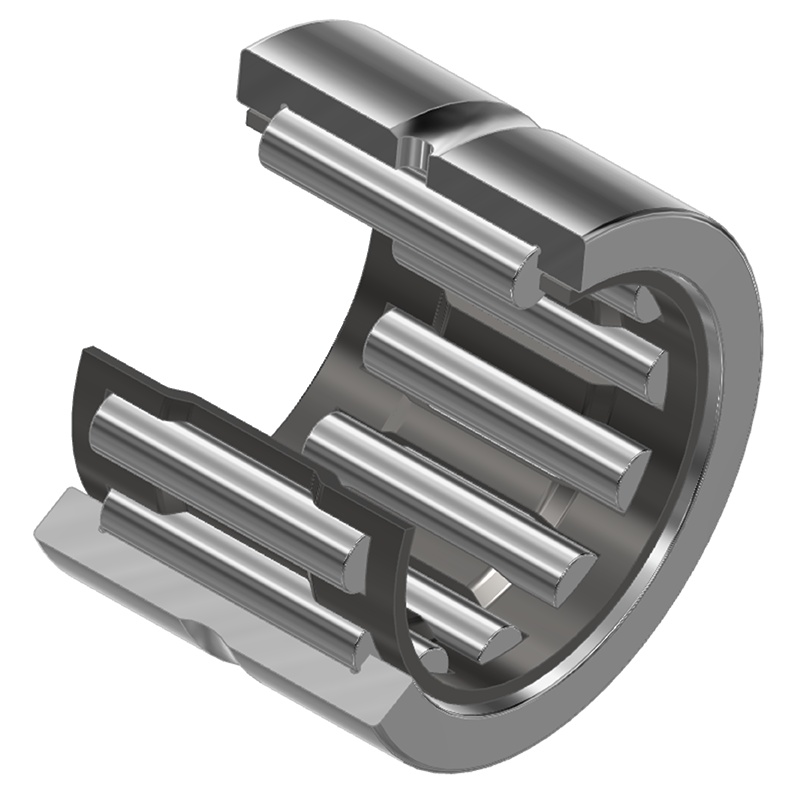

Nadellager RNA69, Abmessungen nach DIN 617-1 / ISO 1206

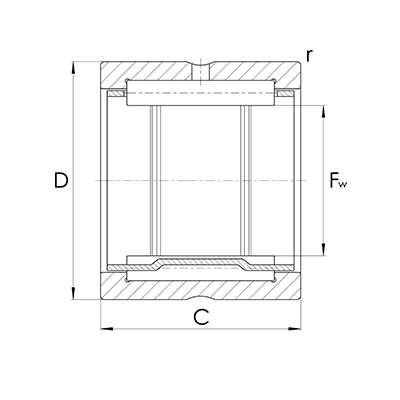

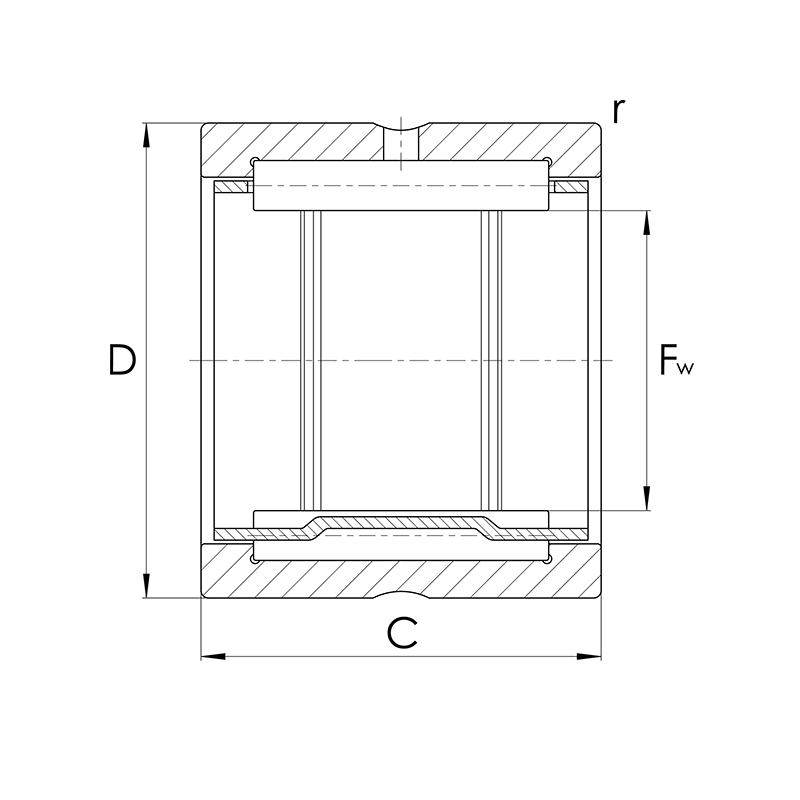

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| Fw | D | C | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| Fw | D | C | |||
| mm | mm | mm | |||
| 10041245 | RNA6901 | 16,00 | 24,00 | 22,00 | |
| 10041246 | RNA6902 | 20,00 | 28,00 | 23,00 | |
| 10041247 | RNA6903 | 22,00 | 30,00 | 23,00 | |
| 10041248 | RNA6904 | 25,00 | 37,00 | 30,00 | |
| 10041242 | RNA69/22 | 28,00 | 39,00 | 30,00 | |
| 10041249 | RNA6905 | 30,00 | 42,00 | 30,00 | |
| 10041243 | RNA69/28 | 32,00 | 45,00 | 30,00 | |
| 10041250 | RNA6906 | 35,00 | 47,00 | 30,00 | |

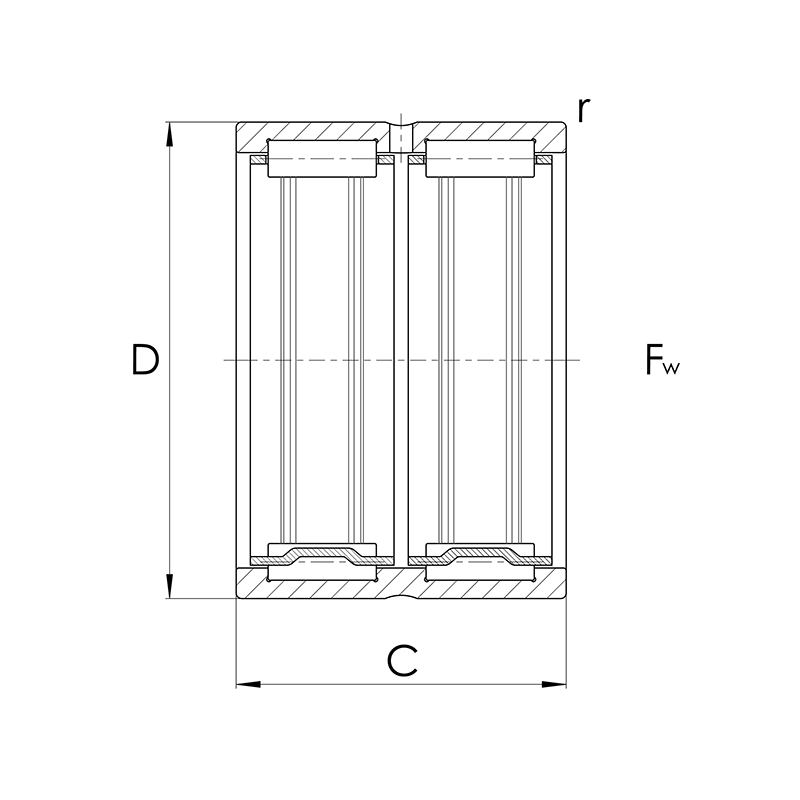

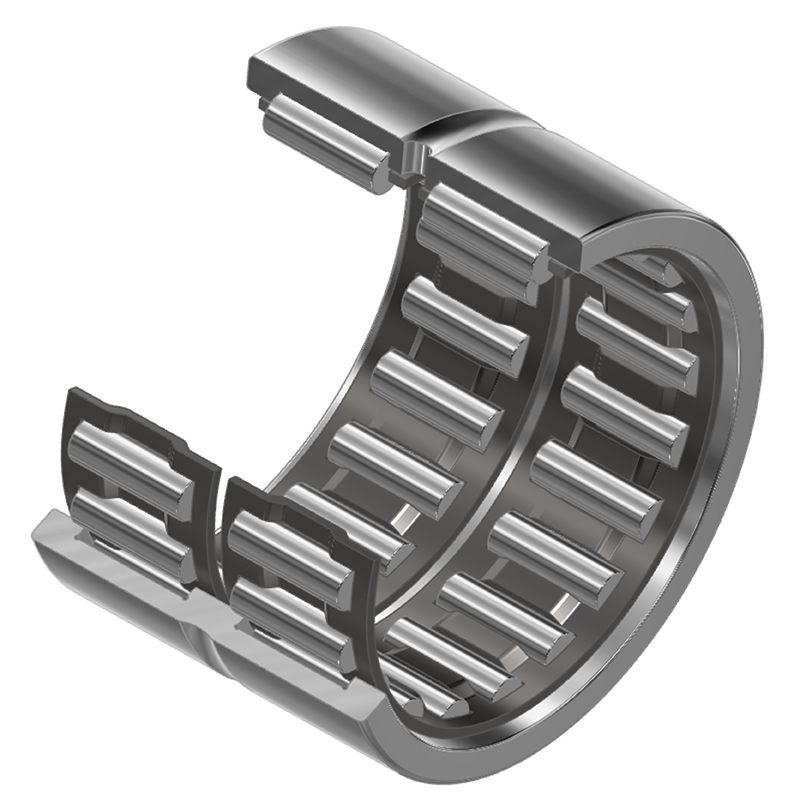

| 10041244 | RNA69/32-ZW | 40,00 | 52,00 | 36,00 | |
| 10041251 | RNA6907-ZW | 42,00 | 55,00 | 36,00 | |
| 10041252 | RNA6908-ZW | 48,00 | 62,00 | 40,00 | |
| 10041253 | RNA6909-ZW | 52,00 | 68,00 | 40,00 | |
| 10041254 | RNA6910-ZW | 58,00 | 72,00 | 40,00 | |
| 10041255 | RNA6911-ZW | 63,00 | 80,00 | 45,00 | |
| 10041256 | RNA6912-ZW | 68,00 | 85,00 | 45,00 | |
| 10041257 | RNA6913-ZW | 72,00 | 90,00 | 45,00 | |
| 10041258 | RNA6914-ZW | 80,00 | 100,00 | 54,00 | |
| 10041259 | RNA6915-ZW | 85,00 | 105,00 | 54,00 | |
| 10318401 | RNA6916-ZW | 90,00 | 110,00 | 54,00 | |
| 10041260 | RNA6917-ZW | 100,00 | 120,00 | 63,00 | |
| 10041261 | RNA6918-ZW | 105,00 | 125,00 | 63,00 | |
| 10041262 | RNA6919-ZW | 110,00 | 130,00 | 63,00 | |
