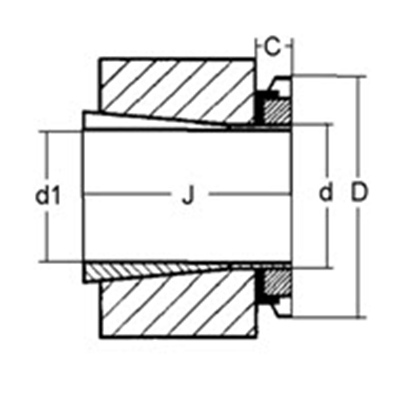

Adapter sleeve H3900 according to DIN 5415
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | d[[sub]]1[[/sub]] | J | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | d[[sub]]1[[/sub]] | J | |||
| mm | mm | mm | |||
| 10070314 | H3924 | 120.00 | 110.00 | 60.00 | |
| 10070318 | H3926 | 130.00 | 115.00 | 65.00 | |
| 10070322 | H3928 | 140.00 | 125.00 | 66.00 | |
| 10070326 | H3930 | 150.00 | 135.00 | 76.00 | |
| 10070330 | H3932 | 160.00 | 140.00 | 78.00 | |
| 10070334 | H3934 | 170.00 | 150.00 | 79.00 | |
| 10070338 | H3936 | 180.00 | 160.00 | 87.00 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
