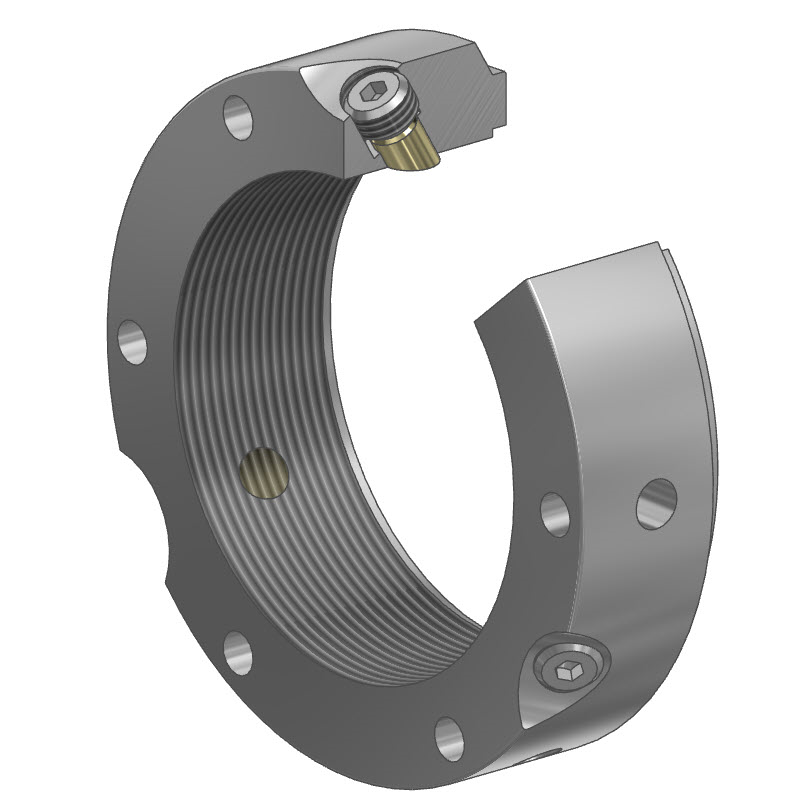

Precision groove lock nut KMTA

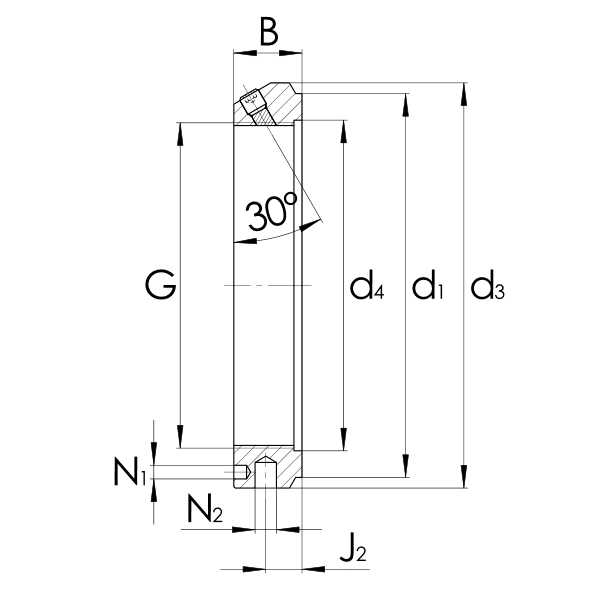

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| G | d[[sub]]1[[/sub]] | d[[sub]]3[[/sub]] | ||
| mm | mm | |||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| G | d[[sub]]1[[/sub]] | d[[sub]]3[[/sub]] | |||
| mm | mm | ||||
| 10145663 | KMTA05 | M25x1,5 | 35.00 | 42.00 | |
| 10145664 | KMTA06 | M30x1,5 | 40.00 | 48.00 | |
| 10145665 | KMTA07 | M35x1,5 | 47.00 | 53.00 | |
| 10145666 | KMTA08 | M40x1,5 | 52.00 | 58.00 | |
| 10145667 | KMTA09 | M45x1,5 | 58.00 | 68.00 | |
| 10145668 | KMTA10 | M50x1,5 | 63.00 | 70.00 | |
| 10145669 | KMTA11 | M55x1,5 | 70.00 | 75.00 | |
| 10145670 | KMTA12 | M60x1,5 | 75.00 | 84.00 | |
| 10145671 | KMTA13 | M65x1,5 | 80.00 | 88.00 | |
| 10145672 | KMTA14 | M70x1,5 | 86.00 | 95.00 | |
| 10145673 | KMTA15 | M75x1,5 | 91.00 | 100.00 | |
| 10145674 | KMTA16 | M80x2 | 97.00 | 110.00 | |
| 10145675 | KMTA17 | M85x2 | 102.00 | 115.00 | |
| 10145676 | KMTA18 | M90x2 | 110.00 | 120.00 | |
| 10145677 | KMTA19 | M95x2 | 114.00 | 125.00 | |
| 10145678 | KMTA20 | M100x2 | 120.00 | 130.00 | |
| 10145679 | KMTA22 | M110x2 | 132.00 | 140.00 | |
| 10145680 | KMTA24 | M120x2 | 142.00 | 155.00 | |
| 10145681 | KMTA26 | M130x3 | 156.00 | 165.00 | |
| 10145682 | KMTA28 | M140x3 | 166.00 | 180.00 | |
| 10145683 | KMTA30 | M150x3 | 180.00 | 190.00 | |
| 10145684 | KMTA32 | M160x3 | 190.00 | 205.00 | |
| 10145685 | KMTA34 | M170x3 | 205.00 | 215.00 | |
| 10145686 | KMTA36 | M180x3 | 215.00 | 230.00 | |
| 10145687 | KMTA38 | M190x3 | 225.00 | 240.00 | |
| 10145688 | KMTA40 | M200x3 | 237.00 | 245.00 | |
