  • BCH

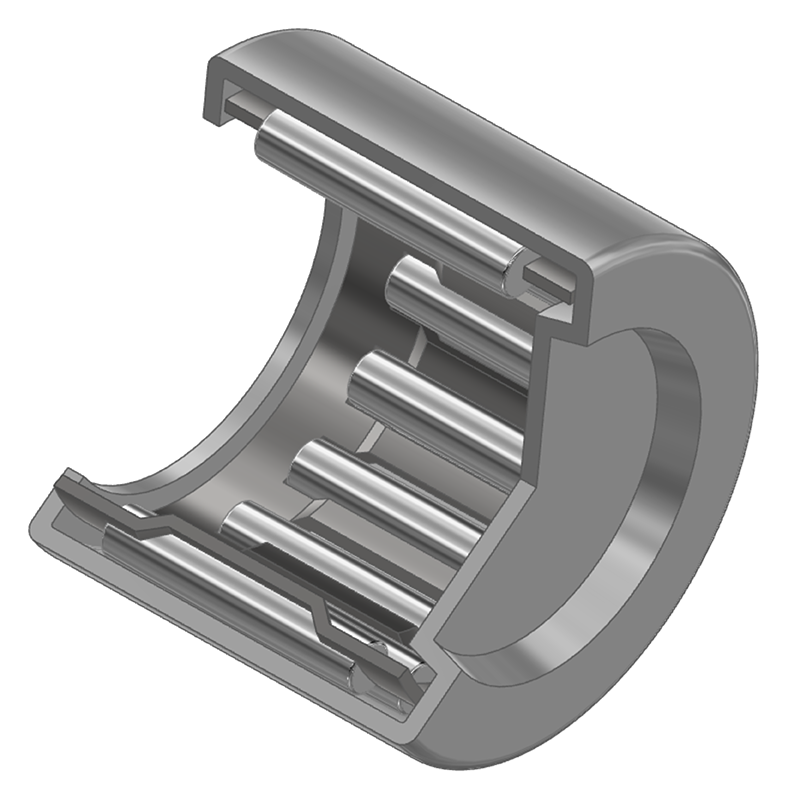

    Nadelbüchse BCH

    • Nadelbüchse BCH
      Nadelbüchse BCH
    • Nadelbüchse BCH einreihig
      Nadelbüchse BCH einreihig
      Description Main dimensions Functions
      Fw D C
      mm mm mm
      SKU Description Main dimensions Functions
      Fw D C
      mm mm mm
      10323883 BCH57 7,94 14,29 11,11
      10323885 BCH68 9,53 15,88 12,70
      10323886 BCH78 11,11 17,46 12,70
      10323891 BCH88 12,70 19,05 12,70
      10323890 BCH87 12,70 19,05 11,11
      10323889 BCH812 12,70 19,05 19,05
      10323888 BCH810 12,70 19,05 15,88
      10323896 BCH98 14,29 20,64 12,70
      10323894 BCH912 14,29 20,64 19,05
      10323892 BCH910 14,29 20,64 15,88
      10174380 BCH1012 15,88 22,23 19,05
      10323878 BCH108 15,88 22,23 12,70
      10174379 BCH1010 15,88 22,23 15,88
      10174381 BCH1016 15,88 22,23 25,40
      10174382 BCH117 17,46 23,81 11,11
      10174383 BCH1110 17,46 23,81 15,88
      10174384 BCH1112 17,46 23,81 19,05
      10174385 BCH1212 19,05 26,99 19,05
      10174386 BCH1310 20,64 28,58 15,88
      10174387 BCH1312 20,64 28,58 19,05
      10174388 BCH1412 22,23 30,16 19,05
      10174389 BCH1416 22,23 30,16 25,40
      10174390 BCH1610 25,40 33,34 15,88
      10174391 BCH1612 25,40 33,34 19,05
      10174392 BCH1616 25,40 33,34 25,40
      10174397 BCH1820 28,58 38,10 31,75
      10174396 BCH1818 28,58 38,10 28,58
      10174395 BCH1816 28,58 38,10 25,40
      10174394 BCH1812 28,58 38,10 19,05
      10174393 BCH1810 28,58 38,10 15,88
      10174401 BCH2020 31,75 41,28 31,75
      10174400 BCH2016 31,75 41,28 25,40
      10174399 BCH2012 31,75 41,28 19,05
      10174398 BCH208 31,75 41,28 12,70
      10174402 BCH2216 34,93 44,45 25,40
      10323881 BCH2212 34,93 44,45 19,05
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

    • BCH..-P

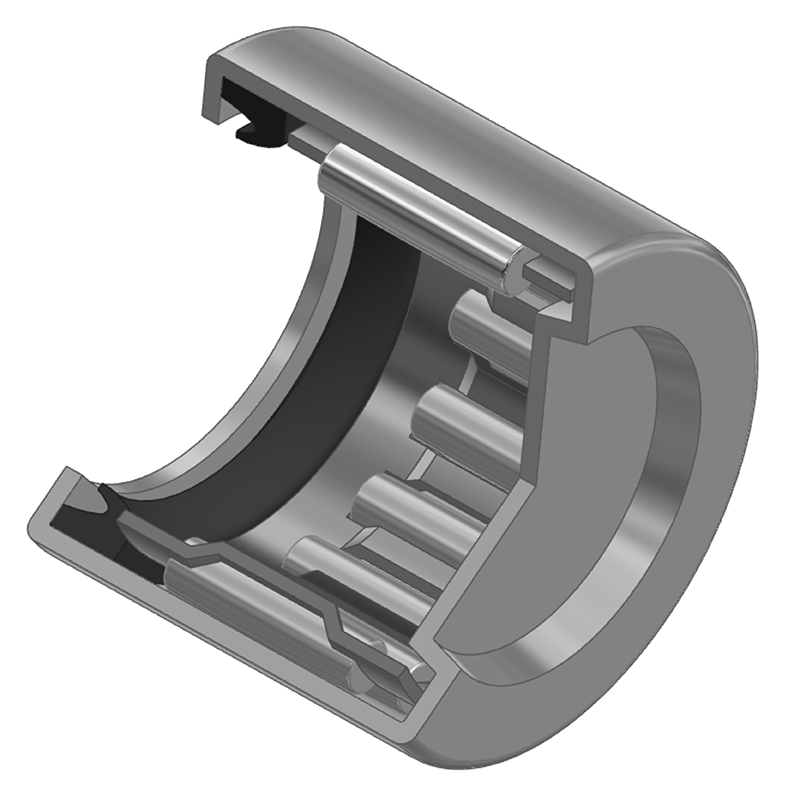

      Nadelbüchse BCH..-P

      • Nadelbüchse BCH..-P
        Nadelbüchse BCH..-P

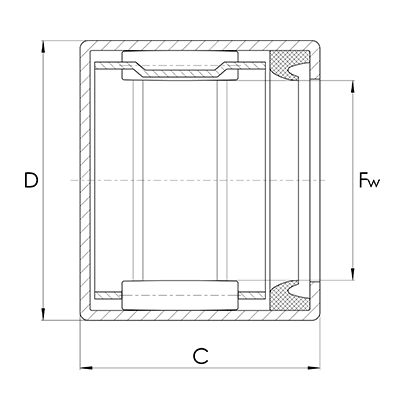

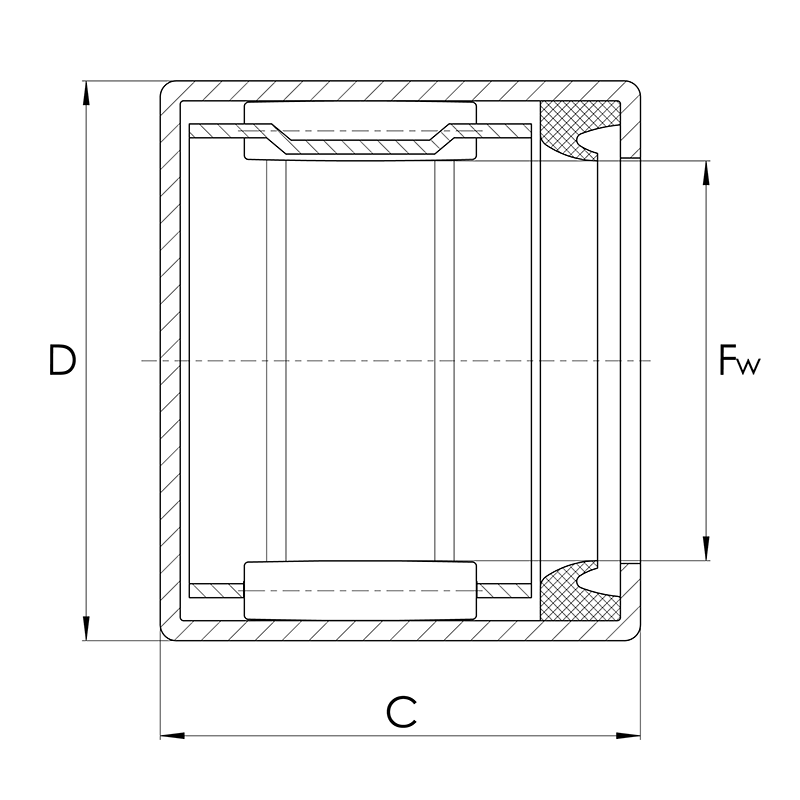

      • Nadelbüchse BCH..-P einreihig
        Nadelbüchse BCH..-P einreihig
        Description Main dimensions Functions
        Fw D C
        mm mm mm
        SKU Description Main dimensions Functions
        Fw D C
        mm mm mm
        10323884 BCH58-P 7,94 14,29 12,70
        10323887 BCH79-P 11,11 17,46 14,29
        10323893 BCH910-PR 14,29 20,64 15,88
        10323895 BCH913-P 14,29 20,64 20,64
        10323876 BCH06604-PK 17,02 23,81 17,48
        10323877 BCH06604-PR 17,02 23,81 17,48
        10323879 BCH1413-P 22,23 30,16 20,64
        10323880 BCH1614-P 25,40 33,34 22,23
        10323882 BCH2212-PV 34,93 44,45 19,05
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
