  • KR

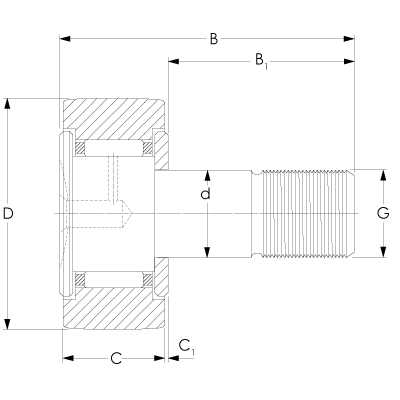

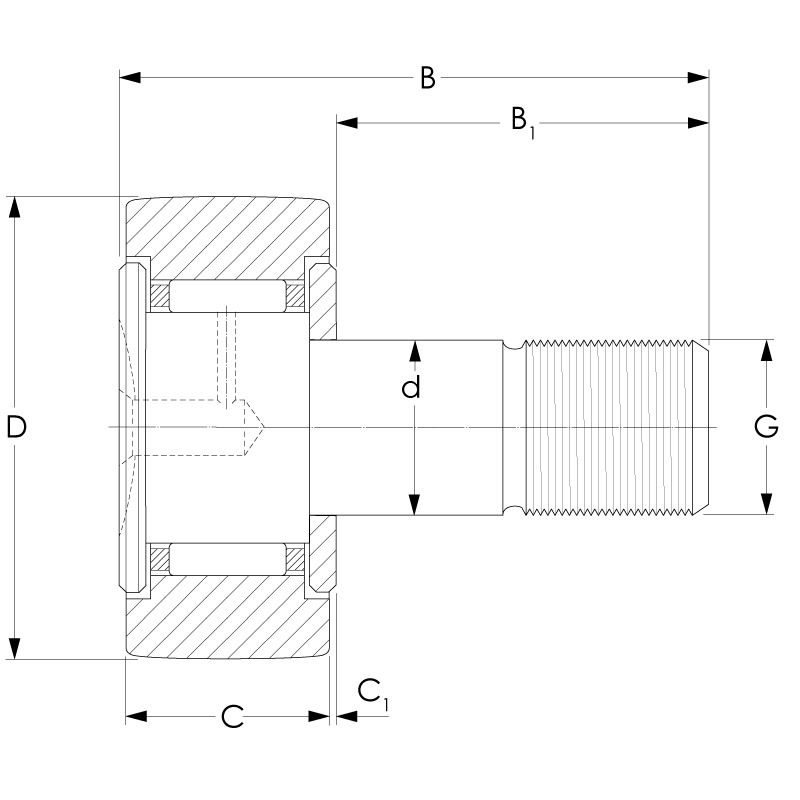

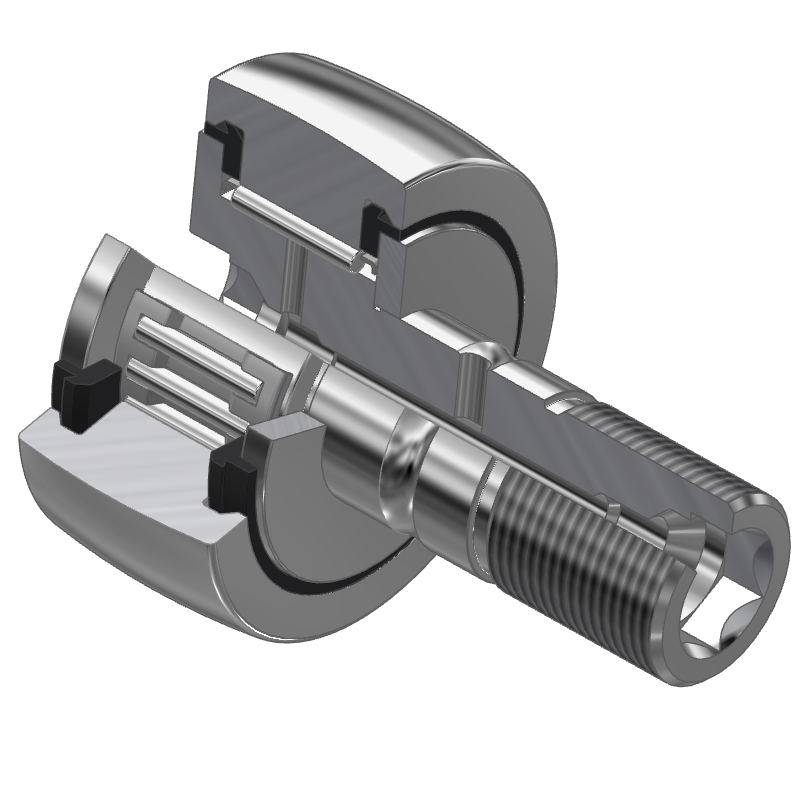

    Stud type track roller KR with axial guidance via thrust collar and thrust washer

    • crowned, with axial guidance
      crowned, with axial guidance
    • crowned, with axial guidance
      crowned, with axial guidance
      Description Main dimensions Functions
      d D B
      mm mm mm
      SKU Description Main dimensions Functions
      d D B
      mm mm mm
      10119065 KR16 6.00 16.00 28.00
      10119080 KR19 8.00 19.00 32.00
      10119095 KR22 10.00 22.00 36.00
      10119104 KR26 10.00 26.00 36.00
      10119113 KR30 12.00 30.00 40.00
      10119122 KR32 12.00 32.00 40.00
      10119131 KR35 16.00 35.00 52.00
      10119140 KR40 18.00 40.00 58.00
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

    • KR..-X-PP

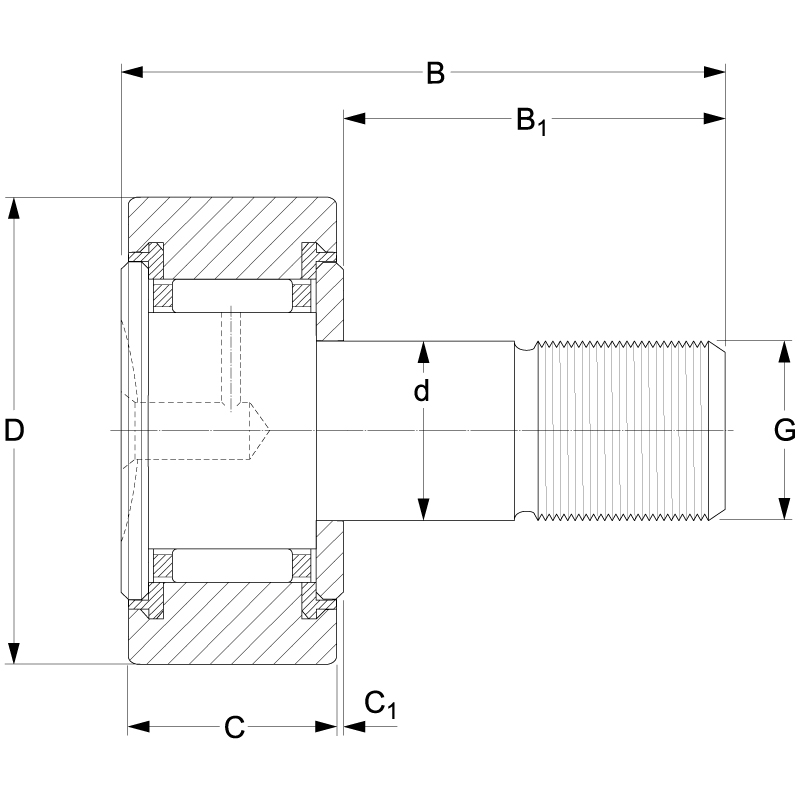

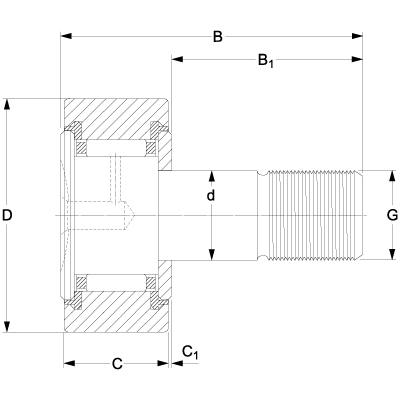

      Stud type track roller KR..-X-PP with axial guidance via thrust collar and thrust washer

      • cylindrical, with axial guidance
        cylindrical, with axial guidance
      • cylindrical, with axial guidance
        cylindrical, with axial guidance
        Description Main dimensions Functions
        d D B
        mm mm mm
        SKU Description Main dimensions Functions
        d D B
        mm mm mm
        10119074 KR16-X-PP 6.00 16.00 28.00
        10119089 KR19-X-PP 8.00 19.00 32.00
        10119101 KR22-X-PP 10.00 22.00 36.00
        10119110 KR26-X-PP 10.00 26.00 36.00
        10119119 KR30-X-PP 12.00 30.00 40.00
        10119128 KR32-X-PP 12.00 32.00 40.00
        10119137 KR35-X-PP 16.00 35.00 52.00
        10119146 KR40-X-PP 18.00 40.00 58.00
        10119152 KR47-X-PP 20.00 47.00 66.00
        10119158 KR52-X-PP 20.00 52.00 66.00
        10119164 KR62-X-PP 24.00 62.00 80.00
        10119170 KR72-X-PP 24.00 72.00 80.00
        10119176 KR80-X-PP 30.00 80.00 100.00
        10119182 KR90-X-PP 30.00 90.00 100.00
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
