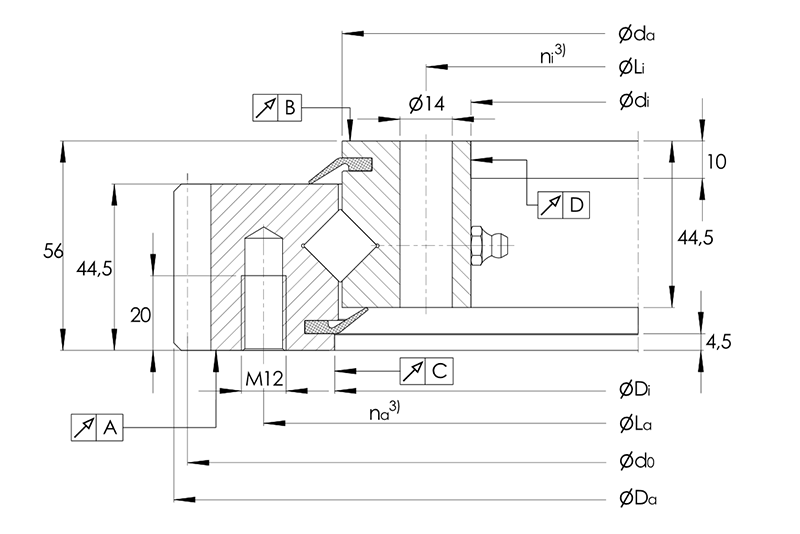

Crossed roller bearings, standard series 14, externally toothed, preloaded, sealed, grease nipple on the circumference of the toothles ring

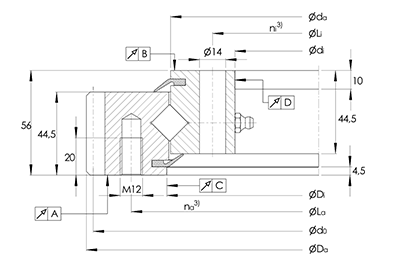

Crossed roller bearing XSA
Crossed roller bearing XSA
SKU
Description
Main dimensions
Functions
Da
da
d0
mm
mm
mm
10144644
XSA140414-N 503.30
413.00 -0.50 495.00
10144645
XSA140544-N 640.30
543.00 -0.50 630.00
10144646
XSA140644-N 742.30
643.00 -0.60 732.00
10144647
XSA140744-N 838.10
743.00 -0.60 828.00
10144648
XSA140844-N 950.10
843.00 -0.60 936.00
10144649
XSA140944-N 1,046.10
943.00 -0.70 1,032.00
10144650
XSA141094-N 1,198.10
1,093.00 -0.70 1,184.00
