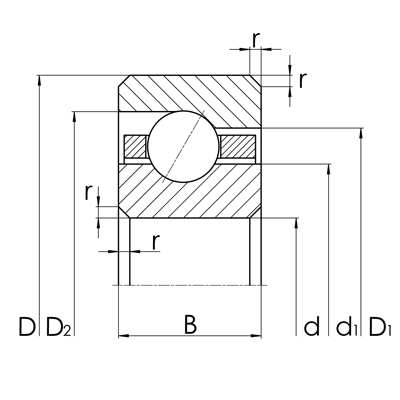

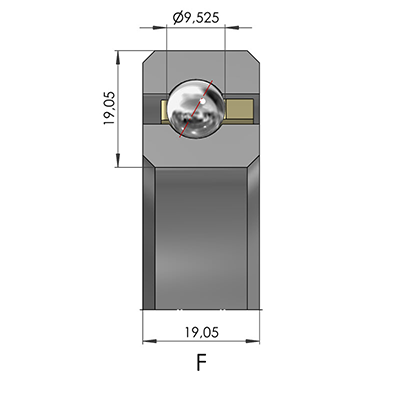

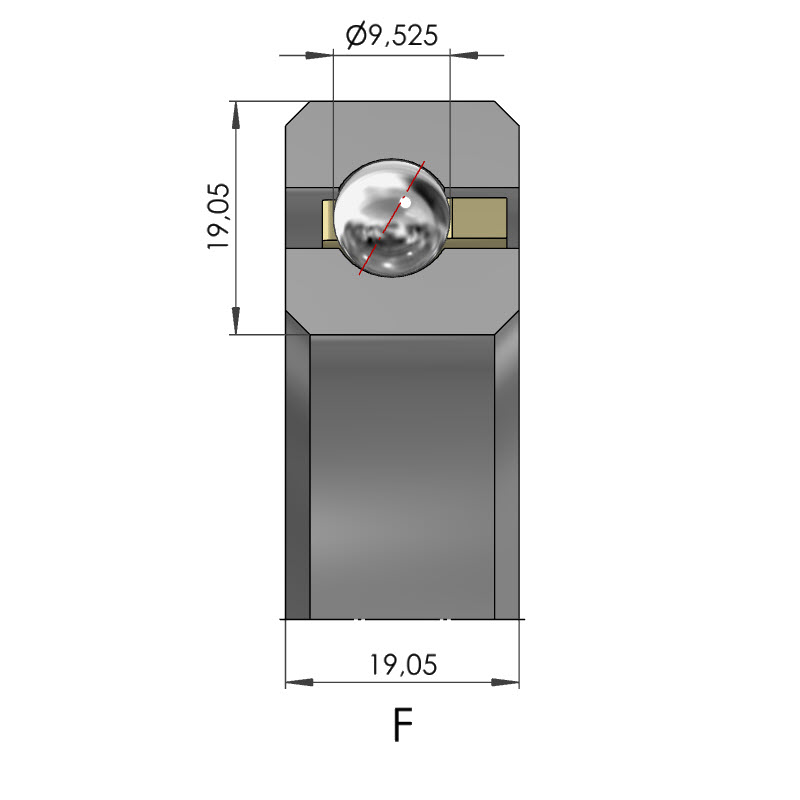

Thin section angular contact ball bearing - CSEF
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10157457 | CSEF040 | 101.60 | 139.70 | 19.05 | |
| 10157459 | CSEF042 | 107.95 | 146.05 | 19.05 | |
| 10157461 | CSEF045 | 114.30 | 152.40 | 19.05 | |
| 10157463 | CSEF047 | 120.65 | 158.75 | 19.05 | |
| 10157465 | CSEF050 | 127.00 | 165.10 | 19.05 | |
| 10147434 | CSEF055 | 139.70 | 177.80 | 19.05 | |
| 10147435 | CSEF060 | 152.40 | 190.50 | 19.05 | |
| 10147436 | CSEF065 | 165.10 | 203.20 | 19.05 | |
| 10147261 | CSEF070 | 177.80 | 215.90 | 19.05 | |
| 10147437 | CSEF075 | 190.50 | 228.60 | 19.05 | |
| 10147438 | CSEF080 | 203.20 | 241.30 | 19.05 | |
| 10147439 | CSEF090 | 228.60 | 266.70 | 19.05 | |
| 10147440 | CSEF100 | 254.00 | 292.10 | 19.05 | |
| 10147441 | CSEF110 | 279.40 | 317.50 | 19.05 | |
| 10147442 | CSEF120 | 304.80 | 342.90 | 19.05 | |
| 10157467 | CSEF140 | 355.60 | 393.70 | 19.05 | |
| 10157469 | CSEF160 | 406.40 | 444.50 | 19.05 | |
| 10157471 | CSEF180 | 457.20 | 495.30 | 19.05 | |
| 10157473 | CSEF200 | 508.00 | 546.10 | 19.05 | |
| 10157475 | CSEF250 | 635.00 | 673.10 | 19.05 | |
| 10157477 | CSEF300 | 762.00 | 800.10 | 19.05 | |
| 10157479 | CSEF350 | 889.00 | 927.10 | 19.05 | |
| 10157481 | CSEF400 | 1,016.00 | 1,054.10 | 19.05 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
