Stud type track rollers

Stud type track rollers are similar in design to single-row and double-row yoke type track rollers with axial guidance, but they have a solid roller journal with a fastening thread as a raceway. Depending on the design type, they also have a mounting aid or a lubrication option. Due to the thick-walled outer ring with profiled outer surface and the set of rolling elements, they can absorb high radial loads as well as axial loads from minor misalignments and skewing. In order to avoid edge stresses due to misalignment with the raceway, stud type track rollers are predominantly used with a crowned outer surface. with a crowned lateral surface. The crowning radius of most cam followers is 500 mm as standard. Stud type track rollers are used in cam gears, guideways, linear guide systems or conveyor systems.

Stud type track rollers - Series

Kurvenrolle KR

Stud type track roller KR

Stud type track roller with axial guidance via thrust collar and thrust washer

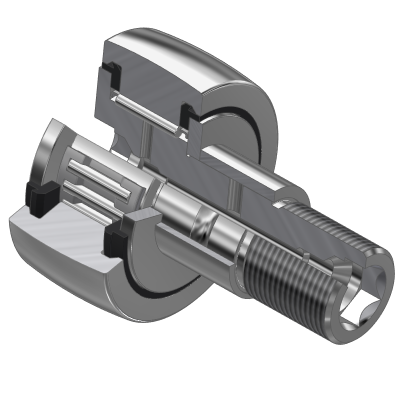

Kurvenrolle KRE

Stud type track roller KRE

Stud type track roller with axial guide, with eccentric

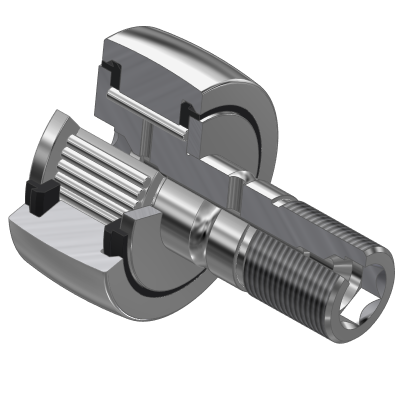

Kurvenrolle KRV

Stud type track roller KRV

Stud type track roller with axial guidance via thrust collar and thrust washer, gap seal

Kurvenrolle KRVE

Stud type track roller KRVE

Stud type track roller with axial guidance via thrust collar and thrust washer, gap seal, with eccentric

Kurvenrolle NUKR

Stud type track roller NUKR

Stud type track roller with axial guidance via bearings, full complement, labyrinth seal

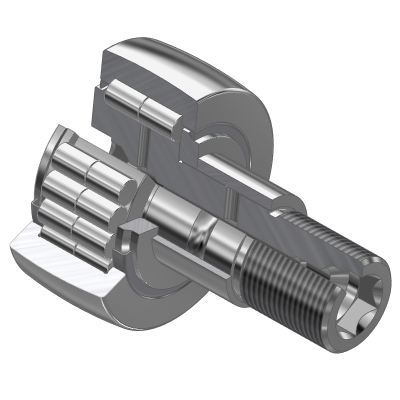

Kurvenrolle NUKRE

Stud type track Roller NUKRE

Stud type track roller with axial guidance via bearings, full complement, labyrinth seal, with eccentric

Construction features

  • Stud type track rollers KR and Stud type track rollers KR...PP

    These stud type track rollers are designed for high loads and have extended relubrication intervals thanks to large grease spaces. In sealed form (PP) they require little maintenance.

  • Stud type track rollers KRV and stud type track rollers KRVE

    These stud type track rollers have a higher load capacity than the KR series, but the permissible speeds are lower. This series absolutely needs to be lubricated.

  • Stud type track roller NUKR

    Stud type track rollers in this series can absorb high loads and, thanks to the axial guidance via the rolling elements, also high lateral forces. This series permits higher speeds than the KRV series, but does not require relubrication.

  • Operating temperatures

    All stud type track rollers are provided with lithium soap grease and can be used in a temperature range of -30°C - +100°C.
