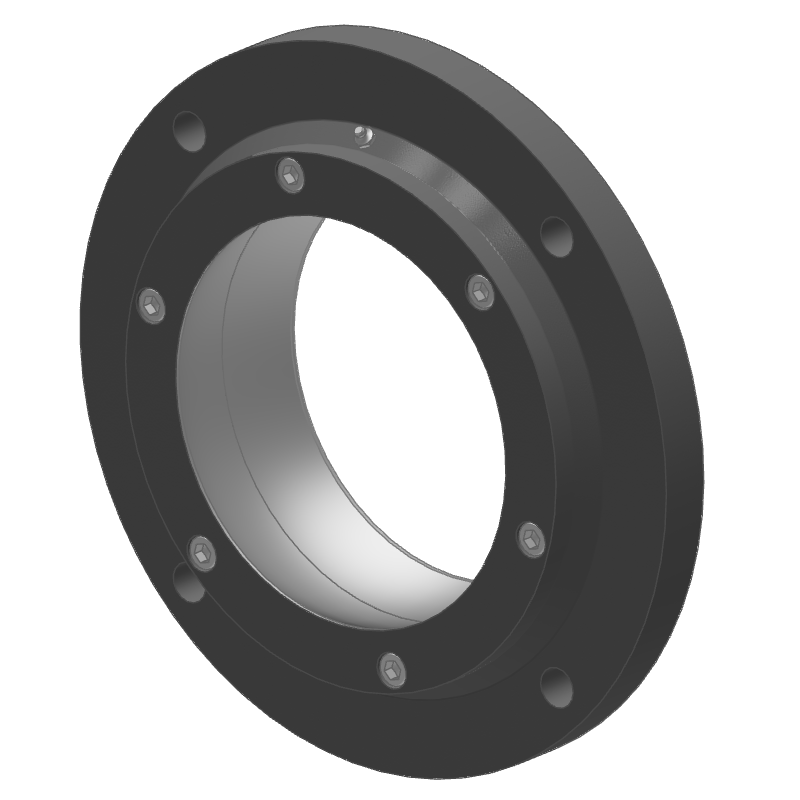

Flanschlagergehäuse FG für SL05 und SL06
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|

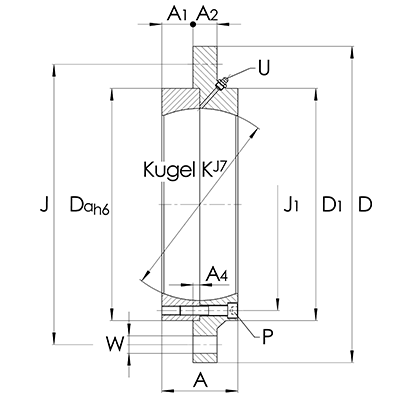

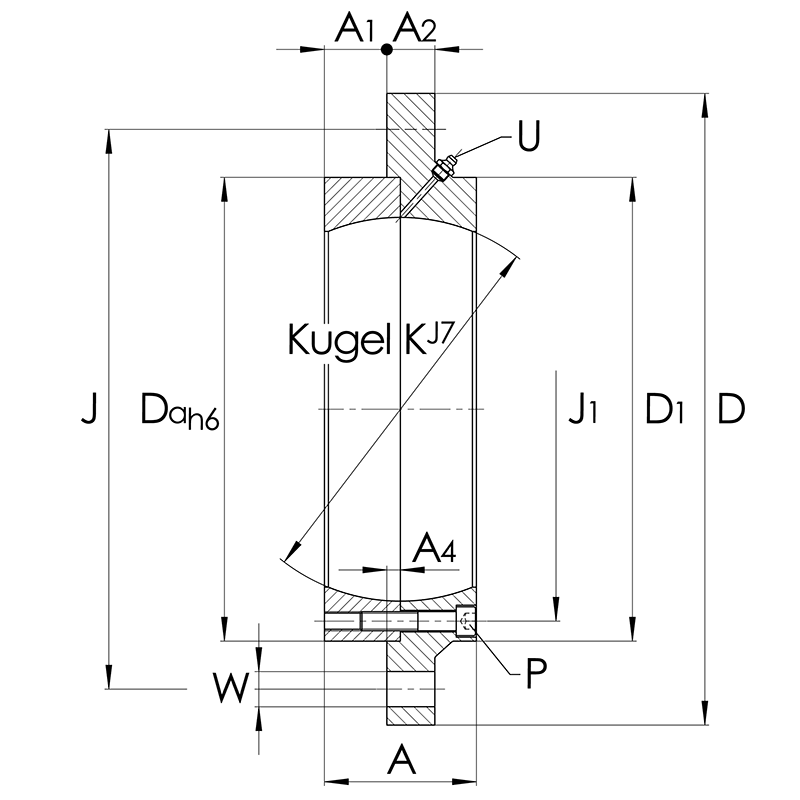

| K (Öffnungsmaß) | D | A | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| K (Öffnungsmaß) | D | A | |||
| mm | mm | mm | |||
| 10279886 | FG120 | 120,00 | 225,00 | 50,00 | |
| 10279887 | FG140 | 140,00 | 250,00 | 55,00 | |
| 10279888 | FG150 | 150,00 | 270,00 | 60,00 | |
| 10279890 | FG180 | 180,00 | 320,00 | 65,00 | |
| 10279892 | FG210 | 210,00 | 350,00 | 75,00 | |
| 10279894 | FG240 | 240,00 | 395,00 | 95,00 | |
