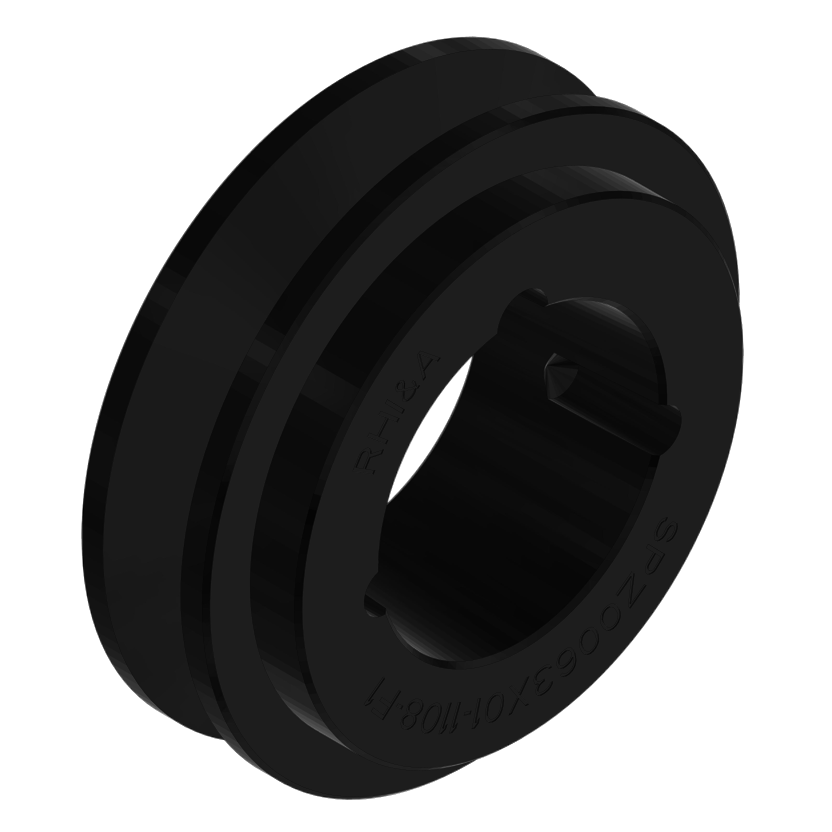

Keilriemenscheibe SPZ x 06

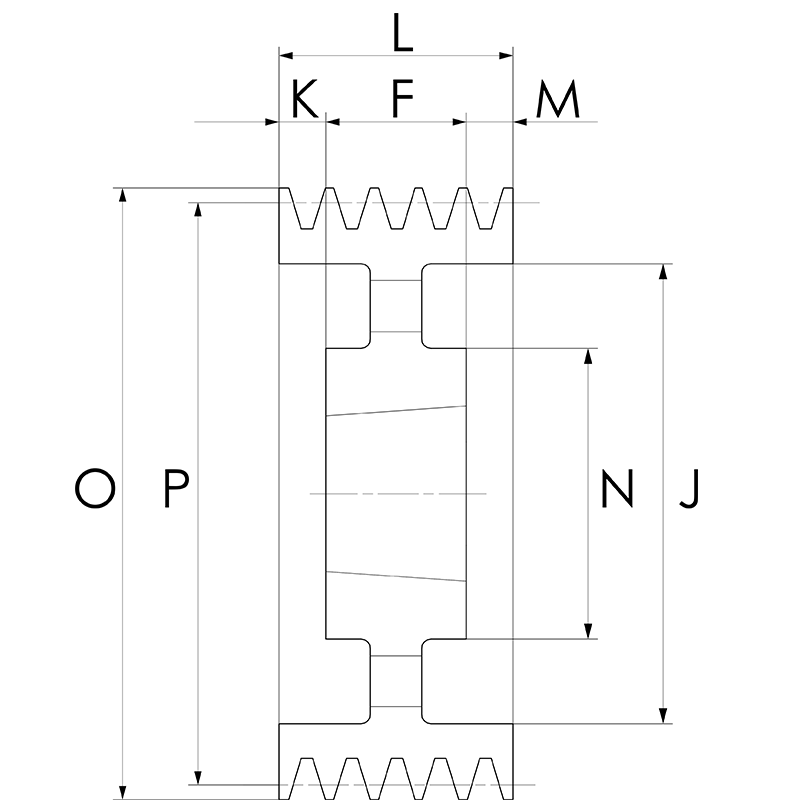

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| L | O | P | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| L | O | P | |||
| mm | mm | mm | |||
| 10141058 | SPZ0095x06-1610-F8 | 25,00 | 99,00 | 95,00 | |
| 10141057 | SPZ0090x06-1610-F8 | 25,00 | 94,00 | 90,00 | |
| 10051637 | SPZ0106x06-2012-F8 | 32,00 | 110,00 | 106,00 | |
| 10051643 | SPZ0112x06-2012-F8 | 32,00 | 116,00 | 112,00 | |
| 10051631 | SPZ0100x06-2012-F8 | 32,00 | 104,00 | 100,00 | |
| 10051709 | SPZ0200x06-2517-F3 | 45,00 | 204,00 | 200,00 | |
| 10051744 | SPZ0355x06-2517-F5 | 45,00 | 359,00 | 355,00 | |
| 10051737 | SPZ0315x06-2517-F6 | 45,00 | 319,00 | 315,00 | |
| 10051730 | SPZ0280x06-2517-F6 | 45,00 | 284,00 | 280,00 | |
| 10051723 | SPZ0250x06-2517-F6 | 45,00 | 254,00 | 250,00 | |
| 10051716 | SPZ0224x06-2517-F6 | 45,00 | 228,00 | 224,00 | |
| 10051702 | SPZ0190x06-2517-F3 | 45,00 | 194,00 | 190,00 | |
| 10051695 | SPZ0180x06-2517-F3 | 45,00 | 184,00 | 180,00 | |
| 10051688 | SPZ0170x06-2517-F2 | 45,00 | 174,00 | 170,00 | |
| 10051681 | SPZ0160x06-2517-F2 | 45,00 | 164,00 | 160,00 | |
| 10051674 | SPZ0150x06-2517-F2 | 45,00 | 154,00 | 150,00 | |
| 10051667 | SPZ0140x06-2517-F2 | 45,00 | 144,00 | 140,00 | |
| 10051661 | SPZ0132x06-2517-F8 | 45,00 | 136,00 | 132,00 | |
| 10051655 | SPZ0125x06-2517-F8 | 45,00 | 129,00 | 125,00 | |
| 10051649 | SPZ0118x06-2517-F8 | 45,00 | 122,00 | 118,00 | |
| 10051751 | SPZ0400x06-3030-F5 | 76,00 | 404,00 | 400,00 | |
| 10051758 | SPZ0450x06-3030-F5 | 76,00 | 454,00 | 450,00 | |
| 10051765 | SPZ0500x06-3030-F5 | 76,00 | 504,00 | 500,00 | |
| 10051771 | SPZ0630x06-3535-F4 | 89,00 | 634,00 | 630,00 | |
| 10141067 | SPZ0800x06-3535-F4 | 89,00 | 804,00 | 800,00 | |
