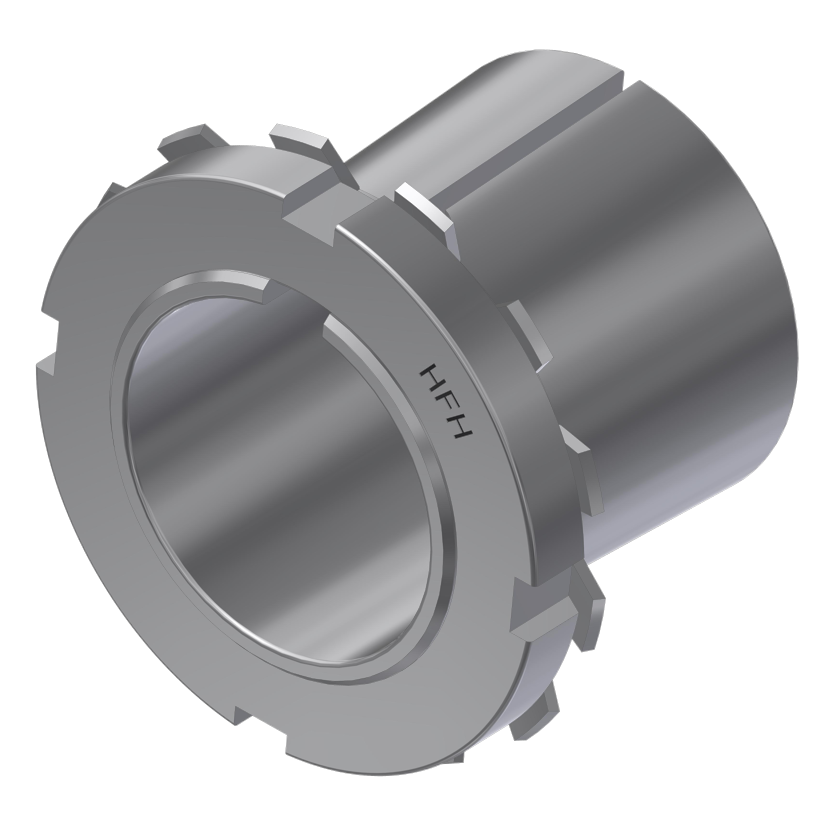

Adapter sleeve H3300 according to DIN 5415

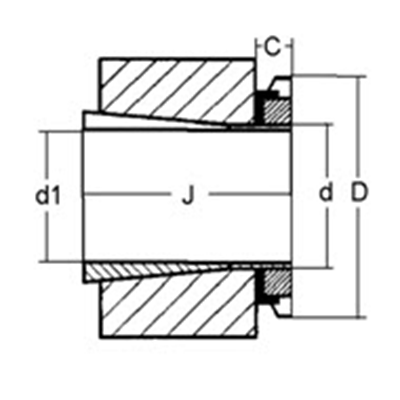

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | d[[sub]]1[[/sub]] | J | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | d[[sub]]1[[/sub]] | J | |||
| mm | mm | mm | |||
| 10070198 | H3308 | 40.00 | 35.00 | 50.00 | |
| 10070202 | H3309 | 45.00 | 40.00 | 54.00 | |
| 10070206 | H3310 | 50.00 | 45.00 | 60.00 | |
| 10070210 | H3311 | 55.00 | 50.00 | 65.00 | |
| 10070214 | H3312 | 60.00 | 55.00 | 70.00 | |
| 10070218 | H3313 | 65.00 | 60.00 | 75.00 | |
| 10070222 | H3314 | 70.00 | 65.00 | 81.00 | |
| 10070226 | H3315 | 75.00 | 65.00 | 87.00 | |
| 10070230 | H3316 | 80.00 | 75.00 | 89.00 | |
| 10070234 | H3317 | 85.00 | 75.00 | 95.00 | |
| 10070238 | H3318 | 90.00 | 85.00 | 95.00 | |
| 10070242 | H3319 | 95.00 | 90.00 | 101.00 | |
| 10070246 | H3320 | 100.00 | 90.00 | 106.00 | |
| 10070250 | H3321 | 105.00 | 100.00 | 111.00 | |
| 10070254 | H3322 | 110.00 | 100.00 | 117.00 | |
| 10070258 | H3324 | 120.00 | 110.00 | 132.00 | |
| 10070262 | H3326 | 130.00 | 115.00 | 139.00 | |
| 10070266 | H3328 | 140.00 | 125.00 | 147.00 | |
| 10070270 | H3330 | 150.00 | 135.00 | 159.00 | |
| 10070274 | H3332 | 160.00 | 140.00 | 170.00 | |
| 10070278 | H3334 | 170.00 | 150.00 | 175.00 | |
| 10070282 | H3336 | 180.00 | 160.00 | 186.00 | |
| 10070286 | H3338 | 190.00 | 170.00 | 193.00 | |
| 10070290 | H3340 | 200.00 | 180.00 | 204.00 | |
| 10070294 | H3344 | 220.00 | 200.00 | 223.00 | |
| 10070298 | H3348 | 240.00 | 220.00 | 240.00 | |
| 10070302 | H3352 | 260.00 | 240.00 | 253.00 | |
| 10070306 | H3356 | 280.00 | 260.00 | 273.00 | |
| 10070310 | H3360 | 300.00 | 280.00 | 284.00 | |
