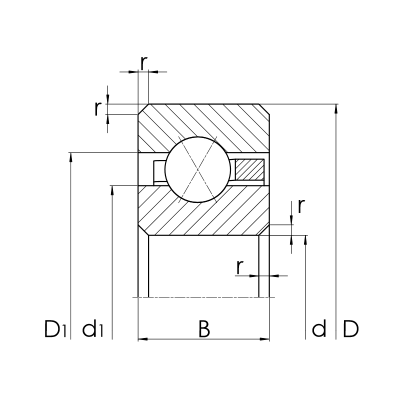

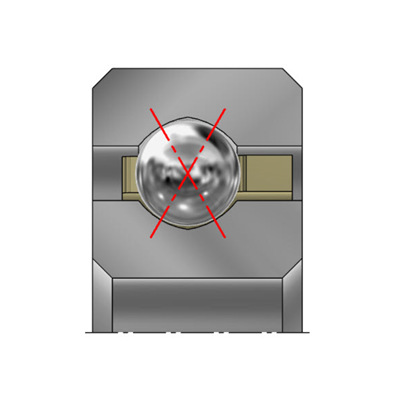

Thin section four-point contact bearing - 13 mm
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10229470 | K02513XP0 | 25.00 | 51.00 | 13.00 | |
| 10229471 | K05013XP0 | 50.00 | 76.00 | 13.00 | |
| 10229472 | K06013XP0 | 60.00 | 86.00 | 13.00 | |
| 10229473 | K07013XP0 | 70.00 | 96.00 | 13.00 | |
| 10229474 | K08013XP0 | 80.00 | 106.00 | 13.00 | |
| 10229475 | K09013XP0 | 90.00 | 116.00 | 13.00 | |
| 10229476 | K10013XP0 | 100.00 | 126.00 | 13.00 | |
| 10229477 | K11013XP0 | 110.00 | 136.00 | 13.00 | |
| 10229478 | K12013XP0 | 120.00 | 146.00 | 13.00 | |
| 10229479 | K13013XP0 | 130.00 | 156.00 | 13.00 | |
| 10229480 | K14013XP0 | 140.00 | 166.00 | 13.00 | |
| 10229481 | K15013XP0 | 150.00 | 176.00 | 13.00 | |
| 10229482 | K16013XP0 | 160.00 | 186.00 | 13.00 | |
| 10229483 | K17013XP0 | 170.00 | 196.00 | 13.00 | |
| 10229484 | K18013XP0 | 180.00 | 206.00 | 13.00 | |
| 10229485 | K19013XP0 | 190.00 | 216.00 | 13.00 | |
| 10229486 | K20013XP0 | 200.00 | 226.00 | 13.00 | |
| 10229487 | K25013XP0 | 250.00 | 276.00 | 13.00 | |
| 10229488 | K30013XP0 | 300.00 | 326.00 | 13.00 | |
| 10229489 | K32013XP0 | 320.00 | 346.00 | 13.00 | |
| 10229490 | K34013XP0 | 340.00 | 366.00 | 13.00 | |
| 10229491 | K36013XP0 | 360.00 | 386.00 | 13.00 | |
