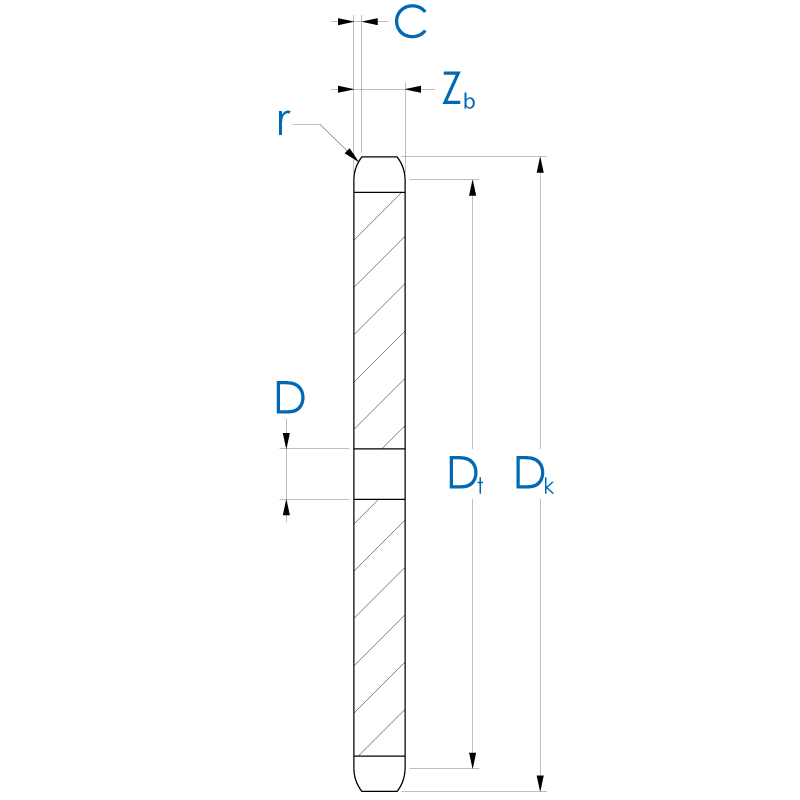

KRS12B-1
Kettenradscheibe 12B ähnlich DIN 8192, für Rollenkette 12B nach DIN 8187 ISO/R 606
Description Main dimensions Functions z Dk Dt mm mm SKU Description Main dimensions Functions z Dk Dt mm mm 10048243 KRS12B-1-Z008 8 57,60 49,78 10048244 KRS12B-1-Z009 9 62,00 55,70 10048245 KRS12B-1-Z010 10 69,00 61,64 10048246 KRS12B-1-Z011 11 75,00 67,61 10048247 KRS12B-1-Z012 12 81,50 73,60 10048248 KRS12B-1-Z013 13 87,50 79,59 10048249 KRS12B-1-Z014 14 93,60 85,61 10048250 KRS12B-1-Z015 15 99,80 91,63 10048251 KRS12B-1-Z016 16 105,50 97,65 10048252 KRS12B-1-Z017 17 111,50 103,67 10048253 KRS12B-1-Z018 18 118,00 109,71 10048254 KRS12B-1-Z019 19 124,20 115,75 10048255 KRS12B-1-Z020 20 129,70 121,78 10048256 KRS12B-1-Z021 21 136,00 127,82 10048257 KRS12B-1-Z022 22 141,80 133,86 10048258 KRS12B-1-Z023 23 149,00 139,90 10048259 KRS12B-1-Z024 24 153,90 145,94 10048260 KRS12B-1-Z025 25 160,00 152,00 10048261 KRS12B-1-Z026 26 165,90 158,04 10048262 KRS12B-1-Z027 27 172,30 164,09 10048263 KRS12B-1-Z028 28 178,00 170,13 10048264 KRS12B-1-Z029 29 184,10 176,19 10048265 KRS12B-1-Z030 30 190,50 182,25 10048266 KRS12B-1-Z031 31 196,30 188,31 10048267 KRS12B-1-Z032 32 203,30 194,35 10048268 KRS12B-1-Z033 33 209,30 200,40 10048269 KRS12B-1-Z034 34 214,60 206,46 10048270 KRS12B-1-Z035 35 221,00 212,52 10048271 KRS12B-1-Z036 36 226,80 218,58 10048272 KRS12B-1-Z037 37 232,90 224,64 10048273 KRS12B-1-Z038 38 239,00 230,69 10048274 KRS12B-1-Z039 39 245,10 236,75 10048275 KRS12B-1-Z040 40 251,30 242,81 10048277 KRS12B-1-Z042 42 264,50 254,93 10048280 KRS12B-1-Z045 45 282,50 273,10 10048281 KRS12B-1-Z046 46 287,90 279,16 10048283 KRS12B-1-Z048 48 300,10 291,27 10048285 KRS12B-1-Z050 50 312,30 303,39 10048290 KRS12B-1-Z055 55 342,70 333,70 10048292 KRS12B-1-Z057 57 355,40 345,81 10048294 KRS12B-1-Z059 59 367,50 357,93 10048295 KRS12B-1-Z060 60 373,00 363,99 10048296 KRS12B-1-Z062 62 385,10 376,12 10048297 KRS12B-1-Z064 64 397,20 388,24 10048298 KRS12B-1-Z065 65 403,20 394,29 10048299 KRS12B-1-Z066 66 409,20 400,35 10048300 KRS12B-1-Z068 68 421,40 412,49 10048303 KRS12B-1-Z075 75 463,90 454,91 10048304 KRS12B-1-Z076 76 469,90 460,99 10048305 KRS12B-1-Z078 78 482,10 473,10 10048306 KRS12B-1-Z080 80 494,20 485,22 10048307 KRS12B-1-Z085 85 524,50 515,55 10048308 KRS12B-1-Z090 90 554,80 545,86 10048309 KRS12B-1-Z095 95 585,10 576,17 10048310 KRS12B-1-Z100 100 615,40 606,47 10048311 KRS12B-1-Z110 110 676,10 667,11 10048313 KRS12B-1-Z120 120 736,70 727,74 10048314 KRS12B-1-Z125 125 767,00 758,05 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -

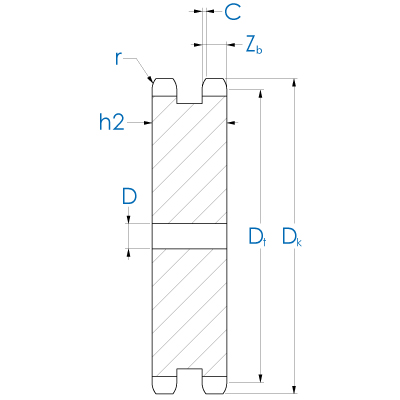

KRS12B-2
Kettenradscheibe 12B ähnlich DIN 8192, für Rollenkette 12B nach DIN 8187 ISO/R 606
Description Main dimensions Functions z Dk Dt mm mm SKU Description Main dimensions Functions z Dk Dt mm mm 10048315 KRS12B-2-Z008 8 57,60 49,78 10048316 KRS12B-2-Z009 9 62,00 55,70 10048317 KRS12B-2-Z010 10 69,00 61,64 10048318 KRS12B-2-Z011 11 75,00 67,61 10048319 KRS12B-2-Z012 12 81,50 73,60 10048320 KRS12B-2-Z013 13 87,50 79,59 10048321 KRS12B-2-Z014 14 93,60 85,61 10048322 KRS12B-2-Z015 15 99,80 91,63 10048323 KRS12B-2-Z016 16 105,50 97,65 10048324 KRS12B-2-Z017 17 111,50 103,67 10048325 KRS12B-2-Z018 18 118,00 109,71 10048326 KRS12B-2-Z019 19 124,20 115,75 10048327 KRS12B-2-Z020 20 129,70 121,78 10048328 KRS12B-2-Z021 21 136,00 127,82 10048329 KRS12B-2-Z022 22 141,80 133,86 10048330 KRS12B-2-Z023 23 149,00 139,90 10048331 KRS12B-2-Z024 24 153,90 145,94 10048332 KRS12B-2-Z025 25 160,00 152,00 10048333 KRS12B-2-Z026 26 165,90 158,04 10048334 KRS12B-2-Z027 27 172,30 164,09 10048335 KRS12B-2-Z028 28 178,00 170,13 10048336 KRS12B-2-Z029 29 184,10 176,19 10048337 KRS12B-2-Z030 30 190,50 182,25 10048338 KRS12B-2-Z031 31 196,30 188,31 10048339 KRS12B-2-Z032 32 203,30 194,35 10048340 KRS12B-2-Z033 33 209,30 200,40 10048341 KRS12B-2-Z034 34 214,60 206,46 10048342 KRS12B-2-Z035 35 221,00 212,52 10048343 KRS12B-2-Z036 36 226,80 218,58 10048344 KRS12B-2-Z037 37 232,90 224,64 10048345 KRS12B-2-Z038 38 239,00 230,69 10048346 KRS12B-2-Z039 39 245,10 236,75 10048347 KRS12B-2-Z040 40 251,30 242,81 10048348 KRS12B-2-Z041 41 257,30 248,87 10048349 KRS12B-2-Z042 42 264,50 254,93 10048350 KRS12B-2-Z043 43 270,50 260,98 10048351 KRS12B-2-Z044 44 276,50 267,03 10048352 KRS12B-2-Z045 45 282,50 273,10 10048353 KRS12B-2-Z046 46 287,90 279,16 10048354 KRS12B-2-Z047 47 294,00 285,21 10048355 KRS12B-2-Z048 48 300,10 291,27 10048356 KRS12B-2-Z049 49 306,20 297,33 10048357 KRS12B-2-Z050 50 312,30 303,39 10048358 KRS12B-2-Z051 51 318,40 309,45 10048359 KRS12B-2-Z052 52 324,50 315,50 10048360 KRS12B-2-Z053 53 330,50 321,56 10048361 KRS12B-2-Z054 54 336,60 327,64 10048362 KRS12B-2-Z055 55 342,70 333,70 10048363 KRS12B-2-Z056 56 348,70 339,75 10048364 KRS12B-2-Z057 57 355,40 345,81 10048365 KRS12B-2-Z058 58 361,50 351,87 10048366 KRS12B-2-Z059 59 367,50 357,93 10048367 KRS12B-2-Z060 60 373,00 363,99 10048368 KRS12B-2-Z062 62 385,10 376,12 10048369 KRS12B-2-Z064 64 397,20 388,24 10048370 KRS12B-2-Z065 65 403,20 394,29 10048371 KRS12B-2-Z066 66 409,20 400,35 10048372 KRS12B-2-Z068 68 421,40 412,49 10048373 KRS12B-2-Z070 70 433,60 424,60 10048374 KRS12B-2-Z072 72 447,00 436,74 10048375 KRS12B-2-Z075 75 463,90 454,91 10048376 KRS12B-2-Z076 76 469,90 460,99 10048377 KRS12B-2-Z078 78 482,10 473,10 10048378 KRS12B-2-Z080 80 494,20 485,22 10048379 KRS12B-2-Z085 85 524,50 515,55 10048380 KRS12B-2-Z090 90 554,80 545,86 10048381 KRS12B-2-Z095 95 585,10 576,17 10048382 KRS12B-2-Z100 100 615,40 606,47 10048383 KRS12B-2-Z110 110 676,10 667,11 10048385 KRS12B-2-Z120 120 736,70 727,74 10048386 KRS12B-2-Z125 125 767,00 758,05 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -

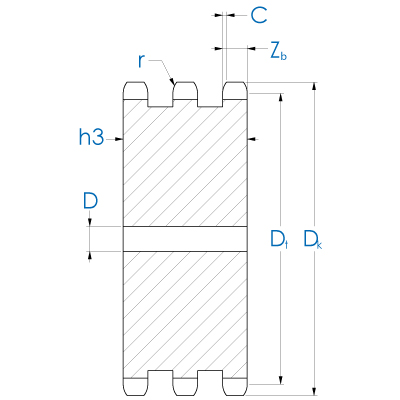

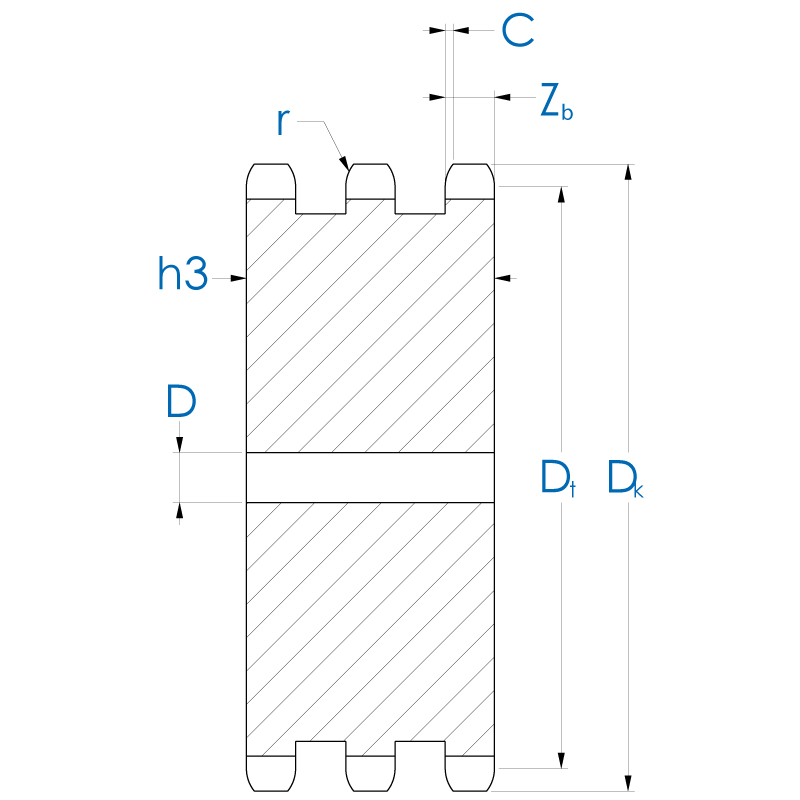

KRS12B-3
Kettenradscheibe 12B ähnlich DIN 8192, für Rollenkette 12B nach DIN 8187 ISO/R 606
Description Main dimensions Functions z Dk Dt mm mm SKU Description Main dimensions Functions z Dk Dt mm mm 10048387 KRS12B-3-Z008 8 57,60 49,78 10048388 KRS12B-3-Z009 9 62,00 55,70 10048389 KRS12B-3-Z010 10 69,00 61,64 10048390 KRS12B-3-Z011 11 75,00 67,61 10048391 KRS12B-3-Z012 12 81,50 73,60 10048392 KRS12B-3-Z013 13 87,50 79,59 10048393 KRS12B-3-Z014 14 93,60 85,61 10048394 KRS12B-3-Z015 15 99,80 91,63 10048395 KRS12B-3-Z016 16 105,50 97,65 10048396 KRS12B-3-Z017 17 111,50 103,67 10048397 KRS12B-3-Z018 18 118,00 109,71 10048398 KRS12B-3-Z019 19 124,20 115,75 10048399 KRS12B-3-Z020 20 129,70 121,78 10048400 KRS12B-3-Z021 21 136,00 127,82 10048401 KRS12B-3-Z022 22 141,80 133,86 10048402 KRS12B-3-Z023 23 149,00 139,90 10048403 KRS12B-3-Z024 24 153,90 145,94 10048404 KRS12B-3-Z025 25 160,00 152,00 10048405 KRS12B-3-Z026 26 165,90 158,04 10048406 KRS12B-3-Z027 27 172,30 164,09 10048407 KRS12B-3-Z028 28 178,00 170,13 10048408 KRS12B-3-Z029 29 184,10 176,19 10048409 KRS12B-3-Z030 30 190,50 182,25 10048410 KRS12B-3-Z031 31 196,30 188,31 10048411 KRS12B-3-Z032 32 203,30 194,35 10048412 KRS12B-3-Z033 33 209,30 200,40 10048413 KRS12B-3-Z034 34 214,60 206,46 10048414 KRS12B-3-Z035 35 221,00 212,52 10048415 KRS12B-3-Z036 36 226,80 218,58 10048416 KRS12B-3-Z037 37 232,90 224,64 10048417 KRS12B-3-Z038 38 239,00 230,69 10048418 KRS12B-3-Z039 39 245,10 236,75 10048419 KRS12B-3-Z040 40 251,30 242,81 10048420 KRS12B-3-Z041 41 257,30 248,87 10048421 KRS12B-3-Z042 42 264,50 254,93 10048422 KRS12B-3-Z043 43 270,50 260,98 10048423 KRS12B-3-Z044 44 276,50 267,03 10048424 KRS12B-3-Z045 45 282,50 273,10 10048425 KRS12B-3-Z046 46 287,90 279,16 10048426 KRS12B-3-Z047 47 294,00 285,21 10048427 KRS12B-3-Z048 48 300,10 291,27 10048428 KRS12B-3-Z049 49 306,20 297,33 10048429 KRS12B-3-Z050 50 312,30 303,39 10048430 KRS12B-3-Z051 51 318,40 309,45 10048431 KRS12B-3-Z052 52 324,50 315,50 10048432 KRS12B-3-Z053 53 330,50 321,56 10048433 KRS12B-3-Z054 54 336,60 327,64 10048434 KRS12B-3-Z055 55 342,70 333,70 10048435 KRS12B-3-Z056 56 348,70 339,75 10048436 KRS12B-3-Z057 57 355,40 345,81 10048437 KRS12B-3-Z058 58 361,50 351,87 10048438 KRS12B-3-Z059 59 367,50 357,93 10048439 KRS12B-3-Z060 60 373,00 363,99 10048440 KRS12B-3-Z062 62 385,10 376,12 10048441 KRS12B-3-Z064 64 397,20 388,24 10048442 KRS12B-3-Z065 65 403,20 394,29 10048443 KRS12B-3-Z066 66 409,20 400,35 10048444 KRS12B-3-Z068 68 421,40 412,49 10048445 KRS12B-3-Z070 70 433,60 424,60 10048446 KRS12B-3-Z072 72 447,00 436,74 10048447 KRS12B-3-Z075 75 463,90 454,91 10048448 KRS12B-3-Z076 76 469,90 460,99 10048449 KRS12B-3-Z078 78 482,10 473,10 10048450 KRS12B-3-Z080 80 494,20 485,22 10048451 KRS12B-3-Z085 85 524,50 515,55 10048452 KRS12B-3-Z090 90 554,80 545,86 10048453 KRS12B-3-Z095 95 585,10 576,17 10048454 KRS12B-3-Z100 100 615,40 606,47 10048455 KRS12B-3-Z110 110 676,10 667,11 10048457 KRS12B-3-Z120 120 736,70 727,74 10048458 KRS12B-3-Z125 125 767,00 758,05 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
