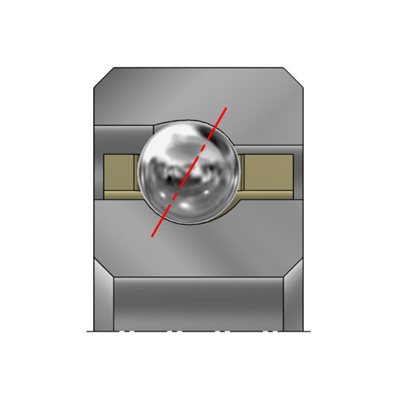

Thin section angular contact ball bearing - 13 mm

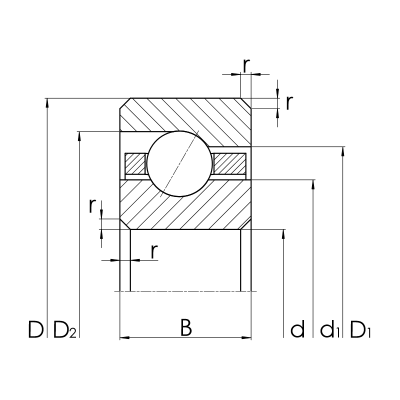

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10229310 | K02513AR0 | 25.00 | 51.00 | 13.00 | |
| 10229311 | K05013AR0 | 50.00 | 76.00 | 13.00 | |
| 10229312 | K06013AR0 | 60.00 | 86.00 | 13.00 | |
| 10229313 | K07013AR0 | 70.00 | 96.00 | 13.00 | |
| 10229314 | K08013AR0 | 80.00 | 106.00 | 13.00 | |
| 10229315 | K09013AR0 | 90.00 | 116.00 | 13.00 | |
| 10229316 | K10013AR0 | 100.00 | 126.00 | 13.00 | |
| 10229317 | K11013AR0 | 110.00 | 136.00 | 13.00 | |
| 10229318 | K12013AR0 | 120.00 | 146.00 | 13.00 | |
| 10229319 | K13013AR0 | 130.00 | 156.00 | 13.00 | |
| 10229320 | K14013AR0 | 140.00 | 166.00 | 13.00 | |
| 10229321 | K15013AR0 | 150.00 | 176.00 | 13.00 | |
| 10229322 | K16013AR0 | 160.00 | 186.00 | 13.00 | |
| 10229323 | K17013AR0 | 170.00 | 196.00 | 13.00 | |
| 10229324 | K18013AR0 | 180.00 | 206.00 | 13.00 | |
| 10229325 | K19013AR0 | 190.00 | 216.00 | 13.00 | |
| 10229326 | K20013AR0 | 200.00 | 226.00 | 13.00 | |
| 10229327 | K25013AR0 | 250.00 | 276.00 | 13.00 | |
| 10229328 | K30013AR0 | 300.00 | 326.00 | 13.00 | |
| 10229329 | K32013AR0 | 320.00 | 346.00 | 13.00 | |
| 10229330 | K34013AR0 | 340.00 | 366.00 | 13.00 | |
| 10229331 | K36013AR0 | 360.00 | 386.00 | 13.00 | |
