  • 22200 / 22200K

    Speherical roller bearing 222, DIN 635-2, DIN 616 ISO 15:1998

    • Speherical roller bearing 222
      Speherical roller bearing 222
    • Speherical roller bearing 222 cylindrical
      Speherical roller bearing 222 cylindrical
    • Speherical roller bearing 222 conical
      Speherical roller bearing 222 conical
      Description Main dimensions Functions

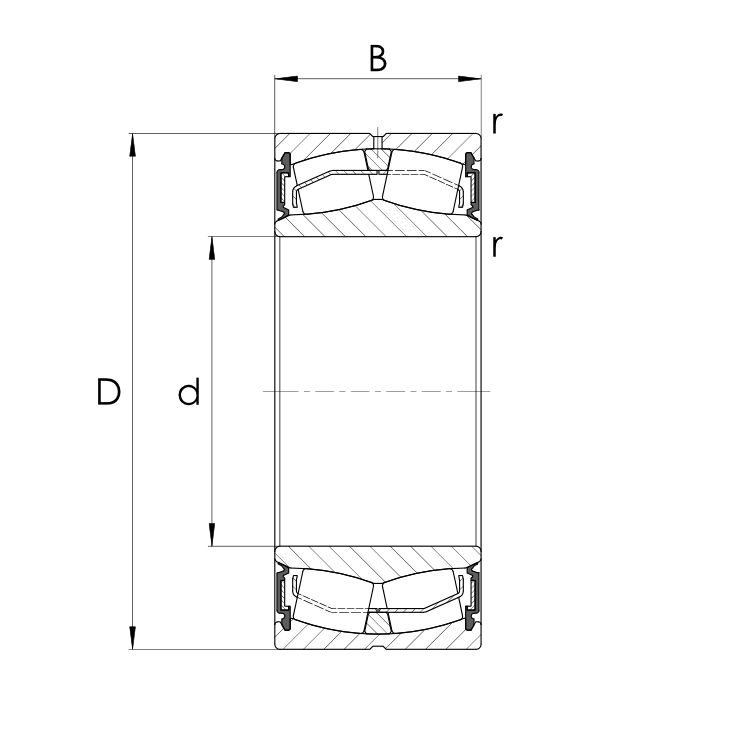

      d D B
      mm mm mm
      SKU Description Main dimensions Functions
      d D B
      mm mm mm
      10027112 22205E 25.00 52.00 18.00
      10027118 22206E 30.00 62.00 20.00
      10027124 22207E 35.00 72.00 23.00
      10027130 22208E 40.00 80.00 23.00
      10027136 22209E 45.00 85.00 23.00
      10027142 22210E 50.00 90.00 23.00
      10027148 22211E 55.00 100.00 25.00
      10027154 22212E 60.00 110.00 28.00
      10027160 22213E 65.00 120.00 31.00
      10027166 22214E 70.00 125.00 31.00
      10027172 22215E 75.00 130.00 31.00
      10027178 22216E 80.00 140.00 33.00
      10027184 22217E 85.00 150.00 36.00
      10027190 22218E 90.00 160.00 40.00
      10027196 22219E 95.00 170.00 43.00
      10027202 22220E 100.00 180.00 46.00
      10027208 22222E 110.00 200.00 53.00
      10027214 22224E 120.00 215.00 58.00
      10027220 22226E 130.00 230.00 64.00
      10027226 22228CC/W33 140.00 250.00 68.00
      10027232 22230CC/W33 150.00 270.00 73.00
      10027238 22232CC/W33 160.00 290.00 80.00
      10027244 22234CC/W33 170.00 310.00 86.00
      10027250 22236CC/W33 180.00 320.00 86.00
      10027256 22238CC/W33 190.00 340.00 92.00
      10027262 22240CC/W33 200.00 360.00 98.00
      10027268 22244CC/W33 220.00 400.00 108.00
      10027274 22248CC/W33 240.00 440.00 120.00
      10027280 22252CC/W33 260.00 480.00 130.00
      10027286 22256CC/W33 280.00 500.00 130.00
      10027292 22260CC/W33 300.00 540.00 140.00
      10027298 22264CC/W33 320.00 580.00 150.00
      10027302 22272CA/W33 360.00 650.00 170.00
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

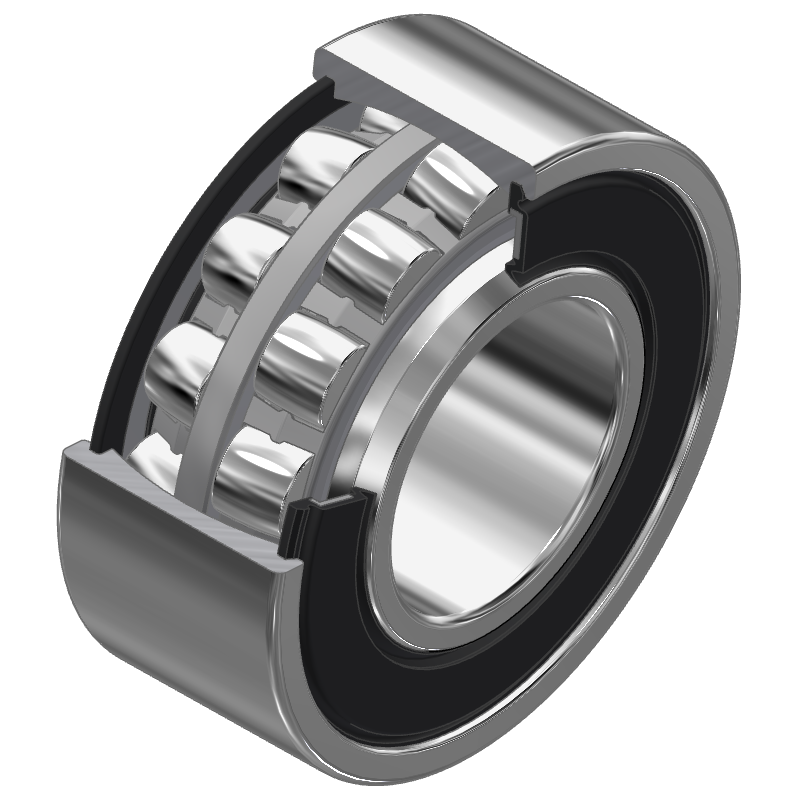

    • 22200-2RS / 22200K-2RS

      Spherical roller bearing 222, DIN 635-2, DIN 616 ISO 15:1998

      • Spherical roller bearing 222-2RS
        Spherical roller bearing 222-2RS
      • Spherical roller bearing 222-2RS
        Spherical roller bearing 222-2RS
      • Spherical roller bearing 222-2RS
        Spherical roller bearing 222-2RS

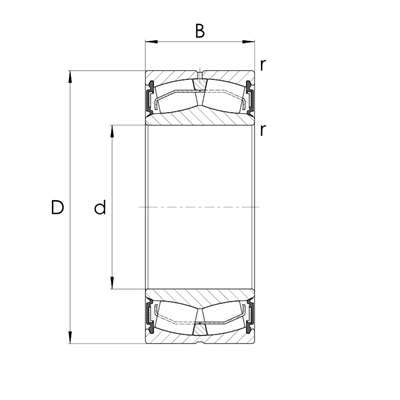

        Description Main dimensions Functions
        d D B
        mm mm mm
        SKU Description Main dimensions Functions
        d D B
        mm mm mm
        10361942 22228-2RS5/VT143 140.00 250.00 68.00
        10361949 22230-2RS5/VT143 150.00 270.00 73.00
        10361956 22232-2RS5/VT143 160.00 290.00 80.00
        10361962 22234-2RS5/VT143 170.00 310.00 86.00
        10361967 22236-2RS5/VT143 180.00 320.00 86.00
        10361970 22238-2RS5/VT143 190.00 340.00 92.00
        10361974 22240-2RS5/VT143 200.00 360.00 98.00
        10361979 22244-2RS5/VT143 220.00 400.00 108.00
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
