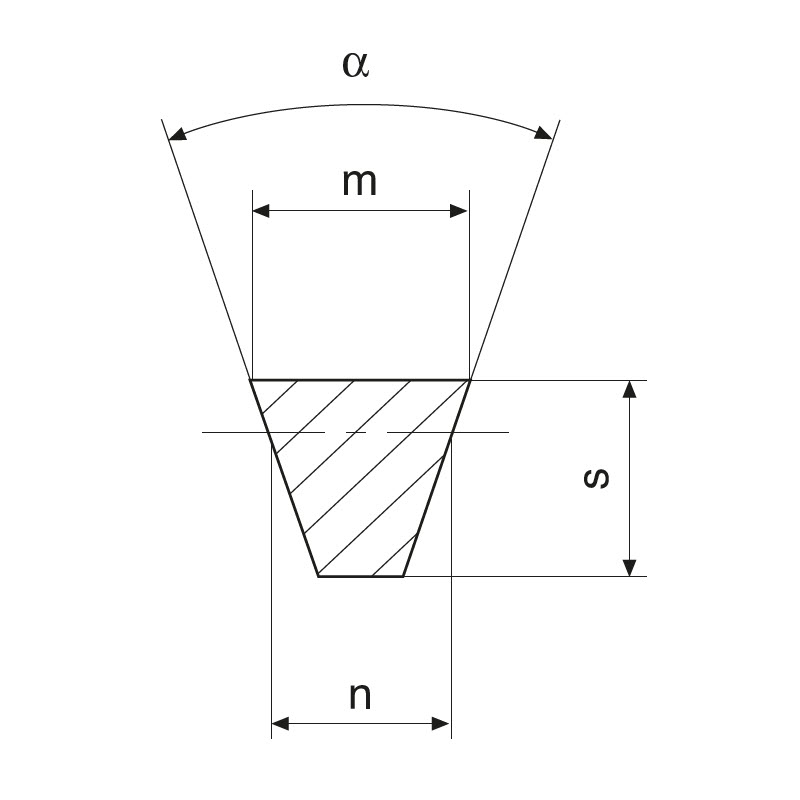

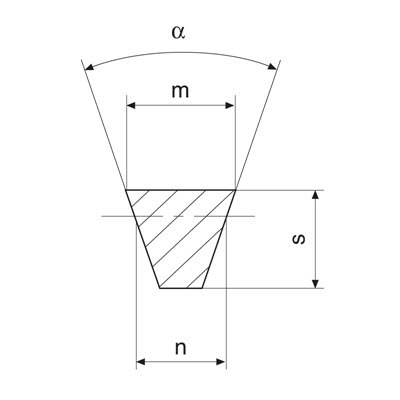

Keilriemen SPA
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| m | Lw | La | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| m | Lw | La | |||
| mm | mm | mm | |||
| 10000927 | SPA-00750 | 12,70 | 750,00 | 768,00 | |
| 10000928 | SPA-00757 | 12,70 | 757,00 | 775,00 | |
| 10000929 | SPA-00775 | 12,70 | 775,00 | 793,00 | |
| 10000930 | SPA-00782 | 12,70 | 782,00 | 800,00 | |
| 10000931 | SPA-00800 | 12,70 | 800,00 | 818,00 | |
| 10000932 | SPA-00807 | 12,70 | 807,00 | 825,00 | |
| 10000933 | SPA-00825 | 12,70 | 825,00 | 843,00 | |
| 10000934 | SPA-00832 | 12,70 | 832,00 | 850,00 | |
| 10000935 | SPA-00850 | 12,70 | 850,00 | 868,00 | |
| 10000936 | SPA-00857 | 12,70 | 857,00 | 875,00 | |
| 10000937 | SPA-00875 | 12,70 | 875,00 | 893,00 | |
| 10000938 | SPA-00882 | 12,70 | 882,00 | 900,00 | |
| 10000939 | SPA-00900 | 12,70 | 900,00 | 918,00 | |
| 10000940 | SPA-00907 | 12,70 | 907,00 | 925,00 | |
| 10000941 | SPA-00925 | 12,70 | 925,00 | 943,00 | |
| 10000942 | SPA-00932 | 12,70 | 932,00 | 950,00 | |
| 10000943 | SPA-00950 | 12,70 | 950,00 | 968,00 | |
| 10000944 | SPA-00957 | 12,70 | 957,00 | 975,00 | |
| 10000945 | SPA-00975 | 12,70 | 975,00 | 993,00 | |
| 10000946 | SPA-00982 | 12,70 | 982,00 | 1.000,00 | |
| 10000947 | SPA-01000 | 12,70 | 1.000,00 | 1.018,00 | |
| 10000948 | SPA-01007 | 12,70 | 1.007,00 | 1.025,00 | |
| 10000949 | SPA-01030 | 12,70 | 1.030,00 | 1.048,00 | |
| 10000950 | SPA-01032 | 12,70 | 1.032,00 | 1.050,00 | |
| 10000951 | SPA-01060 | 12,70 | 1.060,00 | 1.078,00 | |
| 10000952 | SPA-01082 | 12,70 | 1.082,00 | 1.100,00 | |
| 10000953 | SPA-01090 | 12,70 | 1.090,00 | 1.108,00 | |
| 10000954 | SPA-01107 | 12,70 | 1.107,00 | 1.125,00 | |
| 10000955 | SPA-01120 | 12,70 | 1.120,00 | 1.138,00 | |
| 10000956 | SPA-01132 | 12,70 | 1.132,00 | 1.150,00 | |
| 10000957 | SPA-01150 | 12,70 | 1.150,00 | 1.168,00 | |
| 10000958 | SPA-01157 | 12,70 | 1.157,00 | 1.175,00 | |
| 10000959 | SPA-01180 | 12,70 | 1.180,00 | 1.198,00 | |
| 10000960 | SPA-01207 | 12,70 | 1.207,00 | 1.225,00 | |
| 10000961 | SPA-01220 | 12,70 | 1.220,00 | 1.238,00 | |
| 10000962 | SPA-01232 | 12,70 | 1.232,00 | 1.250,00 | |
| 10000963 | SPA-01250 | 12,70 | 1.250,00 | 1.268,00 | |
| 10000964 | SPA-01257 | 12,70 | 1.257,00 | 1.275,00 | |
| 10000965 | SPA-01272 | 12,70 | 1.272,00 | 1.290,00 | |
| 10000966 | SPA-01280 | 12,70 | 1.280,00 | 1.298,00 | |
| 10000967 | SPA-01282 | 12,70 | 1.282,00 | 1.300,00 | |
| 10000968 | SPA-01307 | 12,70 | 1.307,00 | 1.325,00 | |
| 10000969 | SPA-01320 | 12,70 | 1.320,00 | 1.338,00 | |
| 10000970 | SPA-01332 | 12,70 | 1.332,00 | 1.350,00 | |
| 10000971 | SPA-01357 | 12,70 | 1.357,00 | 1.375,00 | |
| 10000972 | SPA-01360 | 12,70 | 1.360,00 | 1.378,00 | |
| 10000973 | SPA-01382 | 12,70 | 1.382,00 | 1.400,00 | |
| 10000974 | SPA-01400 | 12,70 | 1.400,00 | 1.418,00 | |
| 10000975 | SPA-01407 | 12,70 | 1.407,00 | 1.425,00 | |
| 10000976 | SPA-01425 | 12,70 | 1.425,00 | 1.443,00 | |
| 10000977 | SPA-01432 | 12,70 | 1.432,00 | 1.450,00 | |
| 10000978 | SPA-01450 | 12,70 | 1.450,00 | 1.468,00 | |
| 10000979 | SPA-01457 | 12,70 | 1.457,00 | 1.475,00 | |
| 10000980 | SPA-01482 | 12,70 | 1.482,00 | 1.500,00 | |
| 10000981 | SPA-01500 | 12,70 | 1.500,00 | 1.518,00 | |
| 10000982 | SPA-01507 | 12,70 | 1.507,00 | 1.525,00 | |
| 10000983 | SPA-01532 | 12,70 | 1.532,00 | 1.550,00 | |
| 10000984 | SPA-01550 | 12,70 | 1.550,00 | 1.568,00 | |
| 10000985 | SPA-01557 | 12,70 | 1.557,00 | 1.575,00 | |
| 10000986 | SPA-01582 | 12,70 | 1.582,00 | 1.600,00 | |
| 10000987 | SPA-01600 | 12,70 | 1.600,00 | 1.618,00 | |
| 10000988 | SPA-01607 | 12,70 | 1.607,00 | 1.625,00 | |
| 10000989 | SPA-01632 | 12,70 | 1.632,00 | 1.650,00 | |
| 10000990 | SPA-01650 | 12,70 | 1.650,00 | 1.668,00 | |
| 10000991 | SPA-01657 | 12,70 | 1.657,00 | 1.675,00 | |
| 10000992 | SPA-01682 | 12,70 | 1.682,00 | 1.700,00 | |
| 10000993 | SPA-01700 | 12,70 | 1.700,00 | 1.718,00 | |
| 10000994 | SPA-01707 | 12,70 | 1.707,00 | 1.725,00 | |
| 10000995 | SPA-01732 | 12,70 | 1.732,00 | 1.750,00 | |
| 10000996 | SPA-01750 | 12,70 | 1.750,00 | 1.768,00 | |
| 10000997 | SPA-01757 | 12,70 | 1.757,00 | 1.775,00 | |
| 10000998 | SPA-01782 | 12,70 | 1.782,00 | 1.800,00 | |
| 10000999 | SPA-01800 | 12,70 | 1.800,00 | 1.818,00 | |
| 10001000 | SPA-01807 | 12,70 | 1.807,00 | 1.825,00 | |
| 10001001 | SPA-01832 | 12,70 | 1.832,00 | 1.850,00 | |
| 10001002 | SPA-01850 | 12,70 | 1.850,00 | 1.868,00 | |
| 10001003 | SPA-01857 | 12,70 | 1.857,00 | 1.875,00 | |
| 10001004 | SPA-01882 | 12,70 | 1.882,00 | 1.900,00 | |
| 10001005 | SPA-01900 | 12,70 | 1.900,00 | 1.918,00 | |
| 10001006 | SPA-01907 | 12,70 | 1.907,00 | 1.925,00 | |
| 10001007 | SPA-01925 | 12,70 | 1.925,00 | 1.943,00 | |
| 10001008 | SPA-01932 | 12,70 | 1.932,00 | 1.950,00 | |
| 10001009 | SPA-01950 | 12,70 | 1.950,00 | 1.968,00 | |
| 10001010 | SPA-01957 | 12,70 | 1.957,00 | 1.975,00 | |
| 10001011 | SPA-01982 | 12,70 | 1.982,00 | 2.000,00 | |
| 10001012 | SPA-02000 | 12,70 | 2.000,00 | 2.018,00 | |
| 10001013 | SPA-02032 | 12,70 | 2.032,00 | 2.050,00 | |
| 10001014 | SPA-02057 | 12,70 | 2.057,00 | 2.075,00 | |
| 10001015 | SPA-02060 | 12,70 | 2.060,00 | 2.078,00 | |
| 10001016 | SPA-02082 | 12,70 | 2.082,00 | 2.100,00 | |
| 10001017 | SPA-02120 | 12,70 | 2.120,00 | 2.138,00 | |
| 10001018 | SPA-02132 | 12,70 | 2.132,00 | 2.150,00 | |
| 10001019 | SPA-02180 | 12,70 | 2.180,00 | 2.198,00 | |
| 10001020 | SPA-02182 | 12,70 | 2.182,00 | 2.200,00 | |
| 10001021 | SPA-02207 | 12,70 | 2.207,00 | 2.225,00 | |
| 10001022 | SPA-02227 | 12,70 | 2.227,00 | 2.245,00 | |
| 10001023 | SPA-02232 | 12,70 | 2.232,00 | 2.250,00 | |
| 10001024 | SPA-02240 | 12,70 | 2.240,00 | 2.258,00 | |
| 10001025 | SPA-02282 | 12,70 | 2.282,00 | 2.300,00 | |
| 10001026 | SPA-02300 | 12,70 | 2.300,00 | 2.318,00 | |
| 10001027 | SPA-02307 | 12,70 | 2.307,00 | 2.325,00 | |
| 10001028 | SPA-02332 | 12,70 | 2.332,00 | 2.350,00 | |
| 10001029 | SPA-02360 | 12,70 | 2.360,00 | 2.378,00 | |
| 10001030 | SPA-02382 | 12,70 | 2.382,00 | 2.400,00 | |
| 10001031 | SPA-02430 | 12,70 | 2.430,00 | 2.448,00 | |
| 10001032 | SPA-02432 | 12,70 | 2.432,00 | 2.450,00 | |
| 10001033 | SPA-02475 | 12,70 | 2.475,00 | 2.493,00 | |
| 10001034 | SPA-02482 | 12,70 | 2.482,00 | 2.500,00 | |
| 10001035 | SPA-02500 | 12,70 | 2.500,00 | 2.518,00 | |
| 10001036 | SPA-02532 | 12,70 | 2.532,00 | 2.550,00 | |
| 10001037 | SPA-02580 | 12,70 | 2.580,00 | 2.590,00 | |
| 10001038 | SPA-02582 | 12,70 | 2.582,00 | 2.600,00 | |
| 10001039 | SPA-02607 | 12,70 | 2.607,00 | 2.625,00 | |
| 10001040 | SPA-02632 | 12,70 | 2.632,00 | 2.650,00 | |
| 10001041 | SPA-02650 | 12,70 | 2.650,00 | 2.668,00 | |
| 10001042 | SPA-02682 | 12,70 | 2.682,00 | 2.700,00 | |
| 10001043 | SPA-02720 | 12,70 | 2.720,00 | 2.738,00 | |
| 10001044 | SPA-02732 | 12,70 | 2.732,00 | 2.750,00 | |
| 10001045 | SPA-02782 | 12,70 | 2.782,00 | 2.800,00 | |
| 10001046 | SPA-02800 | 12,70 | 2.800,00 | 2.818,00 | |
| 10001047 | SPA-02832 | 12,70 | 2.832,00 | 2.850,00 | |
| 10001048 | SPA-02900 | 12,70 | 2.900,00 | 2.918,00 | |
| 10001049 | SPA-02932 | 12,70 | 2.932,00 | 2.950,00 | |
| 10001050 | SPA-02982 | 12,70 | 2.982,00 | 3.000,00 | |
| 10001051 | SPA-03000 | 12,70 | 3.000,00 | 3.018,00 | |
| 10001052 | SPA-03032 | 12,70 | 3.032,00 | 3.050,00 | |
| 10001053 | SPA-03070 | 12,70 | 3.070,00 | 3.088,00 | |
| 10001054 | SPA-03082 | 12,70 | 3.082,00 | 3.100,00 | |
| 10001055 | SPA-03150 | 12,70 | 3.150,00 | 3.168,00 | |
| 10001056 | SPA-03182 | 12,70 | 3.182,00 | 3.200,00 | |
| 10001057 | SPA-03250 | 12,70 | 3.250,00 | 3.268,00 | |
| 10001058 | SPA-03282 | 12,70 | 3.282,00 | 3.300,00 | |
| 10001059 | SPA-03350 | 12,70 | 3.350,00 | 3.368,00 | |
| 10001060 | SPA-03382 | 12,70 | 3.382,00 | 3.400,00 | |
| 10001061 | SPA-03450 | 12,70 | 3.450,00 | 3.468,00 | |
| 10001062 | SPA-03550 | 12,70 | 3.550,00 | 3.568,00 | |
| 10001063 | SPA-03650 | 12,70 | 3.650,00 | 3.668,00 | |
| 10001064 | SPA-03750 | 12,70 | 3.750,00 | 3.768,00 | |
| 10001065 | SPA-03870 | 12,70 | 3.870,00 | 3.888,00 | |
| 10001066 | SPA-03882 | 12,70 | 3.882,00 | 2.900,00 | |
| 10001067 | SPA-04000 | 12,70 | 4.000,00 | 4.018,00 | |
| 10001068 | SPA-04250 | 12,70 | 4.250,00 | 4.268,00 | |
| 10001069 | SPA-04500 | 12,70 | 4.500,00 | 4.518,00 | |
