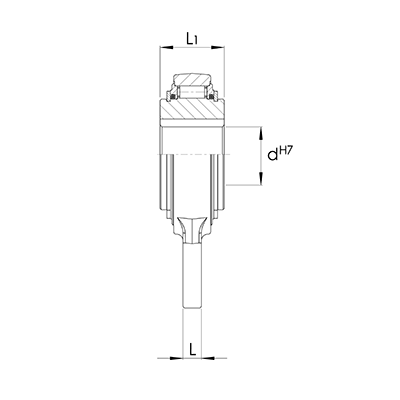

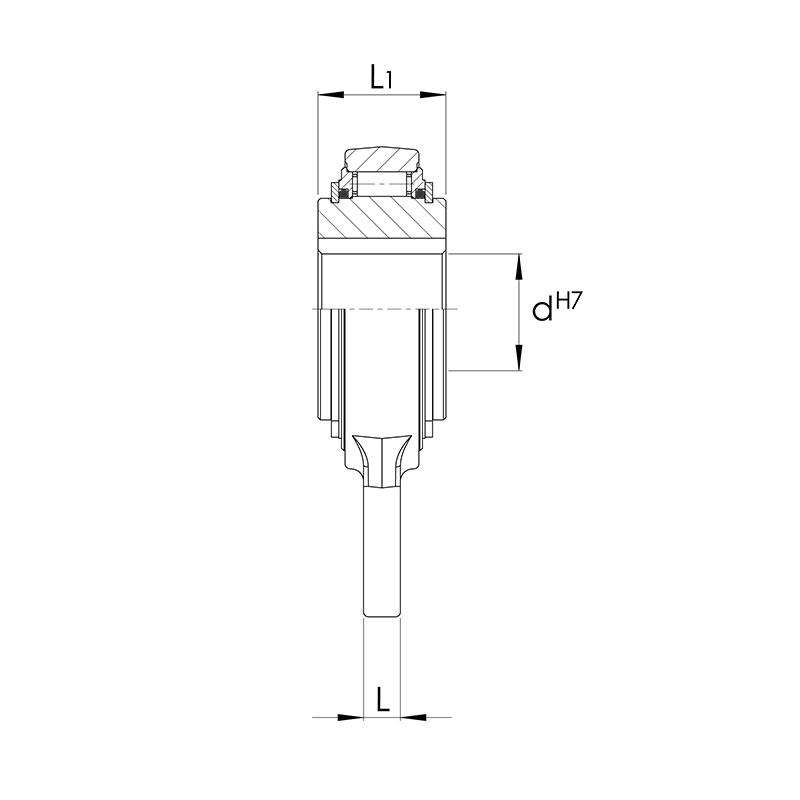

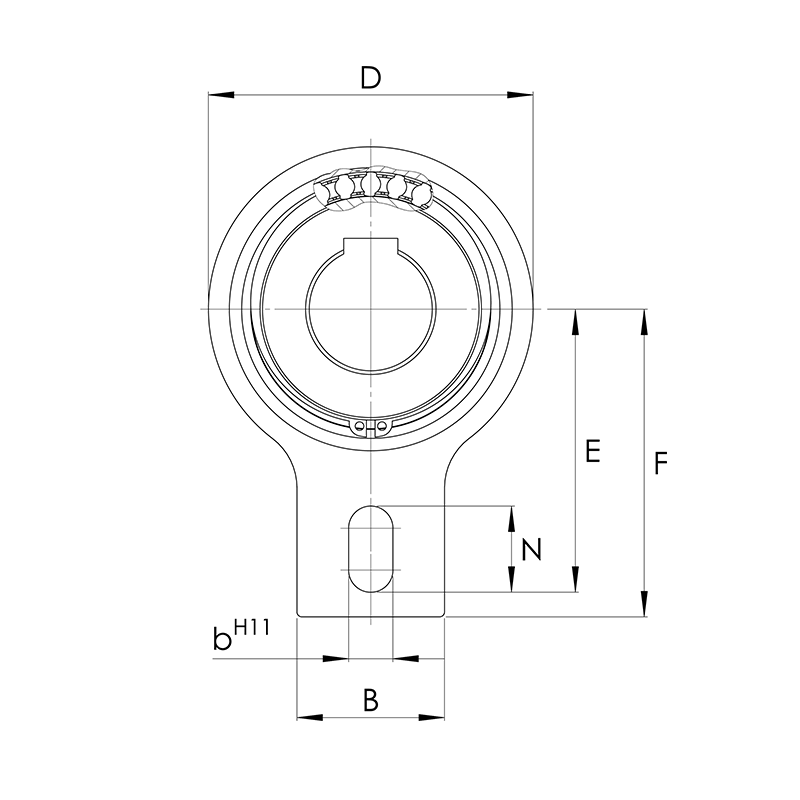

Mounted roller bearing freewheel RSBW
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | L1 | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | L1 | |||
| mm | mm | mm | |||
| 10151823 | RSBW20 | 20.00 | 106.00 | 35.00 | |
| 10151824 | RSBW25 | 25.00 | 106.00 | 48.00 | |
| 10151825 | RSBW30 | 30.00 | 106.00 | 48.00 | |
| 10151829 | RSBW35 | 35.00 | 106.00 | 48.00 | |
| 10318244 | RSBW35M | 35.00 | 106.00 | 35.00 | |
| 10151826 | RSBW40 | 40.00 | 132.00 | 52.00 | |
| 10151827 | RSBW45 | 45.00 | 132.00 | 52.00 | |
| 10151828 | RSBW50 | 50.00 | 132.00 | 52.00 | |
| 10151830 | RSBW55 | 55.00 | 132.00 | 52.00 | |
| 10151831 | RSBW60 | 60.00 | 161.00 | 54.00 | |
| 10151832 | RSBW70 | 70.00 | 161.00 | 54.00 | |
| 10151833 | RSBW80 | 80.00 | 190.00 | 70.00 | |
| 10151834 | RSBW90 | 90.00 | 190.00 | 70.00 | |
