53200

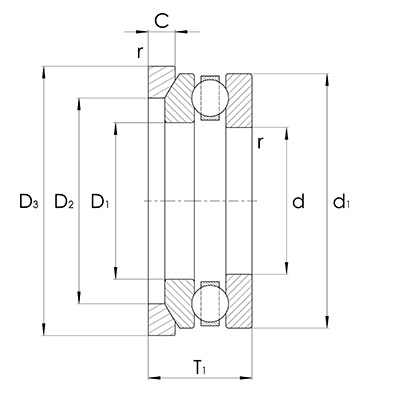

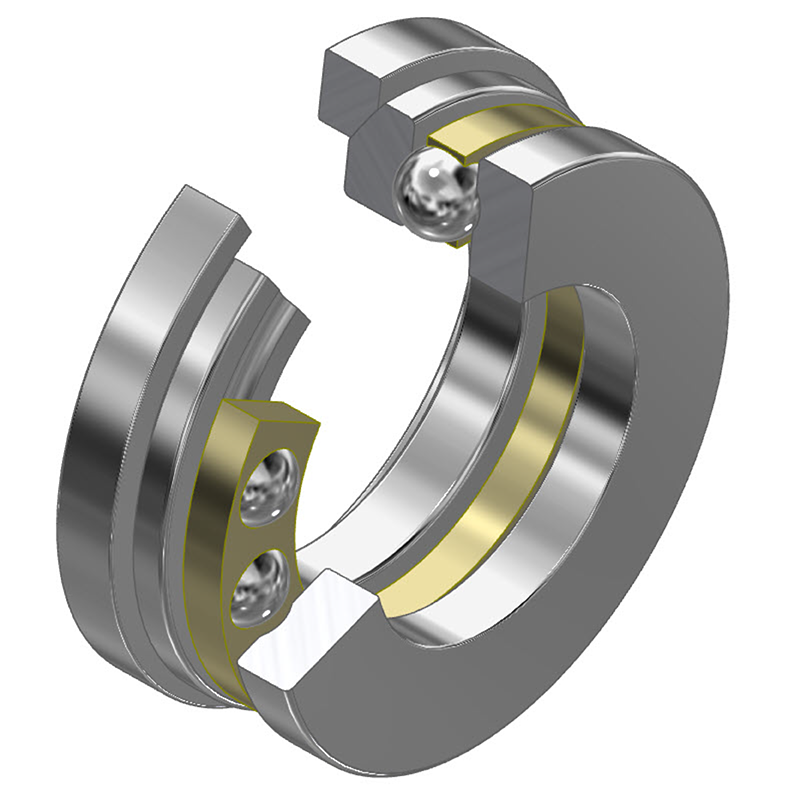

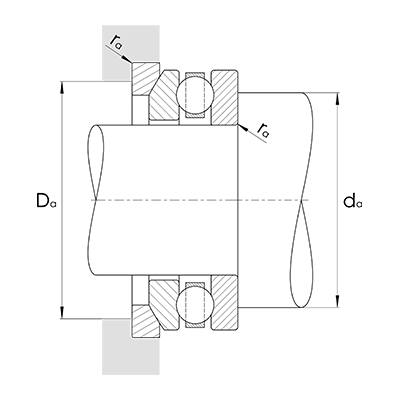

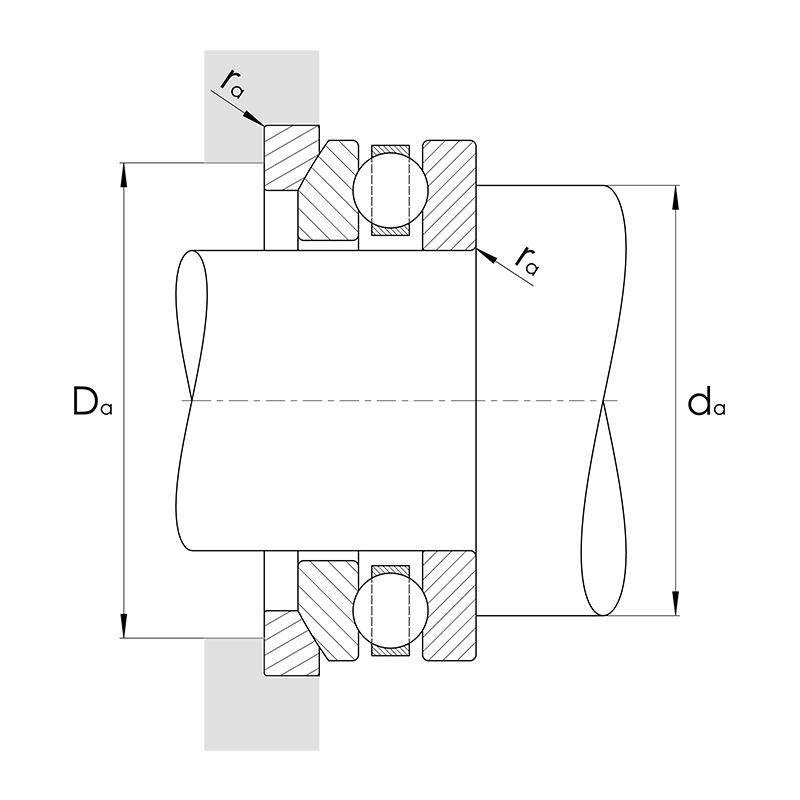

Axial deep groove ball bearing, Serie 532, one-sided acting, with spherical housing washer
Description Main dimensions Functions d D T mm mm mm SKU Description Main dimensions Functions d D T mm mm mm 10365082 53200 10.00 26.00 11.60 10082395 53201 12.00 28.00 11.40 10082396 53202 15.00 32.00 13.30 10082397 53203 17.00 35.00 13.20 10082398 53204 20.00 40.00 14.70 10082399 53205 25.00 47.00 16.70 10082400 53206 30.00 52.00 17.80 10082401 53207 35.00 62.00 19.87 10082402 53208 40.00 68.00 20.30 10082403 53209 45.00 73.00 21.30 10082404 53210 50.00 78.00 23.49 10082405 53211 55.00 90.00 27.35 10082406 53212 60.00 95.00 28.02 10082407 53213 65.00 100.00 28.70 10082408 53214 70.00 105.00 28.80 10082409 53215 75.00 110.00 28.30 10082410 53216 80.00 115.00 29.50 10082411 53217 85.00 125.00 33.10 10082412 53218 90.00 135.00 38.50 10082413 53220 100.00 150.00 40.90 10082414 53222 110.00 160.00 40.20 10082415 53224 120.00 170.00 40.80 10082416 53226 130.00 190.00 47.90 10082417 53228 140.00 200.00 48.60 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -
53300
Axial deep groove ball bearig, Serie 533, one-sided acting, with spherical housing washer
Description Main dimensions Functions d D T mm mm mm SKU Description Main dimensions Functions d D T mm mm mm 10365083 53305 25.00 52.00 19.80 10082418 53306 30.00 60.00 22.60 10082419 53307 35.00 68.00 25.60 10082420 53308 40.00 78.00 28.50 10082421 53309 45.00 85.00 30.13 10082422 53310 50.00 95.00 34.30 10082423 53311 55.00 105.00 39.30 10082424 53312 60.00 110.00 38.30 10082425 53313 65.00 115.00 39.40 10082426 53314 70.00 125.00 44.20 10082427 53315 75.00 135.00 48.10 10082428 53316 80.00 140.00 47.60 10082429 53317 85.00 150.00 53.10 10082430 53318 90.00 155.00 54.60 10082431 53320 100.00 170.00 59.20 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
