Bearing for screw drives

Bearings for screw drives are designed for special requirements that conventional rolling bearings cannot optimally meet due to their structural design. Bearings for screw drives are high-performance combined bearing units that combine the properties of sliding bearings in one component and therefore represent an extremely economical solution and meet technical requirements with the highest precision.

Axial angular contact ball bearing

  • ready-to-assemble unit
  • one, two or three row bearing unit
  • self-retaining
  • dimensionally stable, thick-walled outer rings
  • depending on the series, they absorb radial and one- or two-sided axial forces

Needle axial cylindrical roller bearing

  • double-direction axial cylindrical roller bearing with radial needle bearing*
  • high axial runout accuracy*
  • high rigidity*
* depends on type

Bearing for screw drives - series

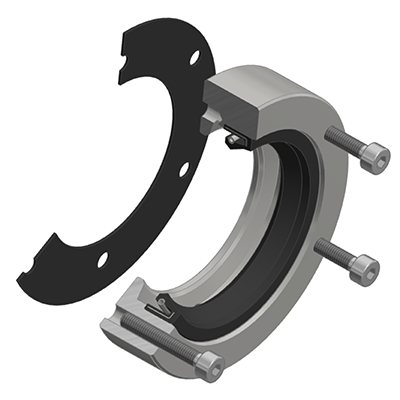

Seal carrier DRS

DRS

Seal carrier, screwable seal kit for needle roller axial cylindrical roller bearings ZARF/ZARF-L

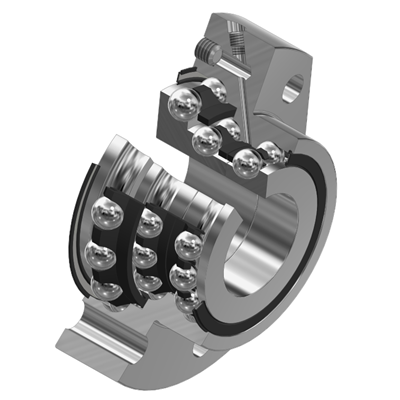

Axial angualar contact ball bearing DKLFA

DKLFA

Axial angular contact ball bearing, complete assembly, three-row bearing, sealed on both sides, for fixed bearing on both sides

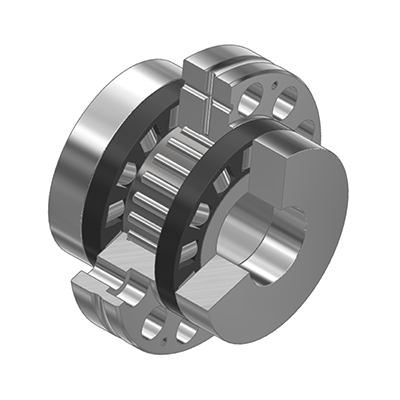

Needle axial cylindrical roller bearing ZARF

ZARF

Needle roller axial cylindrical roller bearings, outer ring can be flanged, very high accuracy, load capacity and rigidity

Needle axial cylindrical roller bearing ZARN

ZARN

Needle roller axial cylindrical roller bearings, very high accuracy, load capacity and rigidity

Axial angualar contact ball bearing 7602 / 7603

7602 / 7603

Axial angular contact ball bearings, single row, open or sealed on both sides, can be universally combined with the contact angle combinations

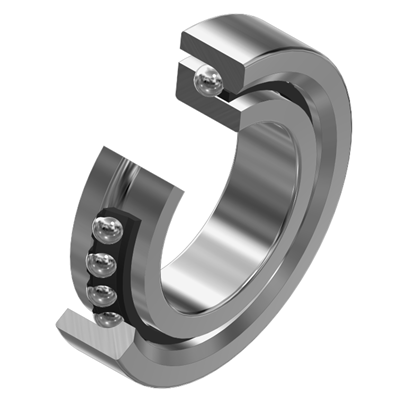

Axial angular contact ball bearing BSB

BSB

Axial angular contact ball bearings, single row, open or sealed on both sides, can be universally combined with the contact angle combinations

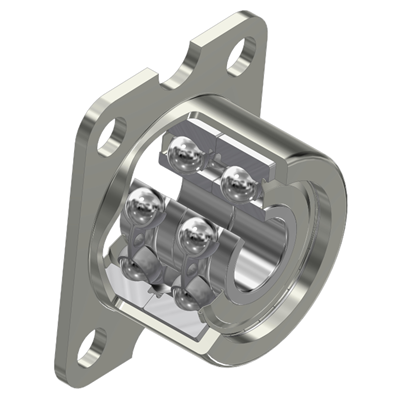

Angular contact ball bearing unit ZKLR

ZKLR

Angular contact ball bearing unit, double-sided sliding or gap seal, for applications with low loads but high positioning accuracy

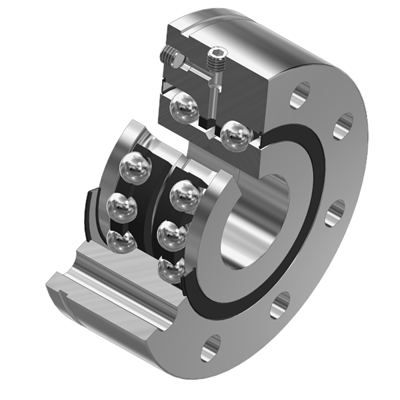

Angular contact ball bearing unit ZKLF

ZKLF

Axial angular contact ball bearing, sliding or gap seal on both sides, flangeable outer ring

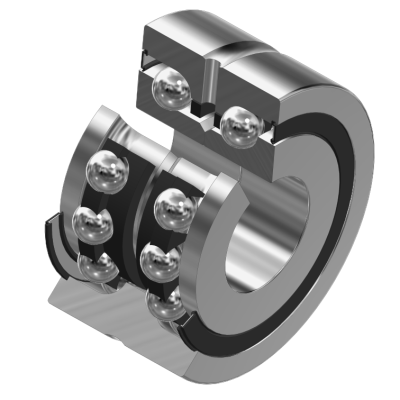

Axial angualar contact ball bearing ZKLN

ZKLN

Axial angular contact ball bearing, sliding or gap seal on both sides, without mounting hole
