51100

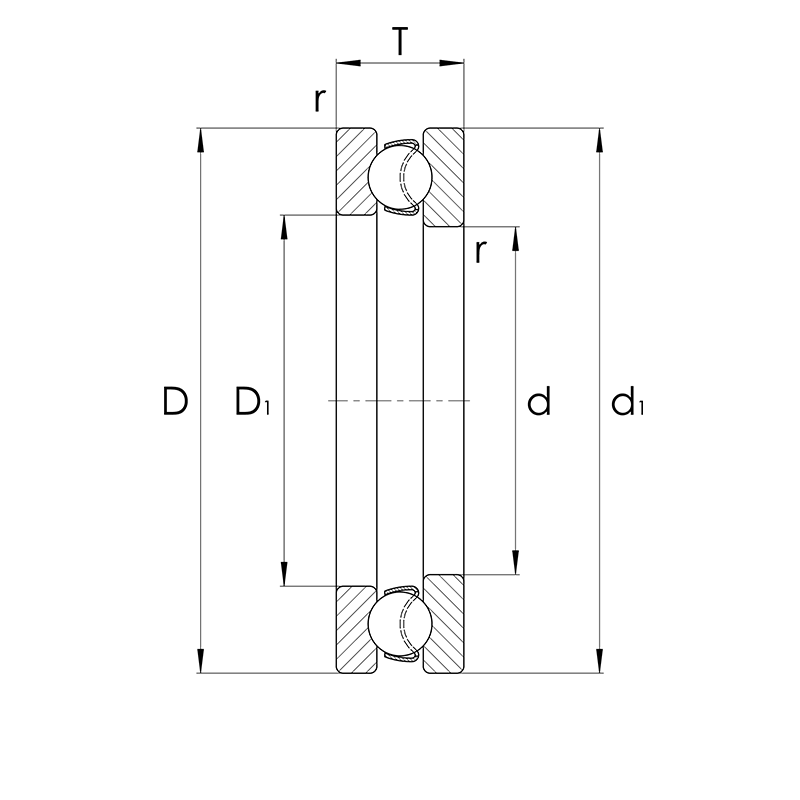

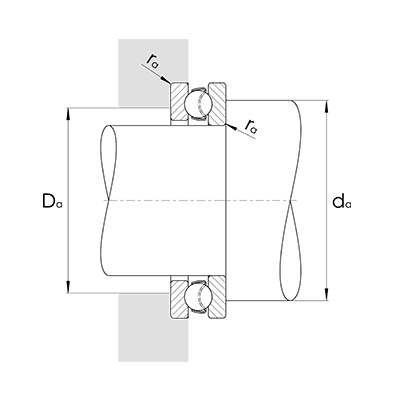

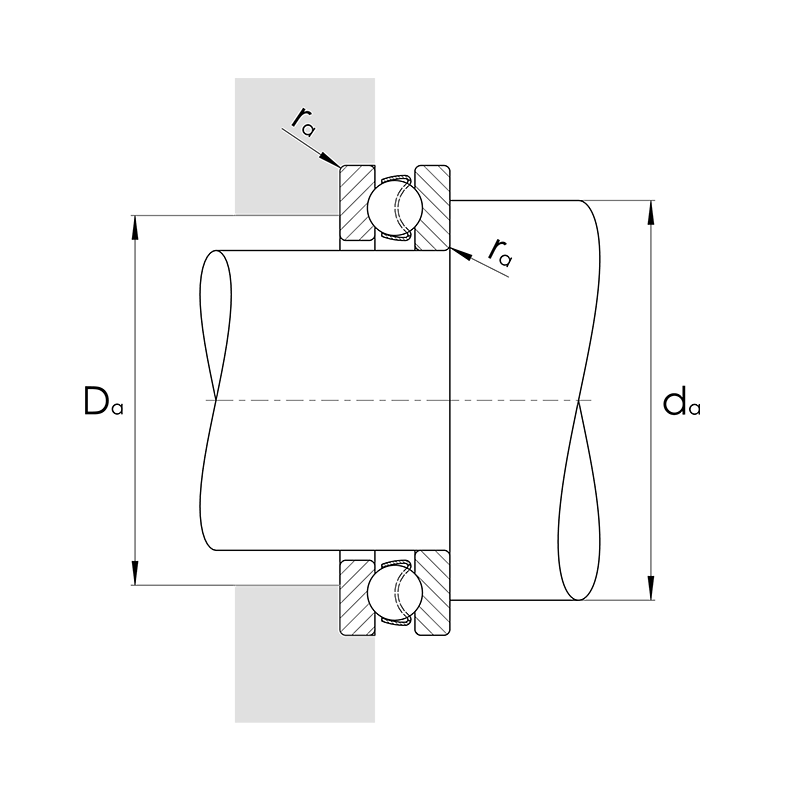

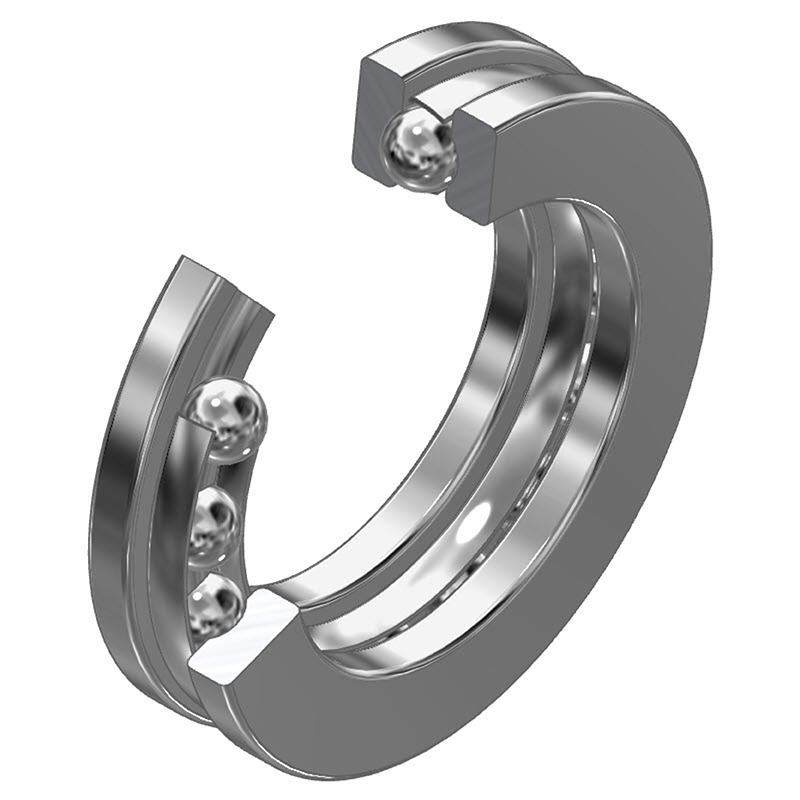

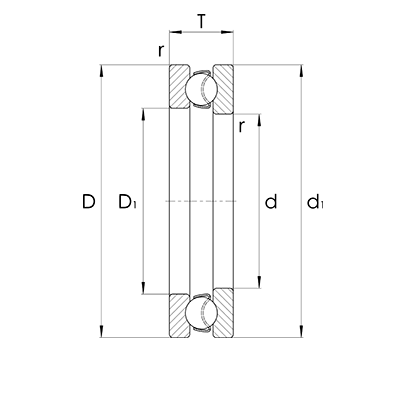

Axial deep groove ball bearing, Serie 511, one-sided action
Description Main dimensions Functions d D T mm mm mm SKU Description Main dimensions Functions d D T mm mm mm 10082222 51100 10.00 24.00 9.00 10082223 51101 12.00 26.00 9.00 10082224 51102 15.00 28.00 9.00 10082225 51103 17.00 30.00 9.00 10082226 51104 20.00 35.00 10.00 10082227 51105 25.00 42.00 11.00 10082228 51106 30.00 47.00 11.00 10082229 51107 35.00 52.00 12.00 10082230 51108 40.00 60.00 13.00 10082231 51109 45.00 65.00 14.00 10082232 51110 50.00 70.00 14.00 10082233 51111 55.00 78.00 16.00 10082234 51112 60.00 85.00 17.00 10082235 51113 65.00 90.00 18.00 10082236 51114 70.00 95.00 18.00 10082237 51115 75.00 100.00 19.00 10082238 51116 80.00 105.00 19.00 10082239 51117 85.00 110.00 19.00 10082240 51118 90.00 120.00 22.00 10082241 51120 100.00 135.00 25.00 10082242 51122 110.00 145.00 25.00 10082243 51124 120.00 155.00 25.00 10082244 51126 130.00 170.00 30.00 10082245 51128 140.00 180.00 31.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -
51200
Axial deep groove ball bearing, Serie 512, one-sided action
Description Main dimensions Functions d D T mm mm mm SKU Description Main dimensions Functions d D T mm mm mm 10082266 51200 10.00 26.00 11.00 10082267 51201 12.00 28.00 11.00 10082268 51202 15.00 32.00 12.00 10082269 51203 17.00 35.00 12.00 10082270 51204 20.00 40.00 14.00 10082271 51205 25.00 47.00 15.00 10082272 51206 30.00 52.00 16.00 10082273 51207 35.00 62.00 18.00 10082274 51208 40.00 68.00 19.00 10082275 51209 45.00 73.00 20.00 10082276 51210 50.00 78.00 22.00 10082277 51211 55.00 90.00 25.00 10082278 51212 60.00 95.00 26.00 10082279 51213 65.00 100.00 27.00 10082280 51214 70.00 105.00 27.00 10082281 51215 75.00 110.00 27.00 10082282 51216 80.00 115.00 28.00 10082283 51217 85.00 125.00 31.00 10082284 51218 90.00 135.00 35.00 10082285 51220 100.00 150.00 38.00 10082286 51222 110.00 160.00 38.00 10082287 51224 120.00 170.00 39.00 10082288 51226 130.00 190.00 45.00 10082289 51228 140.00 200.00 46.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -
51300
Axial deep groove ball bearing, Serie 513, one-sided action
Description Main dimensions Functions d D T mm mm mm SKU Description Main dimensions Functions d D T mm mm mm 10082305 51305 25.00 52.00 18.00 10082306 51306 30.00 60.00 21.00 10082307 51307 35.00 68.00 24.00 10082308 51308 40.00 78.00 26.00 10082309 51309 45.00 85.00 28.00 10082310 51310 50.00 95.00 31.00 10082311 51311 55.00 105.00 35.00 10082312 51312 60.00 110.00 35.00 10082313 51313 65.00 115.00 36.00 10082314 51314 70.00 125.00 40.00 10082315 51315 75.00 135.00 44.00 10082316 51316 80.00 140.00 44.00 10082317 51317 85.00 150.00 49.00 10082318 51318 90.00 155.00 50.00 10082319 51320 100.00 170.00 55.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -
51400
Axial deep groove ball bearing, Serie 514, one-sided action
Description Main dimensions Functions d D T mm mm mm SKU Description Main dimensions Functions d D T mm mm mm 10082330 51405 25.00 60.00 24.00 10082331 51406 30.00 70.00 28.00 10082332 51407 35.00 80.00 32.00 10082333 51408 40.00 90.00 36.00 10082334 51409 45.00 100.00 39.00 10082335 51410 50.00 110.00 43.00 10082336 51411 55.00 120.00 48.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
