VSA20

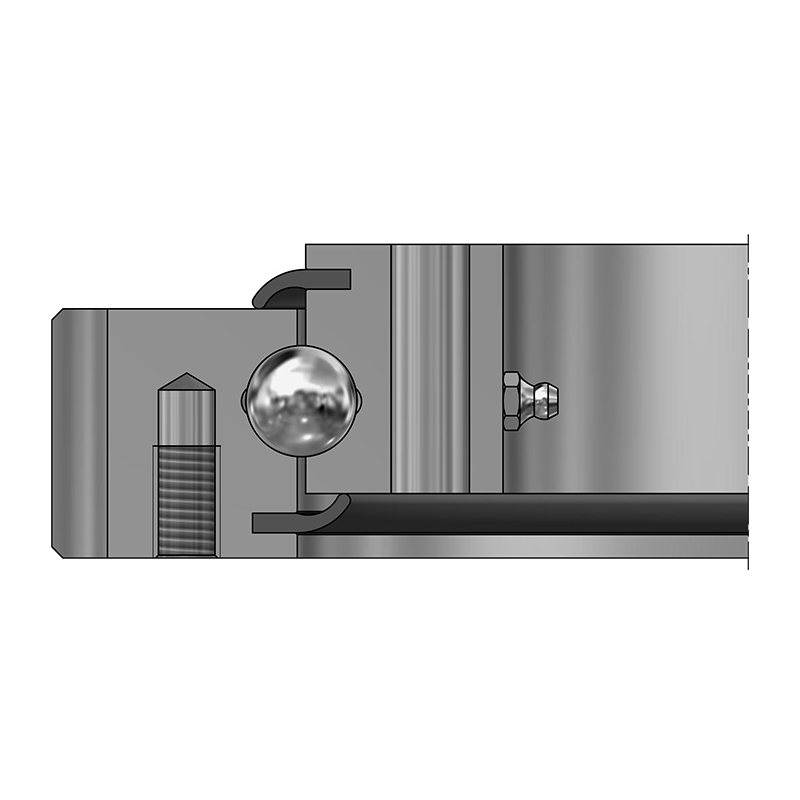

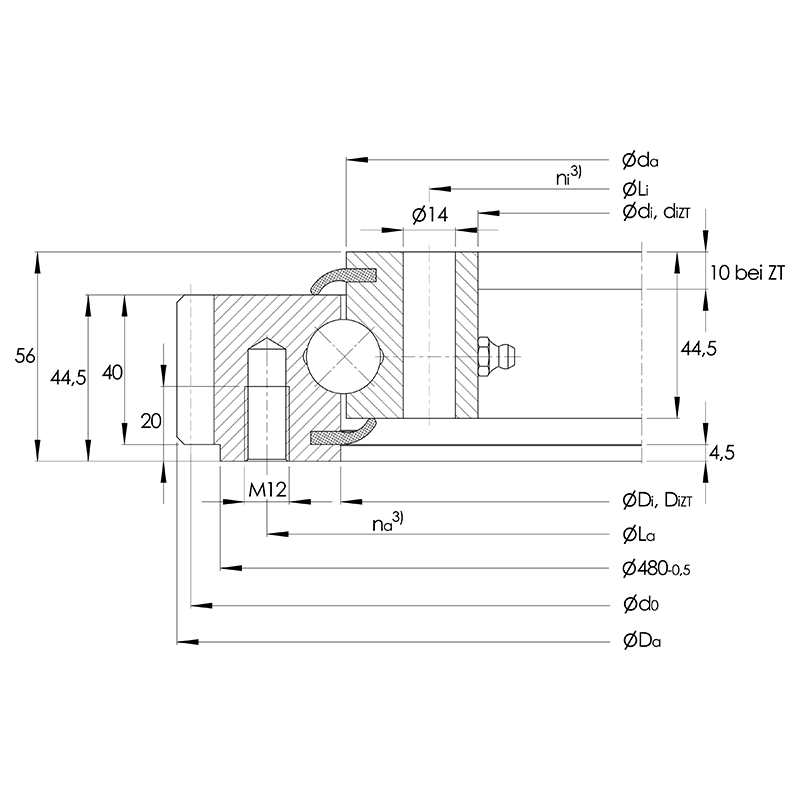

Four-point contact slewing bearing, light series 20, external toothed, bearing clearance selectable, sealed, grease nipple on the circumference of the untoothed ring
Description Main dimensions Functions d D[[sub]]i[[/sub]] d[[sub]]a[[/sub]] mm mm mm SKU Description Main dimensions Functions d D[[sub]]i[[/sub]] d[[sub]]a[[/sub]] mm mm mm 10093735 VSA200414-N 503.30 +0.50
415.50412.50
-0.5010093740 VSA200544-N 640.30 +0.50
545.50542.50
-0.5010093745 VSA200644-N 742.30 +0.60
645.50642.50
-0.6010093750 VSA200744-N 838.10 +0.60
745.50742.50
-0.6010093755 VSA200844-N 950.10 +0.60
845.50842.50
-0.6010093760 VSA200944-N 1,046.10 +0.70
945.50942.50
-0.7010093765 VSA201094-N 1,198.10 +0.70
1,095.501,092.50
-0.70Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -
VSA25

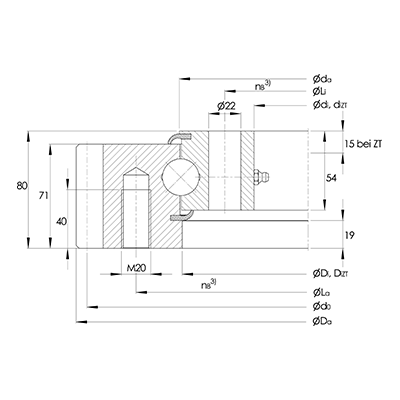

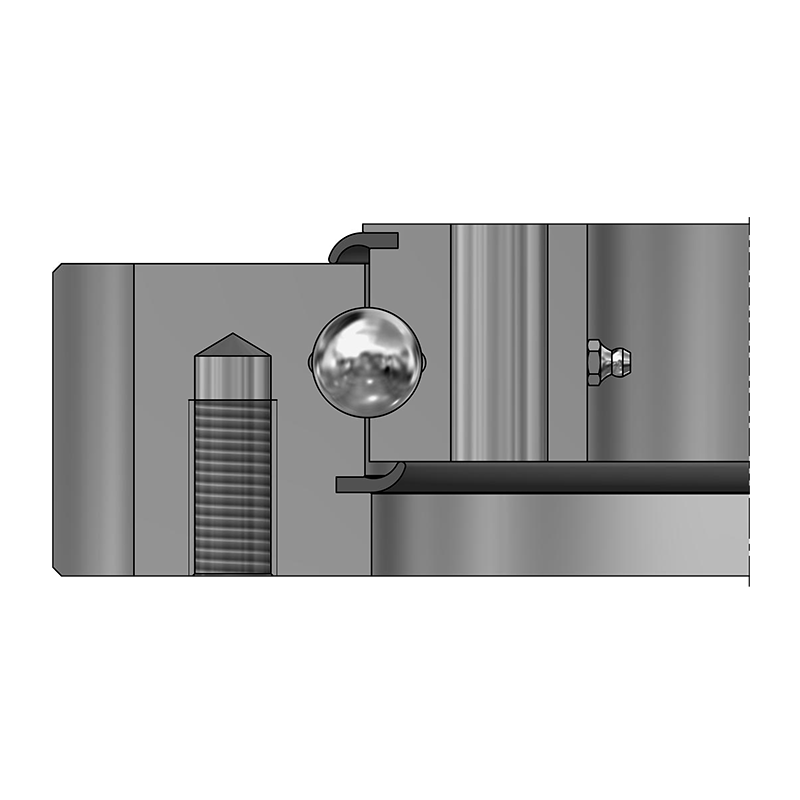

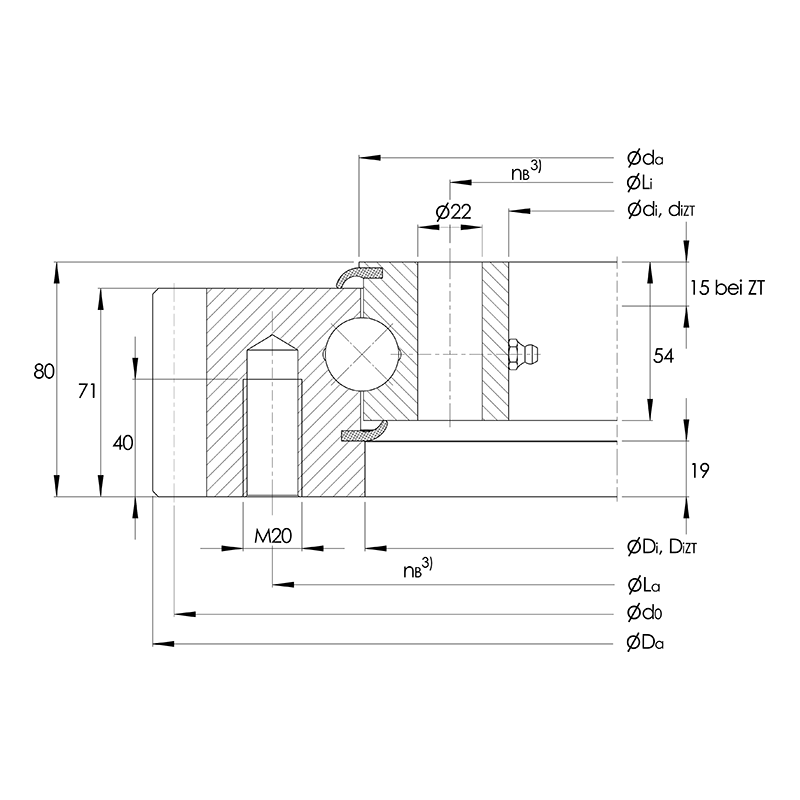

Four-point contact slewing bearing, heavy series 20, external toothed, bearing clearance selectable, sealed, grease nipple on the circumference of the untoothed ring
Description Main dimensions Functions d D[[sub]]i[[/sub]] d[[sub]]a[[/sub]] mm mm mm SKU Description Main dimensions Functions d D[[sub]]i[[/sub]] d[[sub]]a[[/sub]] mm mm mm 10093770 VSA250755-N 898.00 753.00 757.00 10093771 VSA250855-N 997.00 853.00 857.00 10093772 VSA250955-N 1,096.00 953.00 957.00 10093773 VSA251055-N 1,198.00 1,053.00 1,057.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
