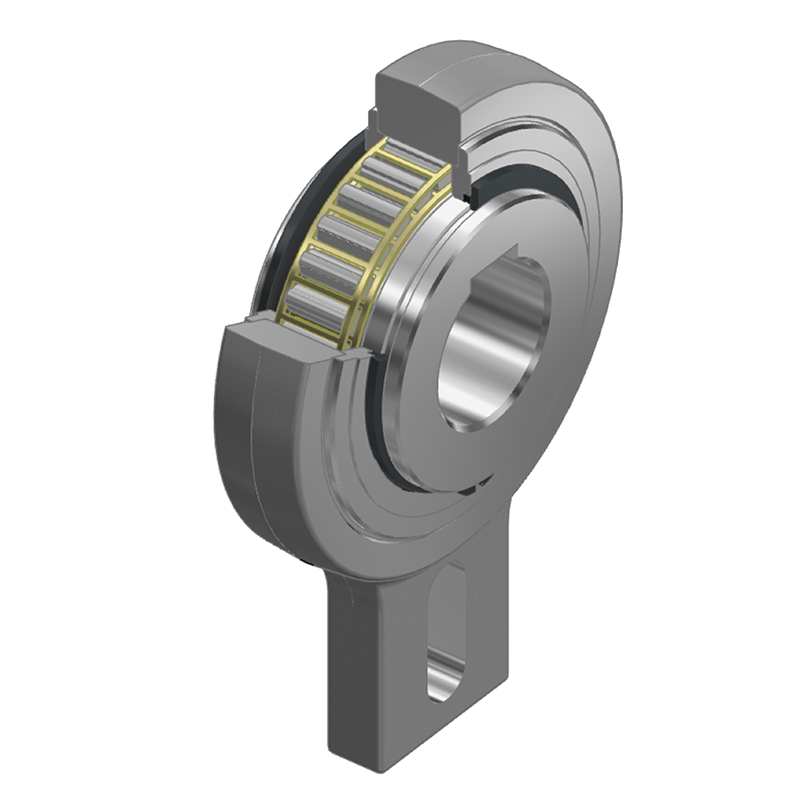

Mounted roller bearing freewheel with keyway according to DIN 6885.1

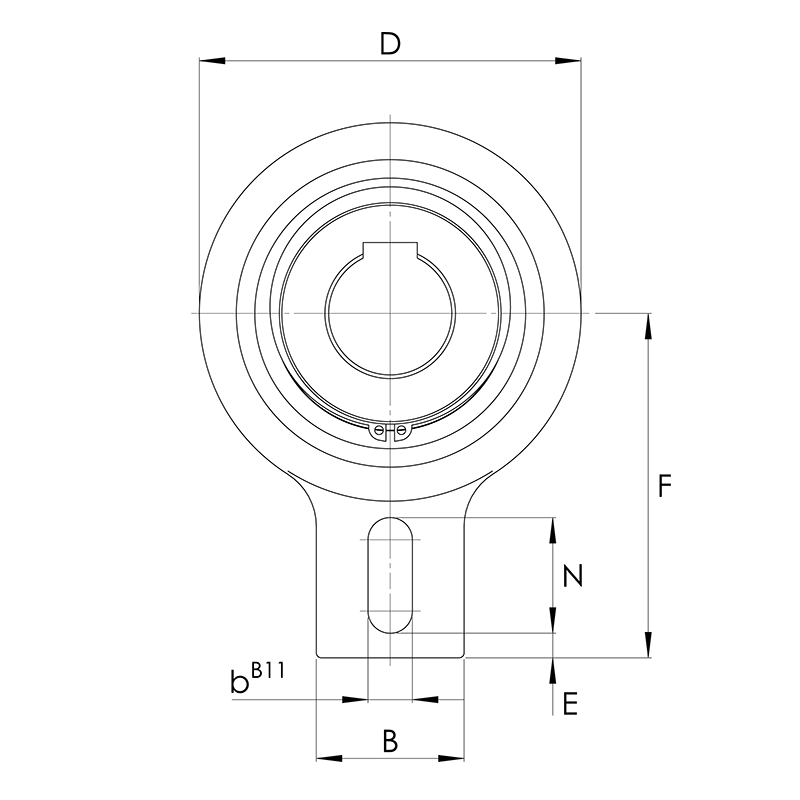

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| dH7 | D | F | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| dH7 | D | F | |||
| mm | mm | mm | |||
| 10176346 | AV20 | 20.00 | 83.00 | 90.00 | |
| 10176347 | AV25 | 25.00 | 83.00 | 90.00 | |
| 10176348 | AV30 | 30.00 | 118.00 | 110.00 | |
| 10176349 | AV35 | 35.00 | 118.00 | 110.00 | |
| 10176350 | AV40 | 40.00 | 118.00 | 110.00 | |
| 10176351 | AV45 | 45.00 | 155.00 | 140.00 | |
| 10176352 | AV50 | 50.00 | 155.00 | 140.00 | |
| 10176353 | AV55 | 55.00 | 155.00 | 140.00 | |
| 10176354 | AV60 | 60.00 | 155.00 | 140.00 | |
| 10176355 | AV70 | 70.00 | 155.00 | 140.00 | |
| 10176356 | AV80 | 80.00 | 190.00 | 155.00 | |
| 10176357 | AV90 | 90.00 | 260.00 | 220.00 | |
| 10176358 | AV100 | 100.00 | 260.00 | 220.00 | |
| 10176359 | AV110 | 110.00 | 260.00 | 220.00 | |
| 10176360 | AV120 | 120.00 | 300.00 | 260.00 | |
