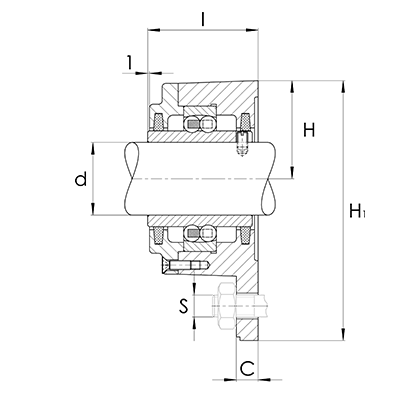

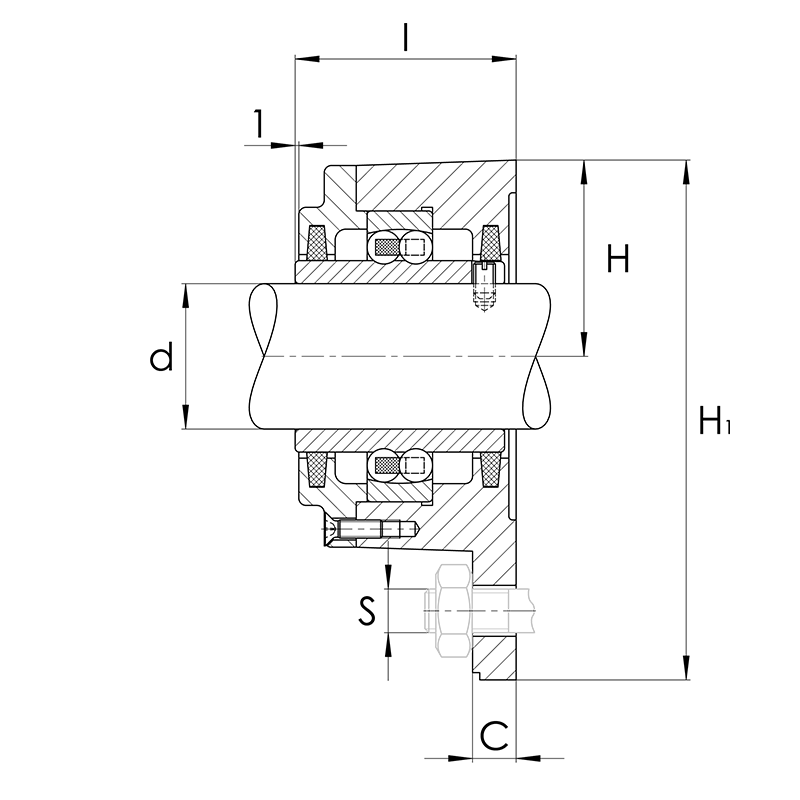

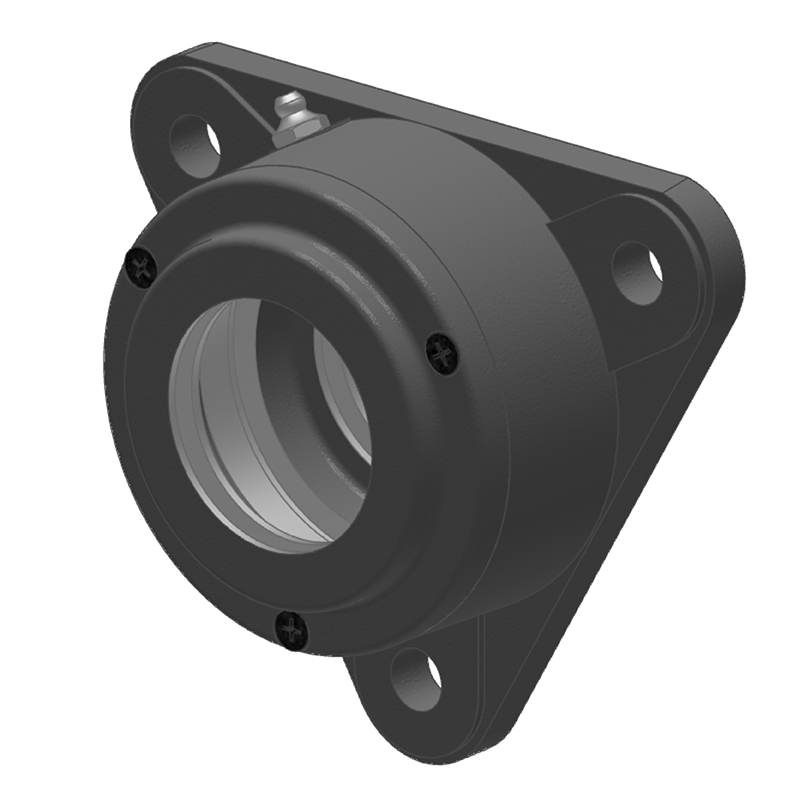

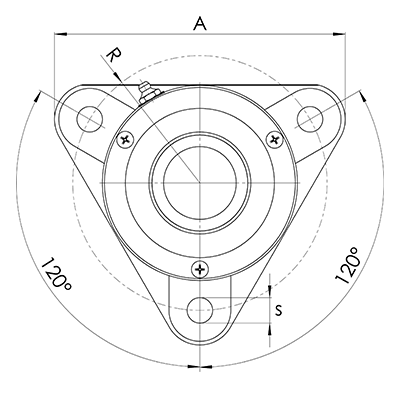

Flanschlagergehäuse Flanschlagergehäuse I-120
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | H1 | I | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | H1 | I | |||
| mm | mm | mm | |||
| 10056319 | I-120013 | 20,00 | 93,00 | 42,00 | |
| 10056320 | I-120014 | 25,00 | 100,00 | 46,00 | |
| 10056321 | I-120015 | 30,00 | 117,00 | 50,00 | |
| 10056322 | I-120016 | 35,00 | 130,00 | 54,00 | |
| 10056323 | I-120017 | 40,00 | 143,00 | 60,00 | |
| 10056324 | I-120018 | 45,00 | 160,00 | 63,00 | |
| 10056325 | I-120019 | 50,00 | 160,00 | 63,00 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
