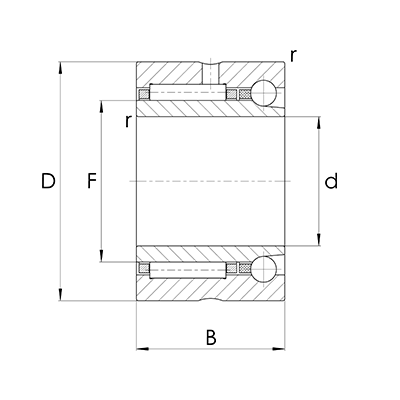

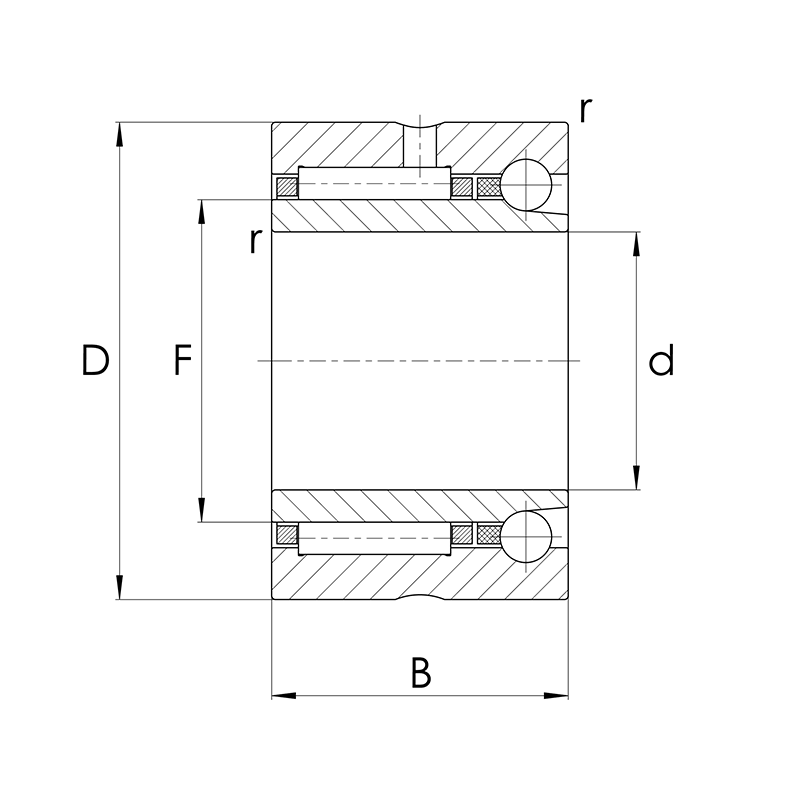

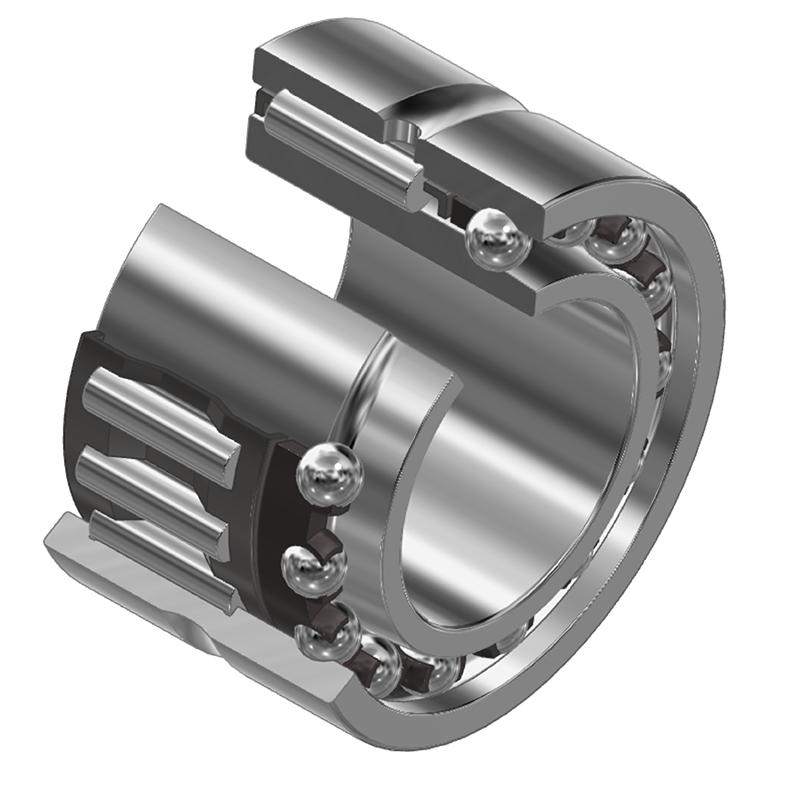

NKIA
Needle angular contact ball bearing nach DIN 5492
Description Main dimensions Functions d D B mm mm mm SKU Description Main dimensions Functions d D B mm mm mm 10080618 NKIA5901 12.00 24.00 16.00 10080619 NKIA5902 15.00 28.00 18.00 10080620 NKIA5903 17.00 30.00 18.00 10080621 NKIA5904 20.00 37.00 23.00 10080617 NKIA59/22 22.00 39.00 23.00 10080622 NKIA5905 25.00 42.00 23.00 10080623 NKIA5906 30.00 47.00 23.00 10080624 NKIA5907 35.00 55.00 27.00 10080625 NKIA5908 40.00 62.00 30.00 10080626 NKIA5909 45.00 68.00 30.00 10080627 NKIA5910 50.00 72.00 30.00 10080628 NKIA5911 55.00 80.00 34.00 10080629 NKIA5912 60.00 85.00 34.00 10080630 NKIA5913 65.00 90.00 34.00 10080631 NKIA5914 70.00 100.00 40.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -

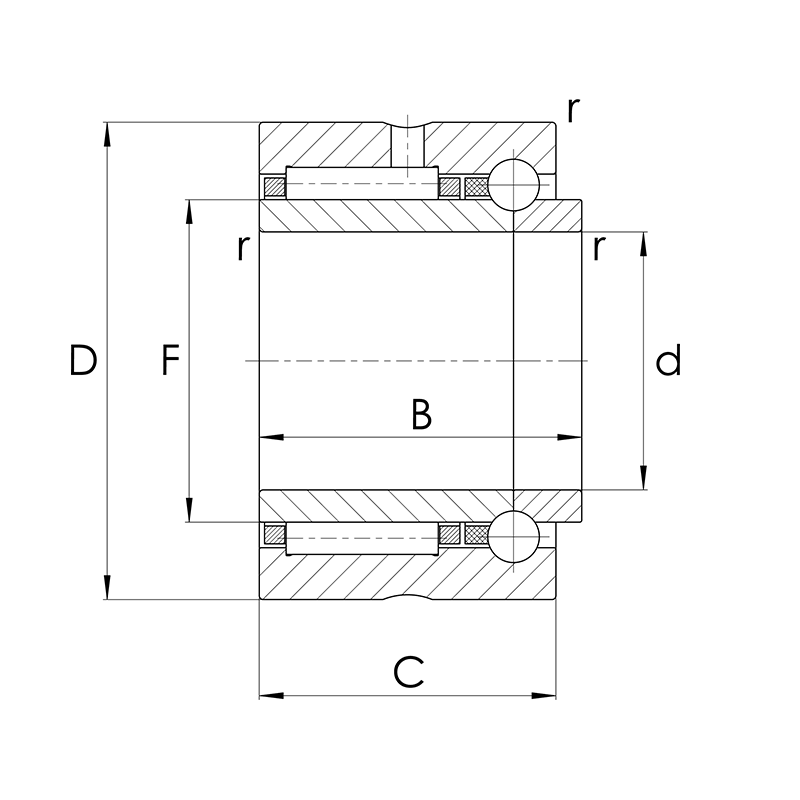

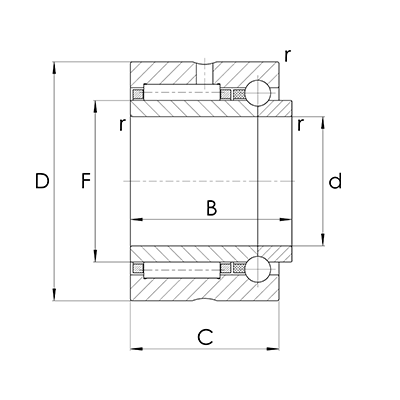

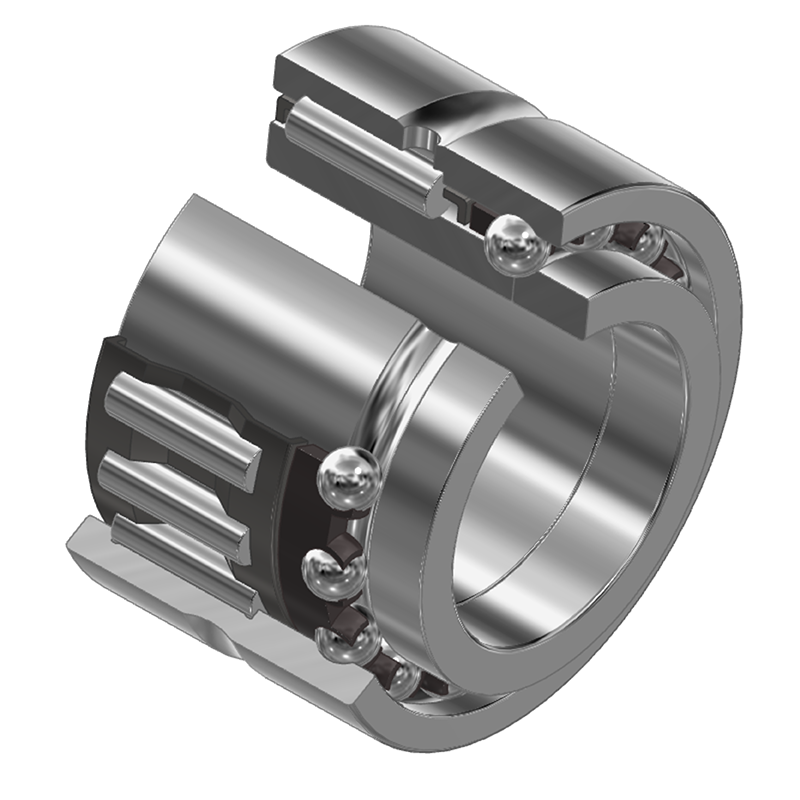

NKIB
Needle angular contact ball bearing according to 5492
Description Main dimensions Functions d D B mm mm mm SKU Description Main dimensions Functions d D B mm mm mm 10080633 NKIB5901 12.00 24.00 17.50 10080634 NKIB5902 15.00 28.00 20.00 10080635 NKIB5903 17.00 30.00 20.00 10080636 NKIB5904 20.00 37.00 25.00 10080632 NKIB59/22 22.00 39.00 25.00 10080637 NKIB5905 25.00 42.00 25.00 10080638 NKIB5906 30.00 47.00 25.00 10080639 NKIB5907 35.00 55.00 30.00 10080640 NKIB5908 40.00 62.00 34.00 10080641 NKIB5909 45.00 68.00 34.00 10080642 NKIB5910 50.00 72.00 34.00 10080643 NKIB5911 55.00 80.00 38.00 10080644 NKIB5912 60.00 85.00 38.00 10080645 NKIB5913 65.00 90.00 38.00 10080646 NKIB5914 70.00 100.00 45.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
Combined needle bearings are not self-retaining. The bearing parts (axial part / radial part) are coordinated with one another and must not be interchanged during assembly. The bearing is secured by a snug fit on the shaft and in the housing.
