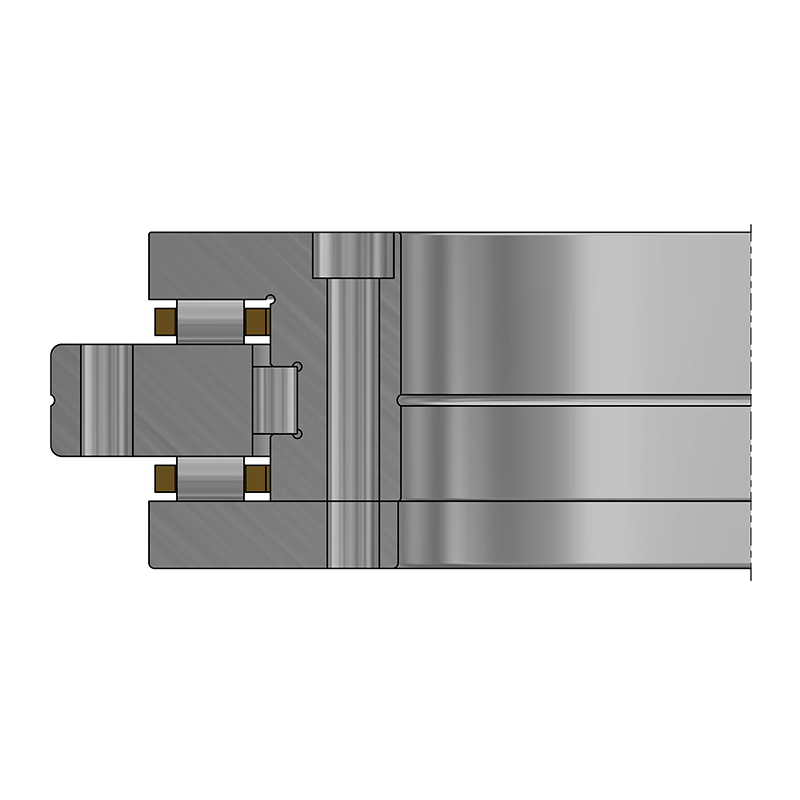

Axial radial bearing - two-sided acting

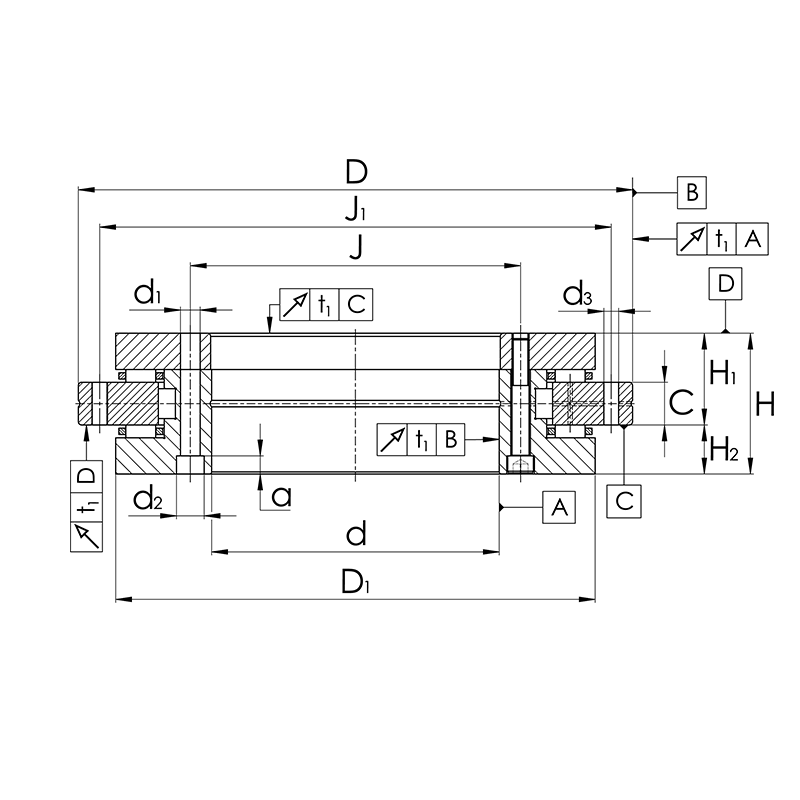

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | H | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | H | |||
| mm | mm | mm | |||
| 10172504 | YRTC100 | 100.00 | 185.00 | 38.00 | |
| 10172506 | YRTC120 | 120.00 | 210.00 | 40.00 | |
| 10172507 | YRTC150 | 150.00 | 240.00 | 40.00 | |
| 10172508 | YRTC180 | 180.00 | 280.00 | 43.00 | |
| 10172509 | YRTC200 | 200.00 | 300.00 | 45.00 | |
| 10172510 | YRTC260 | 260.00 | 385.00 | 55.00 | |
| 10172511 | YRTC325 | 325.00 | 450.00 | 60.00 | |
| 10172512 | YRTC395 | 395.00 | 525.00 | 65.00 | |
| 10172513 | YRTC460 | 460.00 | 600.00 | 70.00 | |
| 10172514 | YRTC580 | 580.00 | 750.00 | 90.00 | |
| 10172515 | YRTC650 | 650.00 | 870.00 | 122.00 | |
| 10172516 | YRTC850 | 850.00 | 1,095.00 | 124.00 | |
| 10172461 | YRTC950 | 950.00 | 1,200.00 | 132.00 | |
| 10172505 | YRTC1030 | 1,030.00 | 1,300.00 | 145.00 | |
