Spherical roller bearings - Series
-

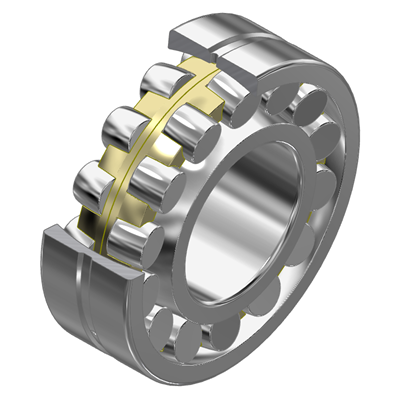

Spherical roller bearing according to DIN 635-2, DIN 616 ISO 15:1998
-

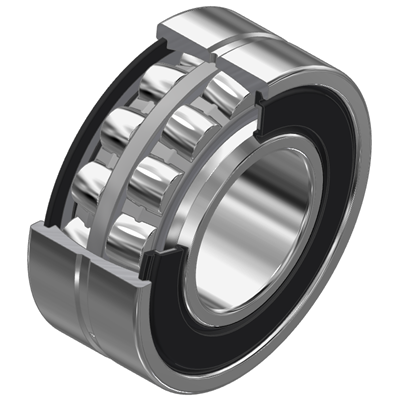

Spherical roller bearing - sealed, deviating from 635-2, DIN 616 ISO 15:1998
-

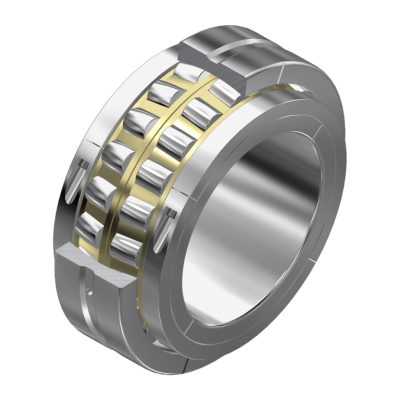

Spherical roller bearing (divided), deviating from 635-2, DIN 616 ISO 15:1998

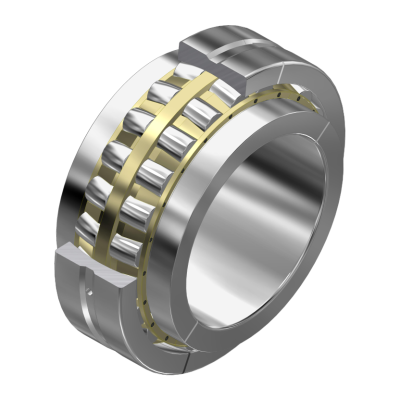

222S
Spherical roller bearing (divided) 222, Dimensional and running tolerances correspond to tolerance class PN according to DIN 620-2, main dimensions (inner diameter, outer diameter and outer ring width) correspond to those of the unsplit spherical roller bearings.
230S
Spherical roller bearing (divided) 230, Dimensional and running tolerances correspond to tolerance class PN according to DIN 620-2, main dimensions (inner diameter, outer diameter and outer ring width) correspond to those of the unsplit spherical roller bearings.
231S
Spherical roller bearing (divided) 231, Dimensional and running tolerances correspond to tolerance class PN according to DIN 620-2, main dimensions (inner diameter, outer diameter and outer ring width) correspond to those of the unsplit spherical roller bearings.
239S
Spherical roller bearing (divided) 239, Dimensional and running tolerances correspond to tolerance class PN according to DIN 620-2, main dimensions (inner diameter, outer diameter and outer ring width) correspond to those of the unsplit spherical roller bearings.
240S
Spherical roller bearing (divided) 240, Dimensional and running tolerances correspond to tolerance class PN according to DIN 620-2, main dimensions (inner diameter, outer diameter and outer ring width) correspond to those of the unsplit spherical roller bearings.
241S
Spherical roller bearing (divided) 241, Dimensional and running tolerances correspond to tolerance class PN according to DIN 620-2, main dimensions (inner diameter, outer diameter and outer ring width) correspond to those of the unsplit spherical roller bearings.
-
Versions of spherical roller bearings
Our range of HFH spherical roller bearings includes spherical roller bearings in open basic design, sealed spherical roller bearings and spherical roller bearings for vibrating machines. HFH spherical roller bearings are manufactured with brass and sheet steel cages and various rib guides as standard. To ensure optimum lubrication, the spherical roller bearings have a circumferential lubrication groove with lubrication holes. The spherical roller bearings manufactured with cylindrical and tapered bores can be used up to an operating temperature of 200°C. The main dimensions of the spherical roller bearings correspond to the specifications in DIN 635-2 and DIN 616 / ISO 15:1998.
