  • GIHRK-DO

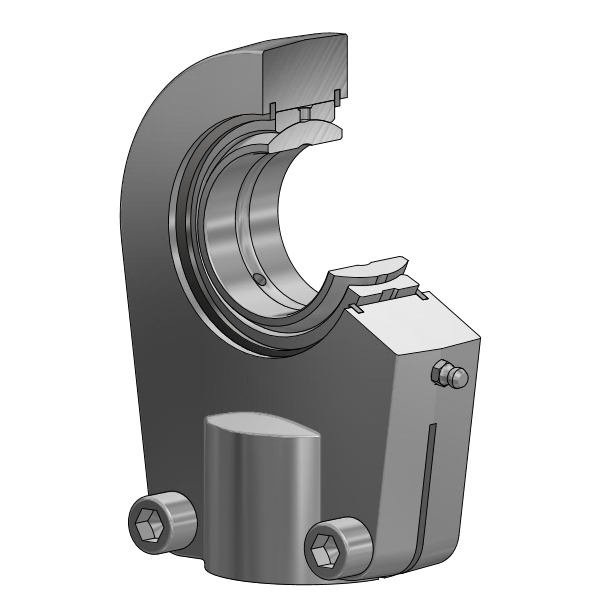

    Wartungspflichtiger Hydraulik-Gelenkkopf, Gleitpaarung Stahl/Stahl, mit Gewindeklemmeinrichtung

    • Hydraulik Gelenkkopf GIHRK-DO
      Hydraulik Gelenkkopf GIHRK-DO
    • Hydraulik Gelenkkopf GIHRK-DO
      Hydraulik Gelenkkopf GIHRK-DO
    • Hydraulik Gelenkkopf GIHRK-DO
      Hydraulik Gelenkkopf GIHRK-DO

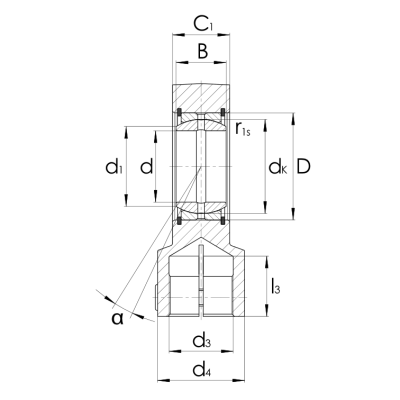

      Description Main dimensions Functions
      d D B
      mm mm mm
      SKU Description Main dimensions Functions
      d D B
      mm mm mm
      10040658 GIHRK20-DO 20,00 35,00 16,00
      10040659 GIHRK25-DO 25,00 42,00 20,00
      10040660 GIHRK30-DO 30,00 47,00 22,00
      10040661 GIHRK35-DO 35,00 55,00 25,00
      10040662 GIHRK40-DO 40,00 62,00 28,00
      10040663 GIHRK50-DO 50,00 75,00 35,00
      10040664 GIHRK60-DO 60,00 90,00 44,00
      10040665 GIHRK70-DO 70,00 105,00 49,00
      10040666 GIHRK80-DO 80,00 120,00 55,00
      10040667 GIHRK90-DO 90,00 130,00 60,00
      10040655 GIHRK100-DO 100,00 150,00 70,00
      10040656 GIHRK110-DO 110,00 160,00 70,00
      10040657 GIHRK120-DO 120,00 180,00 85,00
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

    • GIHLK-DO

      Wartungspflichtiger Hydraulik-Gelenkkopf, Gleitpaarung Stahl/Stahl, mit Gewindeklemmeinrichtung

      • Hydraulik Gelenkkopf GIHLK-DO
        Hydraulik Gelenkkopf GIHLK-DO
      • Hydraulik Gelenkkopf GIHLK-DO
        Hydraulik Gelenkkopf GIHLK-DO
      • Hydraulik Gelenkkopf GIHLK-DO
        Hydraulik Gelenkkopf GIHLK-DO
        Description Main dimensions Functions
        d D B
        mm mm mm
        SKU Description Main dimensions Functions
        d D B
        mm mm mm
        10174067 GIHLK20-DO 20,00 35,00 16,00
        10174068 GIHLK25-DO 25,00 42,00 20,00
        10174069 GIHLK30-DO 30,00 47,00 22,00
        10174070 GIHLK35-DO 35,00 55,00 25,00
        10174071 GIHLK40-DO 40,00 62,00 28,00
        10174072 GIHLK50-DO 50,00 75,00 35,00
        10174073 GIHLK60-DO 60,00 90,00 44,00
        10174074 GIHLK70-DO 70,00 105,00 49,00
        10174075 GIHLK80-DO 80,00 120,00 55,00
        10174076 GIHLK90-DO 90,00 130,00 60,00
        10174064 GIHLK100-DO 100,00 150,00 70,00
        10174065 GIHLK110-DO 110,00 160,00 70,00
        10174066 GIHLK120-DO 120,00 180,00 85,00
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
