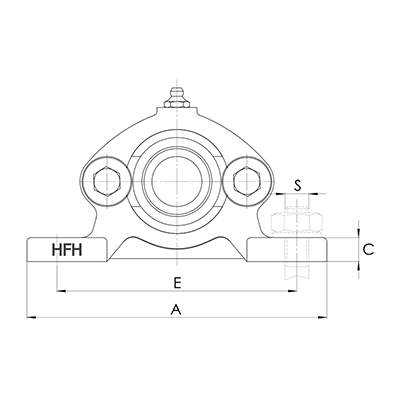

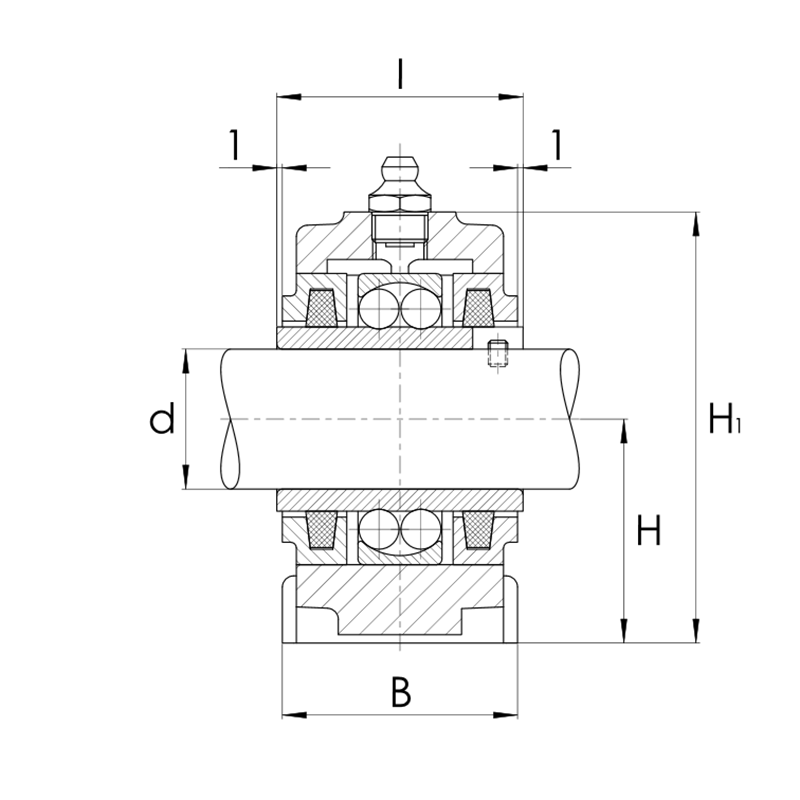

  • TN200

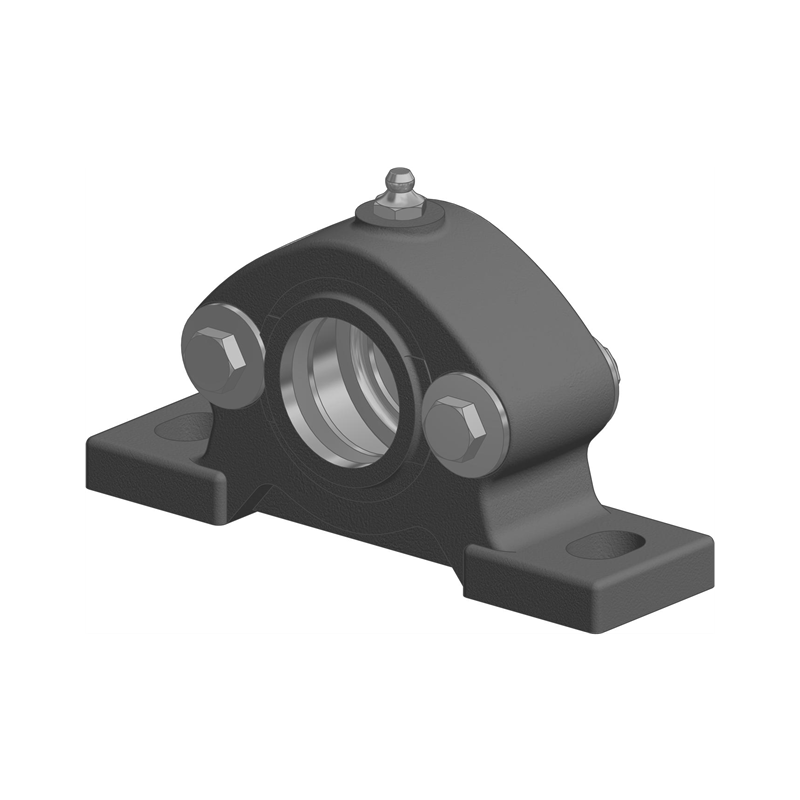

    Förderwagen-Lagergehäuse

    • TN200
      TN200
    • TN200
      TN200
    • TN200
      TN200
    • TN200
      TN200
      Description Main dimensions Functions
      d H B
      mm mm mm
      SKU Description Main dimensions Functions
      d H B
      mm mm mm
      10061671 TN204-RAL7011 20,00 40,00 42,00
      10061672 TN205-RAL7011 25,00 40,00 42,00
      10061673 TN206-RAL7011 30,00 50,00 48,00
      10061674 TN207-RAL7011 35,00 50,00 48,00
      10061675 TN208-RAL7011 40,00 55,00 52,00
      10061676 TN209-RAL7011 45,00 60,00 56,00
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

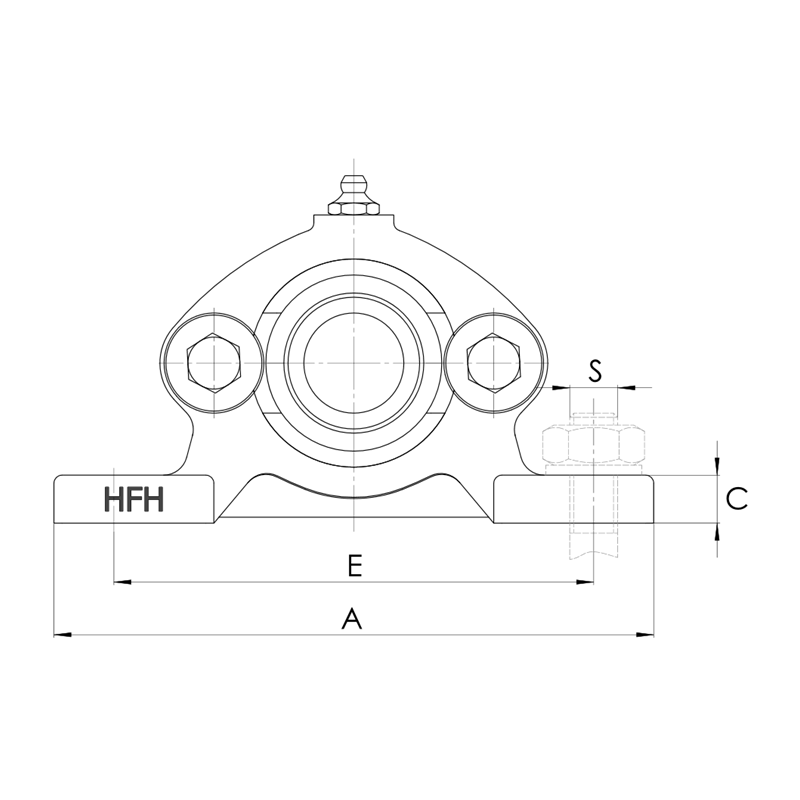

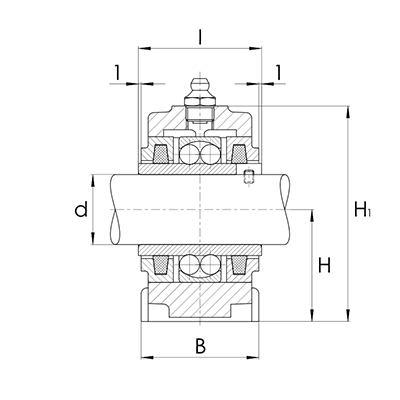

    • TN300

      Förderwagen-Lagergehäuse

      • TN300
        TN300
      • TN300
        TN300
      • TN300
        TN300
      • TN300
        TN300
        Description Main dimensions Functions
        d H B
        mm mm mm
        SKU Description Main dimensions Functions
        d H B
        mm mm mm
        10061680 TN304-RAL7011 20,00 40,00 42,00
        10061681 TN305-RAL7011 25,00 50,00 48,00
        10061682 TN306-RAL7011 30,00 50,00 48,00
        10061683 TN307-RAL7011 35,00 55,00 52,00
        10061684 TN308-RAL7011 40,00 60,00 56,00
        10061685 TN309-RAL7011 45,00 65,00 62,00
        10061686 TN310-RAL7011 50,00 70,00 66,00
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
