  • GIHNRK-LO

    Wartungspflichtiger Hydraulik-Gelenkkopf nach DIN 24338, ISO 6982, Gleitpaarung Stahl/Stahl, für Norm-Hydraulikzylinder nach Cetop-Empfehlung RP 88 H ISO/DIS 6020 I, ISO/DIS 6022

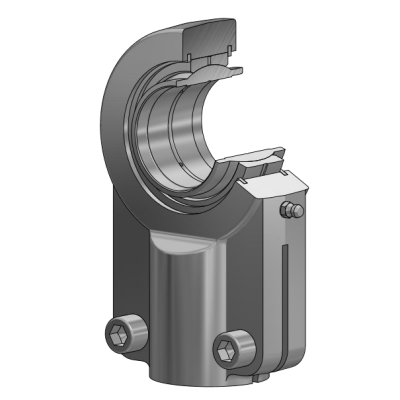

    • Hydraulik Gelenkkopf GIHNRK-LO
      Hydraulik Gelenkkopf GIHNRK-LO
    • Hydraulik Gelenkkopf GIHNRK-LO
      Hydraulik Gelenkkopf GIHNRK-LO
    • Hydraulik Gelenkkopf GIHNRK-LO
      Hydraulik Gelenkkopf GIHNRK-LO
      Description Main dimensions Functions
      d D B
      mm mm mm
      SKU Description Main dimensions Functions
      d D B
      mm mm mm
      10040641 GIHNRK12-LO 12,00 22,00 12,00
      10040643 GIHNRK16-LO 16,00 28,00 16,00
      10040645 GIHNRK20-LO 20,00 35,00 20,00
      10040647 GIHNRK25-LO 25,00 42,00 25,00
      10040648 GIHNRK32-LO 32,00 52,00 32,00
      10040649 GIHNRK40-LO 40,00 62,00 40,00
      10040650 GIHNRK50-LO 50,00 75,00 50,00
      10040651 GIHNRK63-LO 63,00 95,00 63,00
      10040652 GIHNRK70-LO 70,00 105,00 70,00
      10040653 GIHNRK80-LO 80,00 120,00 80,00
      10040654 GIHNRK90-LO 90,00 130,00 90,00
      10040639 GIHNRK100-LO 100,00 150,00 100,00
      10040640 GIHNRK110-LO 110,00 160,00 110,00
      10040642 GIHNRK125-LO 125,00 180,00 125,00
      10040644 GIHNRK160-LO 160,00 230,00 160,00
      10040646 GIHNRK200-LO 200,00 290,00 200,00
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

    • GIHNLK-LO

      Wartungspflichtiger Hydraulik-Gelenkkopf nach DIN 24338, ISO 6982, Gleitpaarung Stahl/Stahl, für Norm-Hydraulikzylinder nach Cetop-Empfehlung RP 88 H ISO/DIS 6020 I, ISO/DIS 6022

      • Hydraulik Gelenkkopf GIHNLK-LO
        Hydraulik Gelenkkopf GIHNLK-LO
      • Hydraulik Gelenkkopf GIHNLK-LO
        Hydraulik Gelenkkopf GIHNLK-LO
      • Hydraulik Gelenkkopf GIHNLK-LO
        Hydraulik Gelenkkopf GIHNLK-LO
        Description Main dimensions Functions
        d D B
        mm mm mm
        SKU Description Main dimensions Functions
        d D B
        mm mm mm
        10174080 GIHNLK12-LO 12,00 22,00 12,00
        10174082 GIHNLK16-LO 16,00 28,00 16,00
        10174084 GIHNLK20-LO 20,00 35,00 20,00
        10174085 GIHNLK25-LO 25,00 42,00 25,00
        10174086 GIHNLK32-LO 32,00 52,00 32,00
        10174087 GIHNLK40-LO 40,00 62,00 40,00
        10174088 GIHNLK50-LO 50,00 75,00 50,00
        10174089 GIHNLK63-LO 63,00 95,00 63,00
        10174090 GIHNLK70-LO 70,00 105,00 70,00
        10174091 GIHNLK80-LO 80,00 120,00 80,00
        10174092 GIHNLK90-LO 90,00 130,00 90,00
        10174077 GIHNLK100-LO 100,00 150,00 100,00
        10174078 GIHNLK110-LO 110,00 160,00 110,00
        10174079 GIHNLK125-LO 125,00 180,00 125,00
        10174081 GIHNLK160-LO 160,00 230,00 160,00
        10174083 GIHNLK200-LO 200,00 290,00 200,00
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
