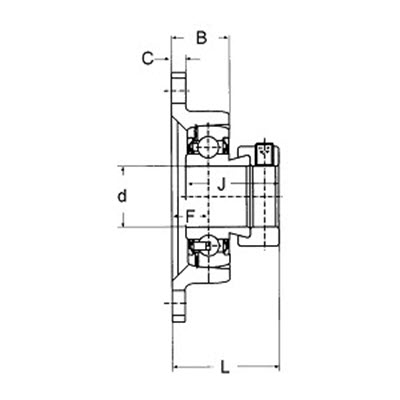

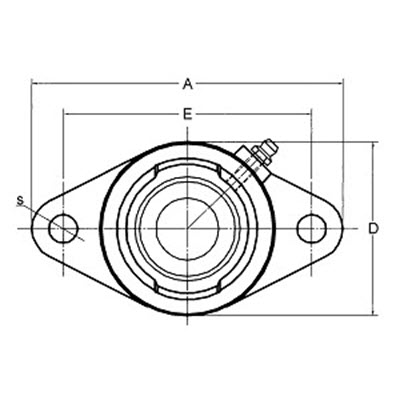

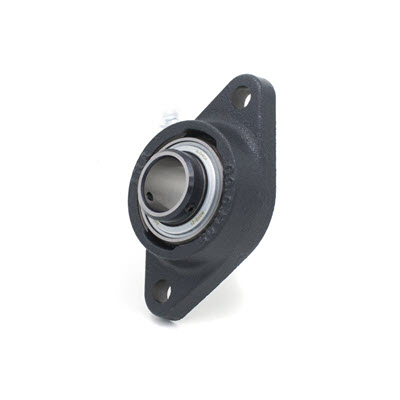

Flanschlager OWF (PCJT / RCJT / TCJT), ähnlich INA
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | A | L | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | A | L | |||
| mm | mm | mm | |||
| 10195446 | OWF12 | 12,00 | 99,00 | 39,60 | |
| 10195447 | OWF15 | 15,00 | 99,00 | 39,60 | |
| 10195448 | OWF17 | 17,00 | 99,00 | 39,60 | |
| 10195449 | OWF20 | 20,00 | 112,00 | 44,00 | |
| 10195450 | OWF25 | 25,00 | 124,00 | 43,50 | |
| 10195451 | OWF30 | 30,00 | 142,00 | 49,50 | |
| 10195452 | OWF35 | 35,00 | 155,00 | 51,90 | |
| 10195453 | OWF40 | 40,00 | 172,00 | 58,50 | |
| 10195454 | OWF45 | 45,00 | 180,00 | 58,00 | |
| 10195455 | OWF50 | 50,00 | 190,00 | 62,30 | |
| 10195456 | OWF55 | 55,00 | 224,00 | 68,90 | |
| 10195457 | OWF60 | 60,00 | 238,00 | 77,10 | |
