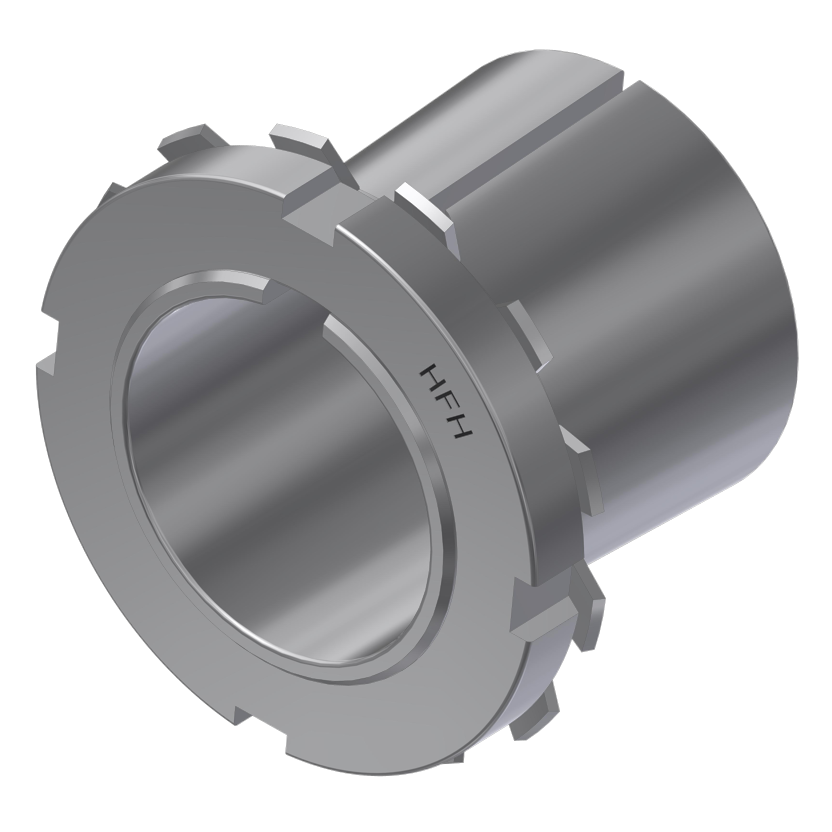

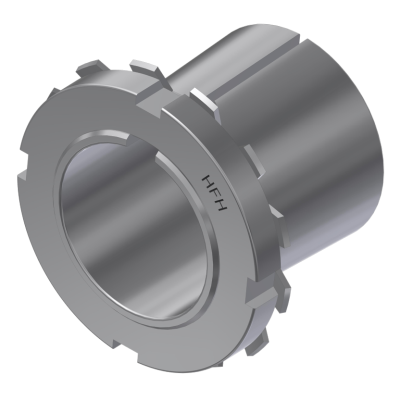

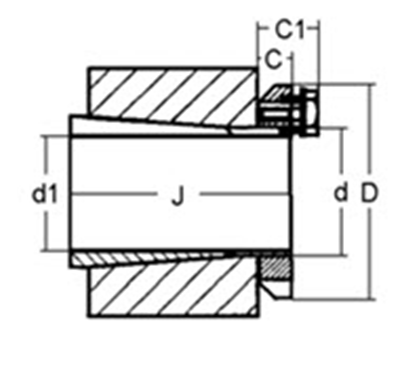

Adapter sleeve H3000 according to DIN 5145
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | d[[sub]]1[[/sub]] | J | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | d[[sub]]1[[/sub]] | J | |||
| mm | mm | mm | |||
| 10069994 | H3024 | 120.00 | 110.00 | 72.00 | |
| 10069998 | H3026 | 130.00 | 115.00 | 80.00 | |
| 10070002 | H3028 | 140.00 | 125.00 | 82.00 | |
| 10070006 | H3030 | 150.00 | 135.00 | 87.00 | |
| 10070010 | H3032 | 160.00 | 140.00 | 93.00 | |
| 10070014 | H3034 | 170.00 | 150.00 | 101.00 | |
| 10070018 | H3036 | 180.00 | 160.00 | 109.00 | |
| 10070022 | H3038 | 190.00 | 170.00 | 112.00 | |
| 10070030 | H3040 | 200.00 | 180.00 | 120.00 | |
| 30001032 | H3044 | 220.00 | 200.00 | 128.00 | |
| 10070038 | H3048 | 240.00 | 220.00 | 133.00 | |
| 30001033 | H3052 | 260.00 | 240.00 | 147.00 | |
| 10070050 | H3056 | 280.00 | 260.00 | 152.00 | |
| 10070058 | H3060 | 300.00 | 280.00 | 168.00 | |
| 30001034 | H3064 | 320.00 | 300.00 | 171.00 | |
| 30001035 | H3068 | 340.00 | 320.00 | 187.00 | |
| 30001036 | H3072 | 360.00 | 340.00 | 188.00 | |
| 30001037 | H3076 | 380.00 | 360.00 | 193.00 | |
| 30001038 | H3080 | 400.00 | 380.00 | 210.00 | |
| 30001039 | H3084 | 420.00 | 400.00 | 212.00 | |
| 30001040 | H3088 | 440.00 | 410.00 | 228.00 | |
| 30001041 | H3092 | 460.00 | 430.00 | 234.00 | |
| 30001042 | H3096 | 480.00 | 450.00 | 237.00 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
