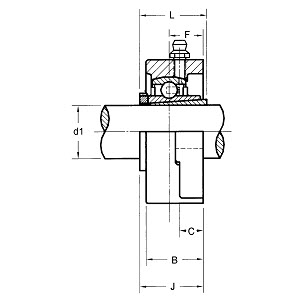

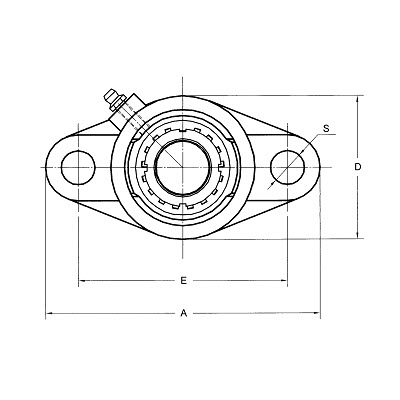

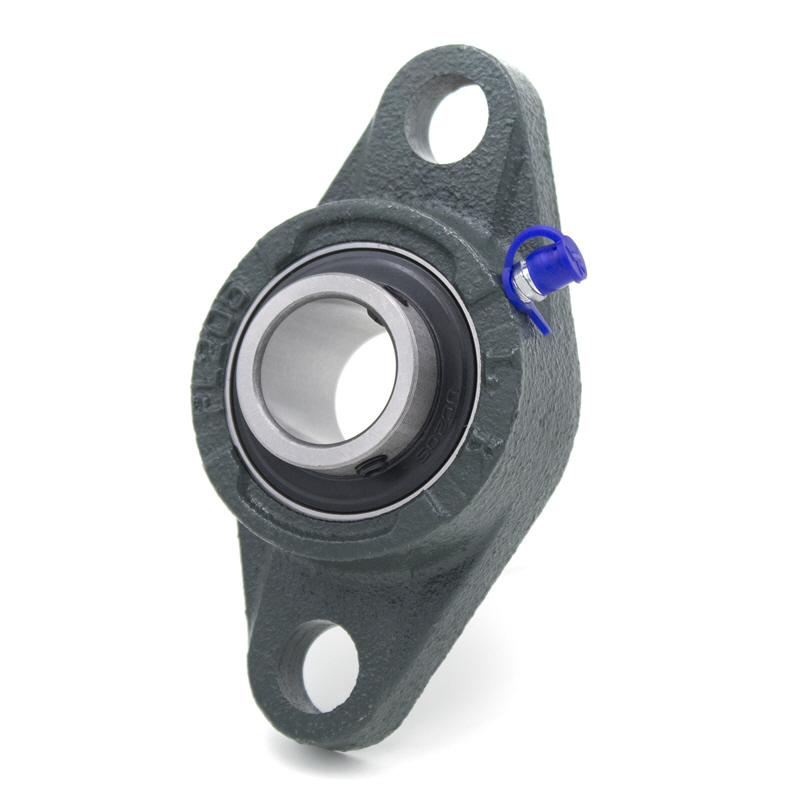

Flanschlagereinheit UKFL 200
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | B | A | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | B | A | |||
| mm | mm | mm | |||
| 30000632 | UKFL205+H2305 | 20,00 | 27,00 | 130,00 | |
| 30000633 | UKFL206+H2306 | 25,00 | 31,00 | 148,00 | |
| 30000634 | UKFL207+H2307 | 30,00 | 34,00 | 161,00 | |
| 30000635 | UKFL208+H2308 | 35,00 | 36,00 | 175,00 | |
| 30000636 | UKFL209+H2309 | 40,00 | 38,00 | 188,00 | |
| 30000637 | UKFL210+H2310 | 45,00 | 40,00 | 197,00 | |
| 30000638 | UKFL211+H2311 | 50,00 | 43,00 | 224,00 | |
| 30000639 | UKFL212+H2312 | 55,00 | 48,00 | 250,00 | |
| 30000640 | UKFL213+H2313 | 60,00 | 50,00 | 258,00 | |
| 30000641 | UKFL215+H2315 | 65,00 | 56,00 | 275,00 | |
| 30000642 | UKFL216+H2316 | 70,00 | 58,00 | 290,00 | |
| 30000643 | UKFL217+H2317 | 75,00 | 63,00 | 305,00 | |
| 30000644 | UKFL218+H2318 | 80,00 | 68,00 | 320,00 | |
