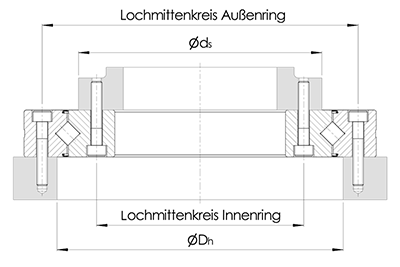

Crossed roller bearings RU - with one-piece inner and outer ring

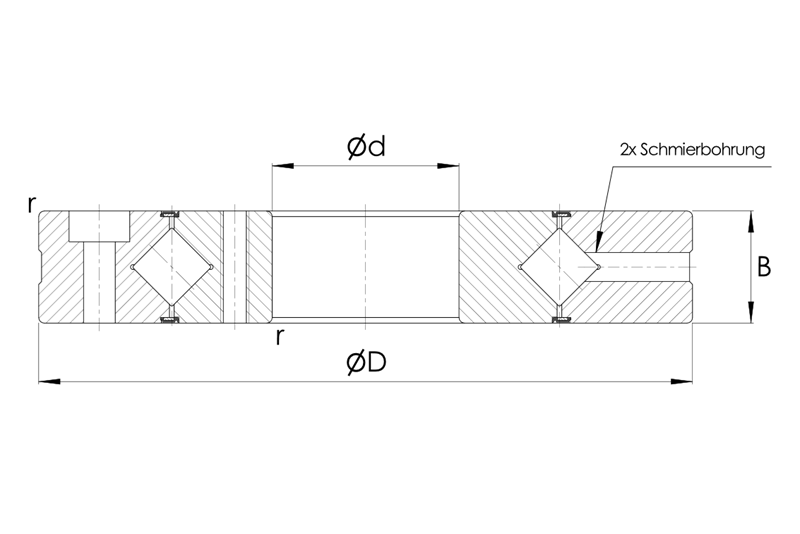

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10280015 | RU42-C0-P5 | 20.00 | 70.00 | 12.00 -0.08 |
|
| 10280183 | RU66-C0-P5 | 35.00 | 95.00 | 15.00 -0.08 |
|
| 10280351 | RU85-C0-P5 | 55.00 | 120.00 | 15.00 -0.08 |
|
| 10311501 | RU124-C0-P5 | 80.00 | 165.00 | 22.00 -0.08 |
|
| 10311694 | RU148-C0-P5 | 90.00 | 210.00 | 25.00 -0.08 |
|
| 10311886 | RU178-C0-P5 | 115.00 | 240.00 | 28.00 -0.10 |
|
| 10312078 | RU228-C0-P5 | 160.00 | 295.00 | 35.00 -0.10 |
|
| 10312270 | RU297-C0-P5 | 210.00 | 380.00 | 40.00 -0.10 |
|
| 10312462 | RU445-C0-P5 | 350.00 | 540.00 | 45.00 -0.15 |
|
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
