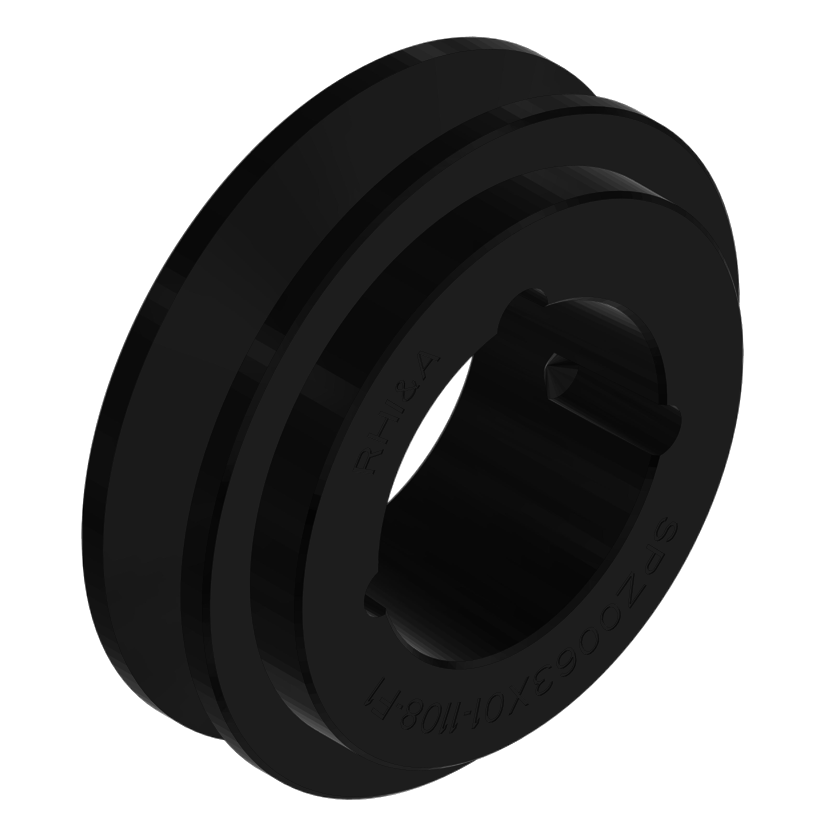

Keilriemenscheibe SPZ x 05
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| L | O | P | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| L | O | P | |||
| mm | mm | mm | |||
| 10051620 | SPZ0090x05-1610-F8 | 25,00 | 94,00 | 90,00 | |
| 10051625 | SPZ0095x05-1610-F8 | 25,00 | 99,00 | 95,00 | |
| 10051615 | SPZ0085x05-1610-F8 | 25,00 | 89,00 | 85,00 | |
| 10051630 | SPZ0100x05-2012-F8 | 32,00 | 104,00 | 100,00 | |
| 10051636 | SPZ0106x05-2012-F8 | 32,00 | 110,00 | 106,00 | |
| 10051642 | SPZ0112x05-2012-F8 | 32,00 | 116,00 | 112,00 | |
| 10051648 | SPZ0118x05-2012-F8 | 32,00 | 122,00 | 118,00 | |
| 10051654 | SPZ0125x05-2012-F8 | 32,00 | 129,00 | 125,00 | |
| 10051694 | SPZ0180x05-2517-F2 | 45,00 | 184,00 | 180,00 | |
| 10051743 | SPZ0355x05-2517-F5 | 45,00 | 359,00 | 355,00 | |
| 10051736 | SPZ0315x05-2517-F5 | 45,00 | 319,00 | 315,00 | |
| 10051729 | SPZ0280x05-2517-F6 | 45,00 | 284,00 | 280,00 | |
| 10051722 | SPZ0250x05-2517-F6 | 45,00 | 254,00 | 250,00 | |
| 10051715 | SPZ0224x05-2517-F6 | 45,00 | 228,00 | 224,00 | |
| 10051708 | SPZ0200x05-2517-F3 | 45,00 | 204,00 | 200,00 | |
| 10051701 | SPZ0190x05-2517-F3 | 45,00 | 194,00 | 190,00 | |
| 10051687 | SPZ0170x05-2517-F2 | 45,00 | 174,00 | 170,00 | |
| 10051680 | SPZ0160x05-2517-F2 | 45,00 | 164,00 | 160,00 | |
| 10051673 | SPZ0150x05-2517-F2 | 45,00 | 154,00 | 150,00 | |
| 10051666 | SPZ0140x05-2517-F2 | 45,00 | 144,00 | 140,00 | |
| 10051660 | SPZ0132x05-2517-F8 | 45,00 | 136,00 | 132,00 | |
| 10051750 | SPZ0400x05-3020-F5 | 51,00 | 404,00 | 400,00 | |
| 10051757 | SPZ0450x05-3020-F5 | 51,00 | 454,00 | 450,00 | |
| 10051764 | SPZ0500x05-3030-F4 | 76,00 | 504,00 | 500,00 | |
| 10051770 | SPZ0630x05-3030-F4 | 76,00 | 634,00 | 630,00 | |
| 10141066 | SPZ0800x05-3535-F4 | 89,00 | 804,00 | 800,00 | |
