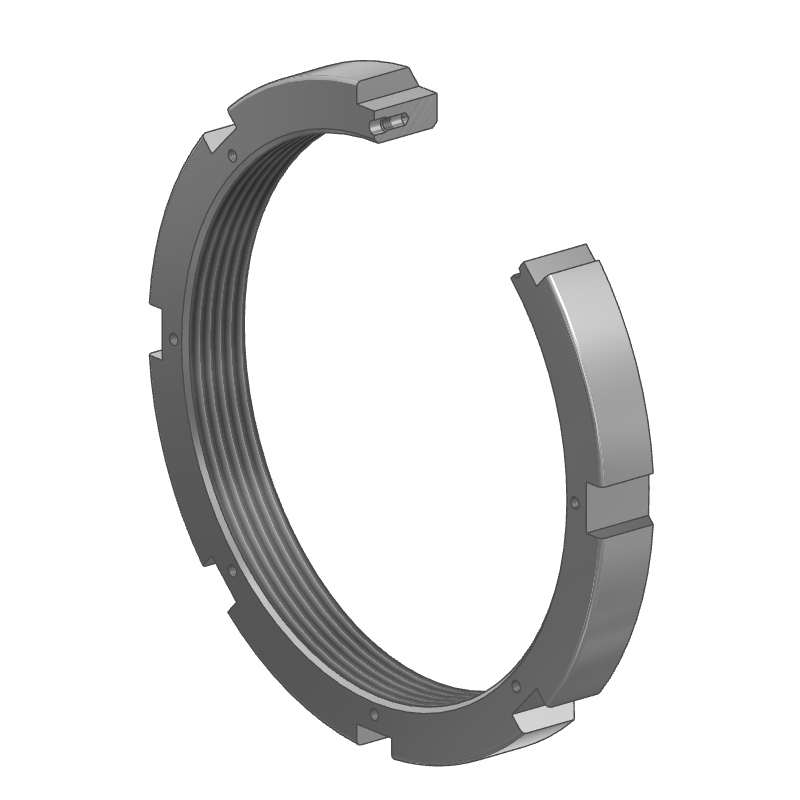

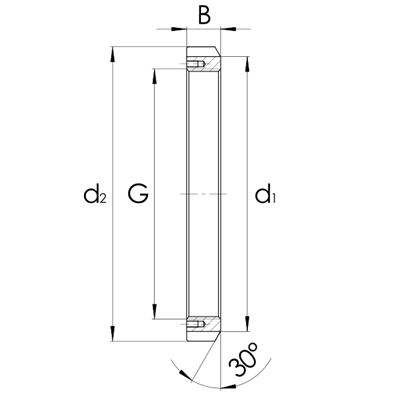

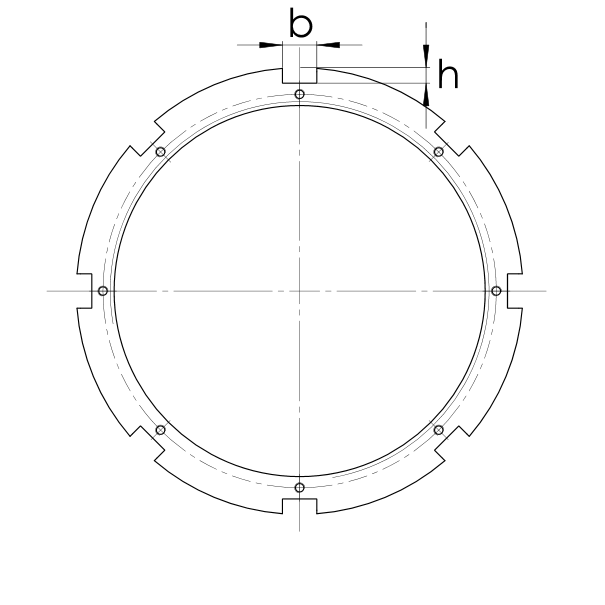

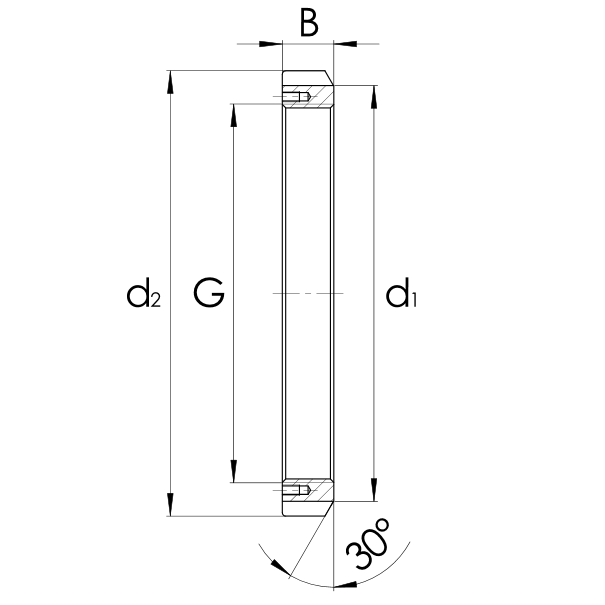

Lock nut HM
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| G | d[[sub]]2[[/sub]] | B | ||
| mm | mm | |||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| G | d[[sub]]2[[/sub]] | B | |||
| mm | mm | ||||
| 10039731 | HM3044 | Tr220x4 | 260.00 | 30.00 | |
| 10039780 | HM44T | Tr220x4 | 280.00 | 32.00 | |
| 10039765 | HM3144 | Tr220x4 | 280.00 | 32.00 | |
| 10039732 | HM3048 | Tr240x4 | 290.00 | 34.00 | |
| 10039781 | HM48T | Tr240x4 | 300.00 | 34.00 | |
| 10039766 | HM3148 | Tr240x4 | 300.00 | 34.00 | |
| 10039733 | HM3052 | Tr260x4 | 310.00 | 34.00 | |
| 10039767 | HM3152 | Tr260x4 | 330.00 | 36.00 | |
| 10039782 | HM56T | Tr280x4 | 350.00 | 36.00 | |
| 10039734 | HM3056 | Tr280x4 | 330.00 | 38.00 | |
| 10039768 | HM3156 | Tr280x4 | 350.00 | 38.00 | |
| 10039769 | HM3160 | Tr300x4 | 380.00 | 40.00 | |
| 10039735 | HM3060 | Tr300x4 | 360.00 | 42.00 | |
| 10039736 | HM3064 | Tr320x5 | 380.00 | 42.00 | |
| 10039770 | HM3164 | Tr320x5 | 400.00 | 42.00 | |
| 10039771 | HM3168 | Tr340x5 | 440.00 | 55.00 | |
| 10039737 | HM3068 | Tr340x5 | 400.00 | 45.00 | |
| 10039738 | HM3072 | Tr360x5 | 420.00 | 45.00 | |
| 10039772 | HM3172 | Tr360x5 | 460.00 | 58.00 | |
| 10039773 | HM3176 | Tr380x5 | 490.00 | 60.00 | |
| 10039739 | HM3076 | Tr380x5 | 450.00 | 48.00 | |
| 10039774 | HM3180 | Tr400x5 | 520.00 | 62.00 | |
| 10039740 | HM3080 | Tr400x5 | 470.00 | 52.00 | |
| 10039741 | HM3084 | Tr420x5 | 490.00 | 52.00 | |
| 10039775 | HM3184 | Tr420x5 | 540.00 | 70.00 | |
| 10039742 | HM3088 | Tr440x5 | 520.00 | 60.00 | |
| 10039776 | HM3188 | Tr440x5 | 560.00 | 70.00 | |
| 10039743 | HM3092 | Tr460x5 | 540.00 | 60.00 | |
| 10039777 | HM3192 | Tr460x5 | 580.00 | 75.00 | |
| 10039778 | HM3196 | Tr480x5 | 620.00 | 75.00 | |
| 10039744 | HM3096 | Tr480x5 | 560.00 | 60.00 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
