XC719

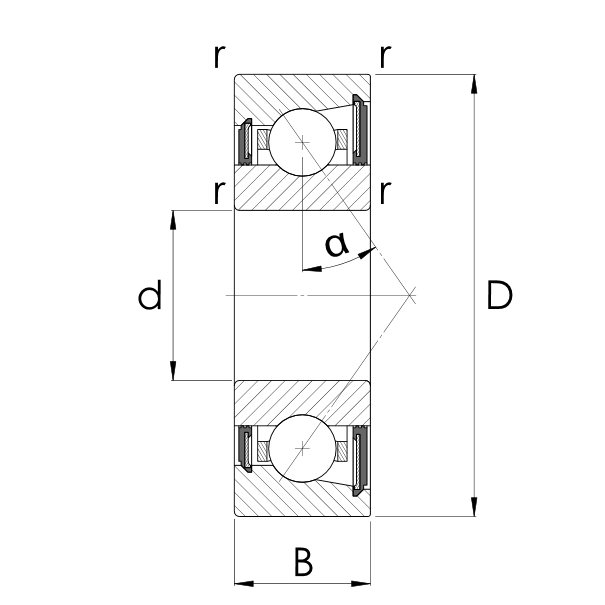

Hybrid spindle bearing XC719 - light serie
Description Main dimensions Functions d D B mm mm mm SKU Description Main dimensions Functions d D B mm mm mm 10415653 XC71900-E-T-P4S-UL 10.00 22.00 6.00 10415654 XC71901-E-T-P4S-UL 12.00 24.00 6.00 10415655 XC71902-E-T-P4S-UL 15.00 28.00 7.00 10415656 XC71903-E-T-P4S-UL 17.00 30.00 7.00 10415657 XC71904-E-T-P4S-UL 20.00 37.00 9.00 10434678 XC71905-E-T-P4S-UL 25.00 42.00 9.00 10434708 XC71906-E-T-P4S-UL 30.00 47.00 9.00 10434723 XC71907-E-T-P4S-UL 35.00 55.00 10.00 10434753 XC71908-E-T-P4S-UL 40.00 62.00 12.00 10434783 XC71909-E-T-P4S-UL 45.00 68.00 12.00 10434813 XC71910-E-T-P4S-UL 50.00 72.00 12.00 10434843 XC71911-E-T-P4S-UL 55.00 80.00 13.00 10434873 XC71912-E-T-P4S-UL 60.00 85.00 13.00 10434903 XC71913-E-T-P4S-UL 65.00 90.00 13.00 10434933 XC71914-E-T-P4S-UL 70.00 100.00 16.00 10434963 XC71915-E-T-P4S-UL 75.00 105.00 16.00 10434993 XC71916-E-T-P4S-UL 80.00 110.00 16.00 10435023 XC71917-E-T-P4S-UL 85.00 120.00 18.00 10435053 XC71918-E-T-P4S-UL 90.00 125.00 18.00 10435083 XC71919-E-T-P4S-UL 95.00 130.00 18.00 10435113 XC71920-E-T-P4S-UL 100.00 140.00 20.00 10435143 XC71921-E-T-P4S-UL 105.00 145.00 20.00 10435173 XC71922-E-T-P4S-UL 110.00 150.00 20.00 10435188 XC71924-E-T-P4S-UL 120.00 165.00 22.00 10435203 XC71926-E-T-P4S-UL 130.00 180.00 24.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -
XCS719

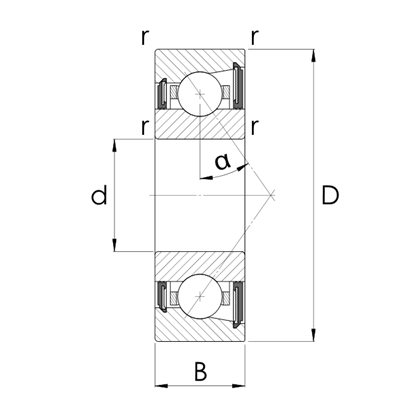

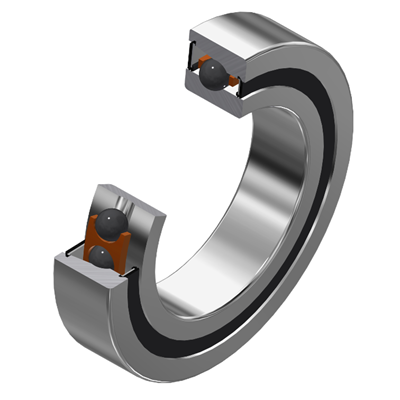

Hybrid spindle bearing XC719 - light serie
Description Main dimensions Functions d D B mm mm mm SKU Description Main dimensions Functions d D B mm mm mm 10435593 XCS71900-E-T-P4S-UL 10.00 22.00 6.00 10435608 XCS71901-E-T-P4S-UL 12.00 24.00 6.00 10435623 XCS71902-E-T-P4S-UL 15.00 28.00 7.00 10435638 XCS71903-E-T-P4S-UL 17.00 30.00 7.00 10435653 XCS71904-E-T-P4S-UL 20.00 37.00 9.00 10435668 XCS71905-E-T-P4S-UL 25.00 42.00 9.00 10435683 XCS71906-E-T-P4S-UL 30.00 47.00 9.00 10435698 XCS71907-E-T-P4S-UL 35.00 55.00 10.00 10435713 XCS71908-E-T-P4S-UL 40.00 62.00 12.00 10435728 XCS71909-E-T-P4S-UL 45.00 68.00 12.00 10435743 XCS71910-E-T-P4S-UL 50.00 72.00 12.00 10435758 XCS71911-E-T-P4S-UL 55.00 80.00 13.00 10435773 XCS71912-E-T-P4S-UL 60.00 85.00 13.00 10435788 XCS71913-E-T-P4S-UL 65.00 90.00 13.00 10435803 XCS71914-E-T-P4S-UL 70.00 100.00 16.00 10435818 XCS71915-E-T-P4S-UL 75.00 105.00 16.00 10435833 XCS71916-E-T-P4S-UL 80.00 110.00 16.00 10435848 XCS71917-E-T-P4S-UL 85.00 120.00 18.00 10435863 XCS71918-E-T-P4S-UL 90.00 125.00 18.00 10435878 XCS71919-E-T-P4S-UL 95.00 130.00 18.00 10435893 XCS71920-E-T-P4S-UL 100.00 140.00 20.00 10435908 XCS71921-E-T-P4S-UL 105.00 145.00 20.00 10435923 XCS71922-E-T-P4S-UL 110.00 150.00 20.00 10435938 XCS71924-E-T-P4S-UL 120.00 165.00 22.00 10435953 XCS71926-E-T-P4S-UL 130.00 180.00 24.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
Please note that the spindle bearings listed above only represent the smallest basic variant of many. Further variants are available in the online data sheet in the "Variants" tab. Please also note our technical information in the Prouctdescription
