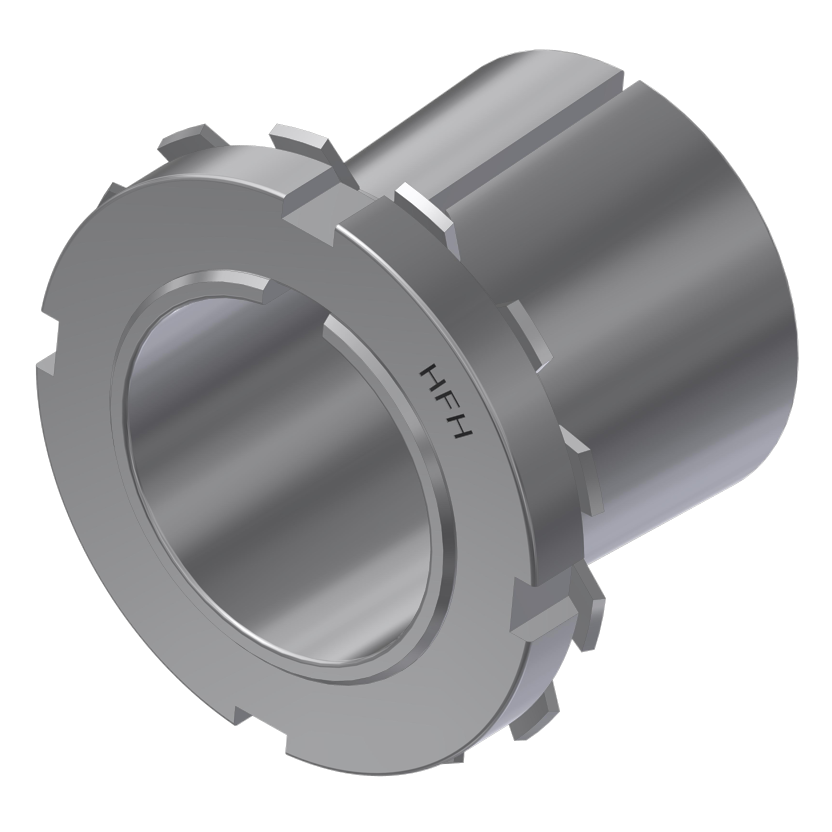

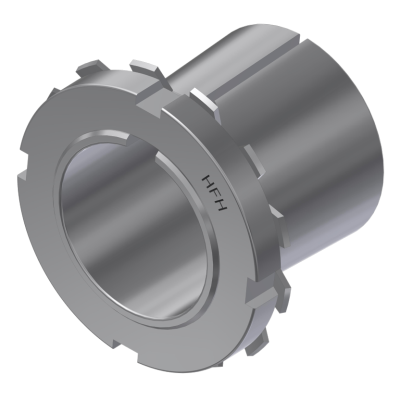

Adapter sleeve H300 according to DIN 5415
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | d[[sub]]1[[/sub]] | J | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | d[[sub]]1[[/sub]] | J | |||
| mm | mm | mm | |||
| 10070026 | H304 | 20.00 | 17.00 | 28.00 | |
| 10070042 | H305 | 25.00 | 20.00 | 29.00 | |
| 10070054 | H306 | 30.00 | 25.00 | 31.00 | |
| 10070062 | H307 | 35.00 | 30.00 | 35.00 | |
| 10070066 | H308 | 40.00 | 35.00 | 36.00 | |
| 10070070 | H309 | 45.00 | 40.00 | 39.00 | |
| 10070074 | H310 | 50.00 | 45.00 | 42.00 | |
| 10070078 | H311 | 55.00 | 50.00 | 45.00 | |
| 10070082 | H312 | 60.00 | 55.00 | 47.00 | |
| 10070110 | H313 | 65.00 | 60.00 | 50.00 | |
| 10070134 | H314 | 70.00 | 60.00 | 52.00 | |
| 10070150 | H315 | 75.00 | 65.00 | 55.00 | |
| 10070162 | H316 | 80.00 | 70.00 | 59.00 | |
| 10070170 | H317 | 85.00 | 75.00 | 63.00 | |
| 10070174 | H318 | 90.00 | 80.00 | 65.00 | |
| 10070178 | H319 | 95.00 | 85.00 | 68.00 | |
| 10070182 | H320 | 100.00 | 90.00 | 71.00 | |
| 10070186 | H321 | 105.00 | 95.00 | 74.00 | |
| 10070190 | H322 | 110.00 | 100.00 | 77.00 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
