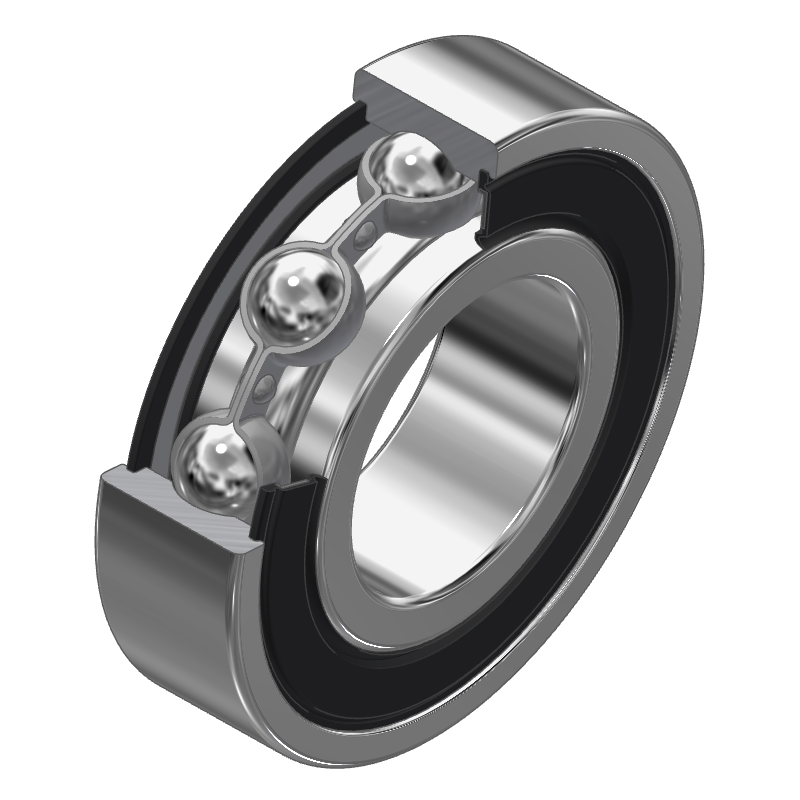

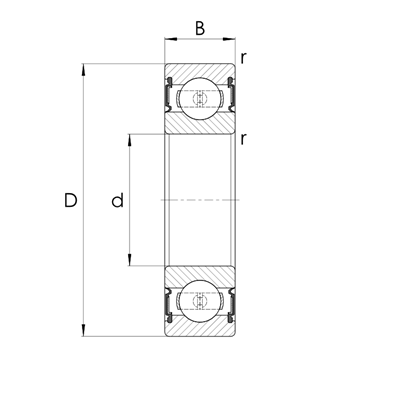

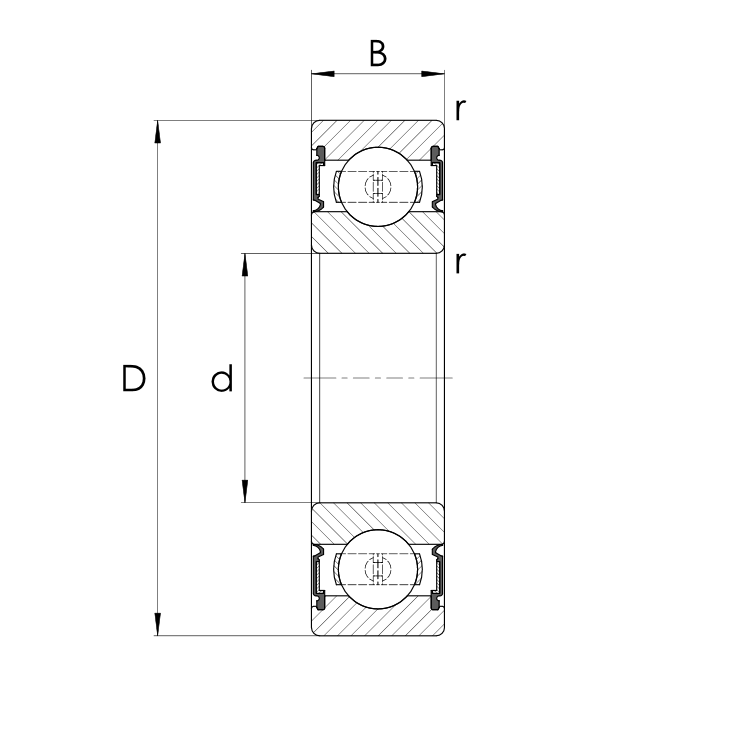

Rillenkugellager 622, Hauptabmessung nach DIN 6225-1, DIN 616 bzw. ISO 15:1998
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10078949 | 62200-2RS | 10,00 | 30,00 | 14,00 | |
| 10078952 | 62201-2RS | 12,00 | 32,00 | 14,00 | |
| 10078955 | 62202-2RS | 15,00 | 35,00 | 14,00 | |
| 10078958 | 62203-2RS | 17,00 | 40,00 | 16,00 | |
| 10078961 | 62204-2RS | 20,00 | 47,00 | 18,00 | |
| 10078964 | 62205-2RS | 25,00 | 52,00 | 18,00 | |
| 10078967 | 62206-2RS | 30,00 | 62,00 | 20,00 | |
| 10078970 | 62207-2RS | 35,00 | 72,00 | 23,00 | |
| 10078973 | 62208-2RS | 40,00 | 80,00 | 23,00 | |
| 10078976 | 62209-2RS | 45,00 | 85,00 | 23,00 | |
| 10078994 | 62210-2RS | 50,00 | 90,00 | 23,00 | |
| 10078997 | 62211-2RS | 55,00 | 100,00 | 25,00 | |
| 10079000 | 62212-2RS | 60,00 | 110,00 | 28,00 | |
| 10079003 | 62213-2RS | 65,00 | 120,00 | 31,00 | |
| 10079006 | 62214-2RS | 70,00 | 125,00 | 31,00 | |
