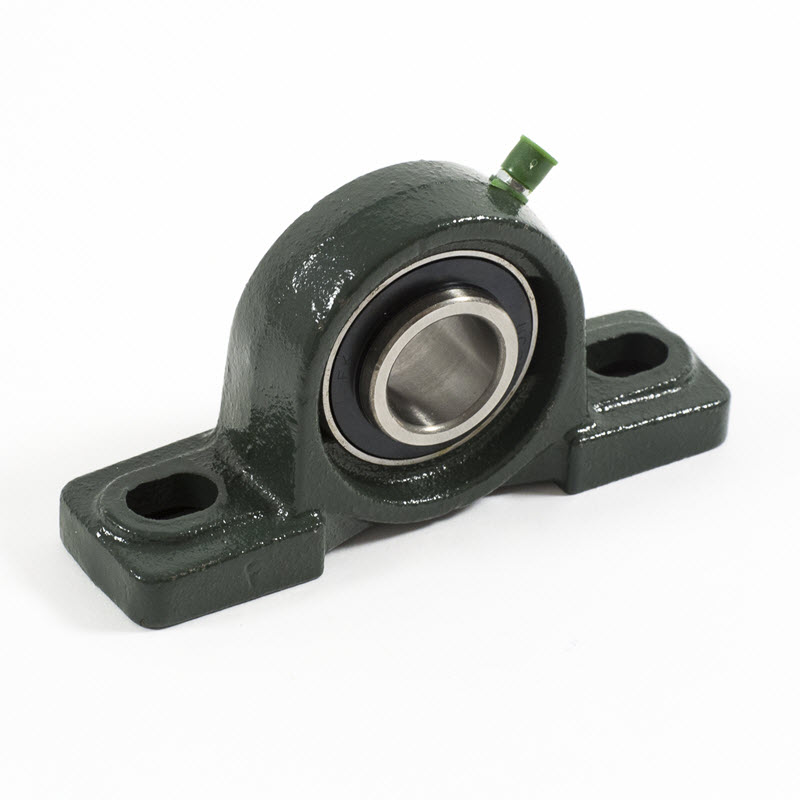

Stehlagereinheit UCPX (verstärkte Ausführung)

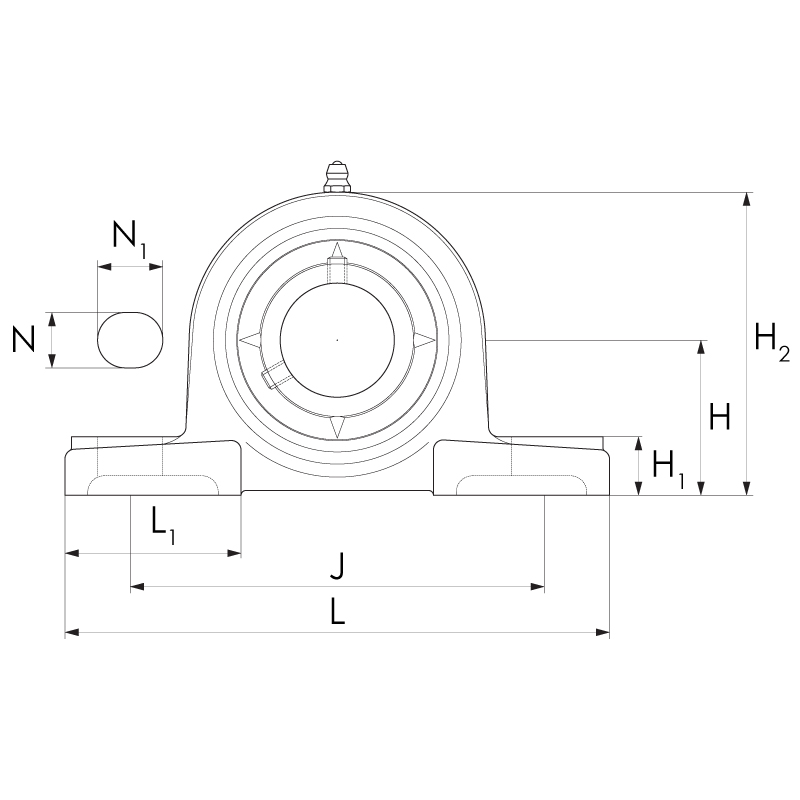

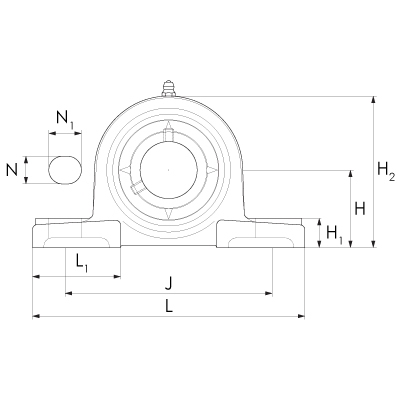

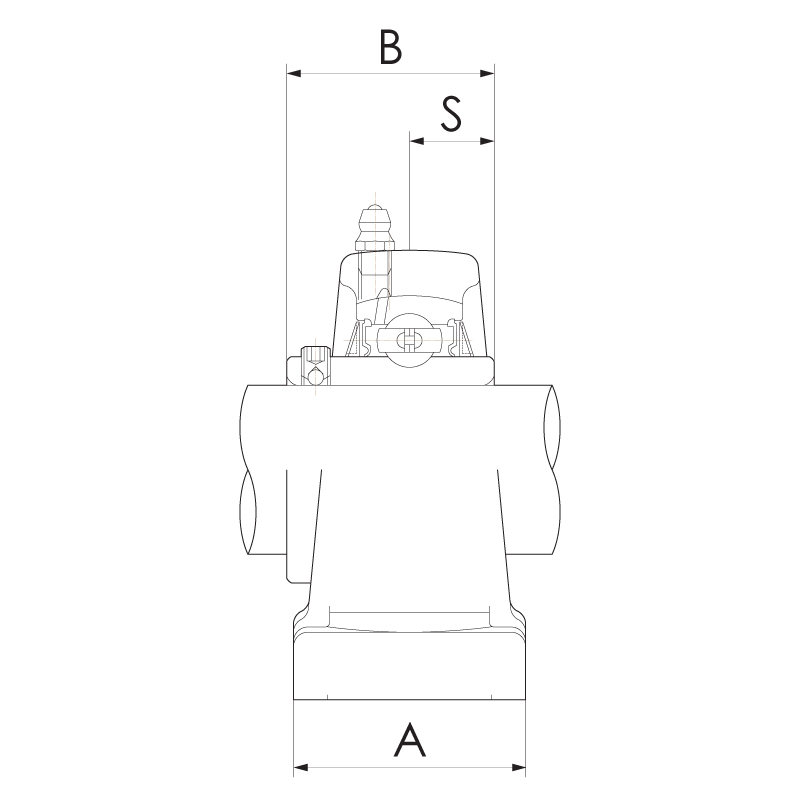

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| D | H2 | L | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| D | H2 | L | |||
| mm | mm | mm | |||
| 10060239 | UCPX05 | 25,00 | 85,00 | 159,00 | |
| 10060240 | UCPX06 | 30,00 | 93,00 | 175,00 | |
| 10060241 | UCPX07 | 35,00 | 105,00 | 203,00 | |
| 10060242 | UCPX08 | 40,00 | 111,00 | 222,00 | |
| 10060243 | UCPX09 | 45,00 | 116,00 | 222,00 | |
| 10060244 | UCPX10 | 50,00 | 126,00 | 241,00 | |
| 10060245 | UCPX11 | 55,00 | 137,00 | 260,00 | |
| 10060246 | UCPX12 | 60,00 | 151,00 | 286,00 | |
| 10060247 | UCPX13 | 65,00 | 154,00 | 286,00 | |
| 10060248 | UCPX14 | 70,00 | 170,00 | 330,00 | |
| 10060249 | UCPX15 | 75,00 | 175,00 | 330,00 | |
| 10060250 | UCPX16 | 80,00 | 194,00 | 381,00 | |
| 10060251 | UCPX17 | 85,00 | 200,00 | 381,00 | |
| 10060252 | UCPX18 | 90,00 | 206,00 | 381,00 | |
| 10060253 | UCPX20 | 100,00 | 244,00 | 432,00 | |
