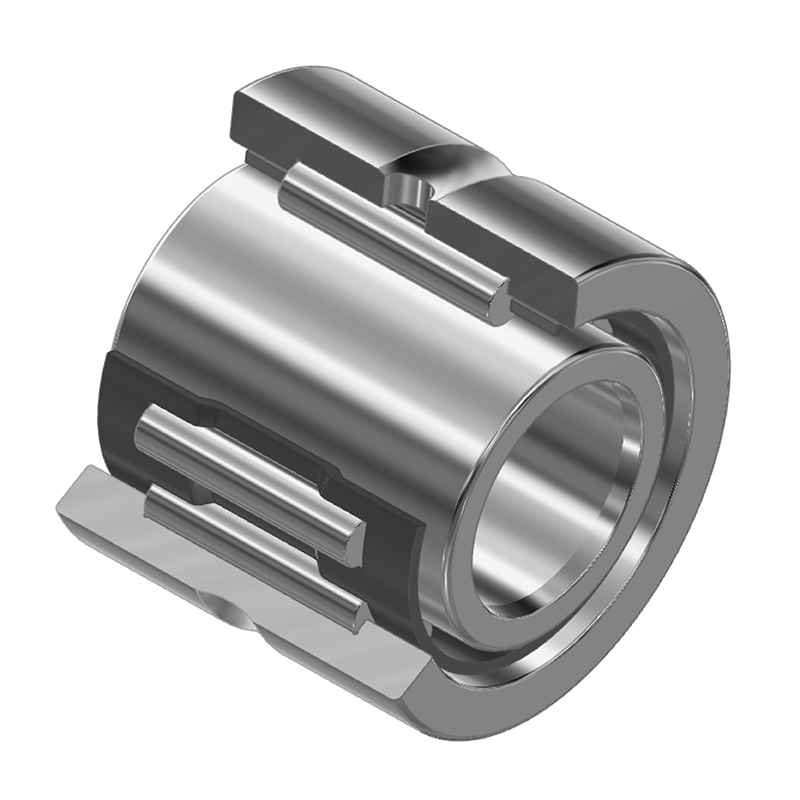

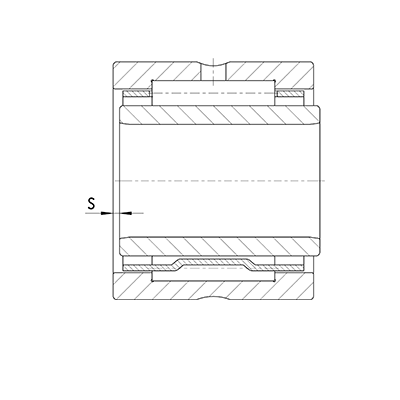

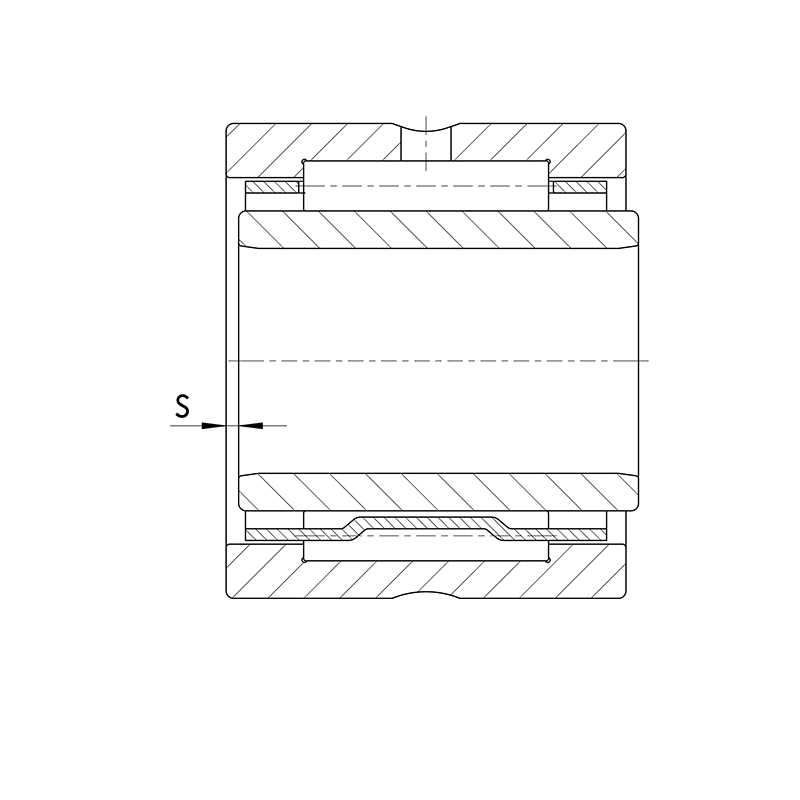

Nadellager NA48, Abmessungen nach DIN 617-1 / ISO 1206

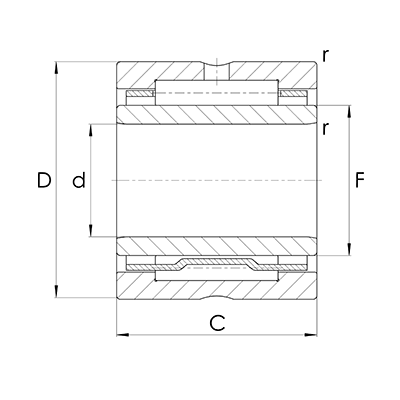

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | C | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | C | |||
| mm | mm | mm | |||
| 10040900 | NA4822 | 110,00 | 140,00 | 30,00 | |
| 10040901 | NA4824 | 120,00 | 150,00 | 30,00 | |
| 10040902 | NA4826 | 130,00 | 165,00 | 35,00 | |
| 10040903 | NA4828 | 140,00 | 175,00 | 35,00 | |
| 10040904 | NA4830 | 150,00 | 190,00 | 40,00 | |
| 10040905 | NA4832 | 160,00 | 200,00 | 40,00 | |
| 10040906 | NA4834 | 170,00 | 215,00 | 45,00 | |
| 10040907 | NA4836 | 180,00 | 225,00 | 45,00 | |
| 10040908 | NA4838 | 190,00 | 240,00 | 50,00 | |
| 10040909 | NA4840 | 200,00 | 250,00 | 50,00 | |
| 10040910 | NA4844 | 220,00 | 270,00 | 50,00 | |
| 10040911 | NA4848 | 240,00 | 300,00 | 60,00 | |
| 10040912 | NA4852 | 260,00 | 320,00 | 60,00 | |
| 10040913 | NA4856 | 280,00 | 350,00 | 69,00 | |
| 10040914 | NA4860 | 300,00 | 380,00 | 80,00 | |
| 10040915 | NA4864 | 320,00 | 400,00 | 80,00 | |
| 10040916 | NA4868 | 340,00 | 420,00 | 80,00 | |
| 10040917 | NA4872 | 360,00 | 440,00 | 80,00 | |
| 10040918 | NA4876 | 380,00 | 480,00 | 100,00 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
´
