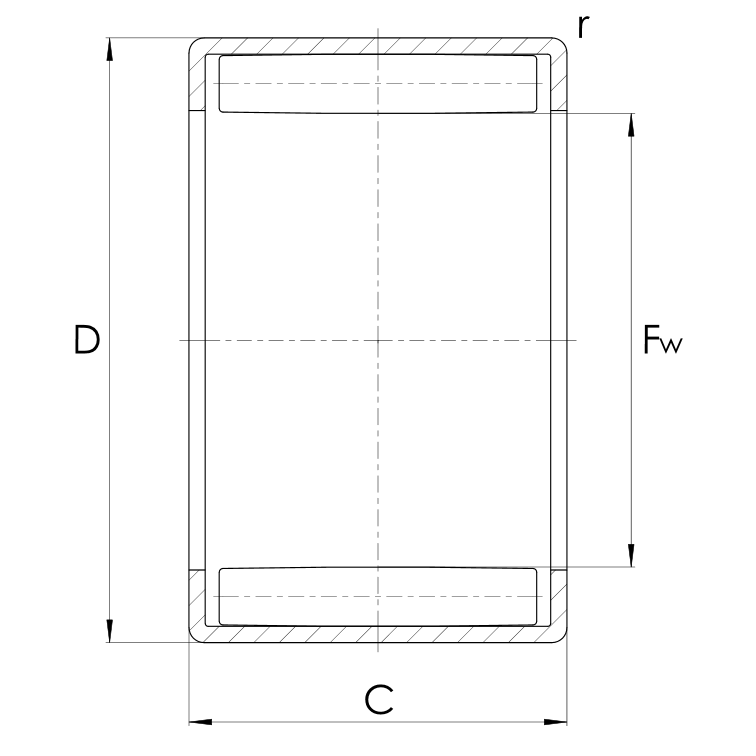

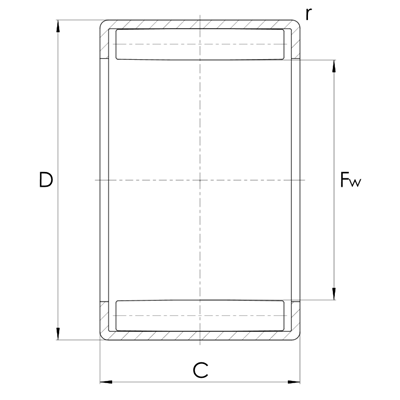

Nadelhülse HN, vollnadelig
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| Fw | D | C | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| Fw | D | C | |||
| mm | mm | mm | |||
| 10173524 | HN0808 | 8,00 | 12,00 | 8,00 | |
| 10173525 | HN1210 | 12,00 | 16,00 | 10,00 | |
| 10173526 | HN1212 | 12,00 | 18,00 | 12,00 | |
| 10173527 | HN1412 | 14,00 | 20,00 | 12,00 | |
| 10140687 | HN1516 | 15,00 | 21,00 | 16,00 | |
| 10173528 | HN1612 | 16,00 | 22,00 | 12,00 | |
| 10140224 | HN1816 | 18,00 | 24,00 | 16,00 | |
| 10173529 | HN2020 | 20,00 | 26,00 | 20,00 | |
| 10096321 | HN2520 | 25,00 | 32,00 | 20,00 | |
| 10173530 | HN2820 | 28,00 | 35,00 | 20,00 | |
| 10173531 | HN3520 | 35,00 | 42,00 | 20,00 | |
| 10173532 | HN4020 | 40,00 | 47,00 | 20,00 | |
| 10173533 | HN4520 | 45,00 | 52,00 | 20,00 | |
| 10173534 | HN4525 | 45,00 | 52,00 | 25,00 | |
| 10173535 | HN5020 | 50,00 | 58,00 | 20,00 | |
| 10173536 | HN5025 | 50,00 | 58,00 | 25,00 | |
