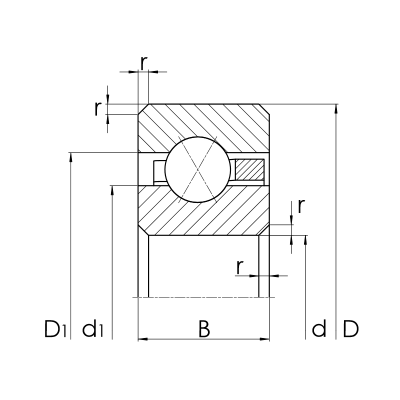

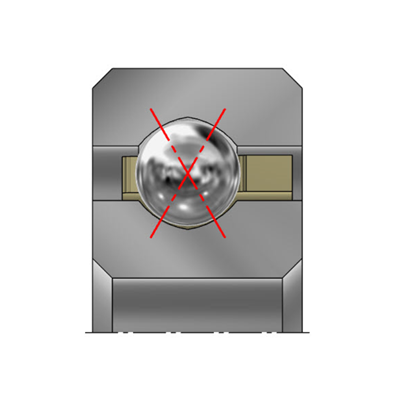

Thin section four-point contact bearing - 20 mm
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10229492 | K02520XP0 | 25.00 | 65.00 | 20.00 | |
| 10229493 | K05020XP0 | 50.00 | 90.00 | 20.00 | |
| 10229494 | K06020XP0 | 60.00 | 100.00 | 20.00 | |
| 10229495 | K07020XP0 | 70.00 | 110.00 | 20.00 | |
| 10229496 | K08020XP0 | 80.00 | 120.00 | 20.00 | |
| 10229497 | K09020XP0 | 90.00 | 130.00 | 20.00 | |
| 10229498 | K10020XP0 | 100.00 | 140.00 | 20.00 | |
| 10229499 | K11020XP0 | 110.00 | 150.00 | 20.00 | |
| 10229500 | K12020XP0 | 120.00 | 160.00 | 20.00 | |
| 10229501 | K13020XP0 | 130.00 | 170.00 | 20.00 | |
| 10229502 | K14020XP0 | 140.00 | 180.00 | 20.00 | |
| 10229503 | K15020XP0 | 150.00 | 190.00 | 20.00 | |
| 10229504 | K16020XP0 | 160.00 | 200.00 | 20.00 | |
| 10229505 | K17020XP0 | 170.00 | 210.00 | 20.00 | |
| 10229506 | K18020XP0 | 180.00 | 220.00 | 20.00 | |
| 10229507 | K19020XP0 | 190.00 | 230.00 | 20.00 | |
| 10229508 | K20020XP0 | 200.00 | 240.00 | 20.00 | |
| 10229509 | K25020XP0 | 250.00 | 290.00 | 20.00 | |
| 10229510 | K30020XP0 | 300.00 | 340.00 | 20.00 | |
| 10229511 | K32020XP0 | 320.00 | 360.00 | 20.00 | |
| 10229512 | K34020XP0 | 340.00 | 380.00 | 20.00 | |
| 10229513 | K36020XP0 | 360.00 | 400.00 | 20.00 | |
