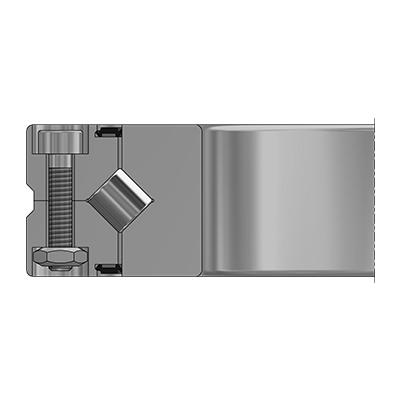

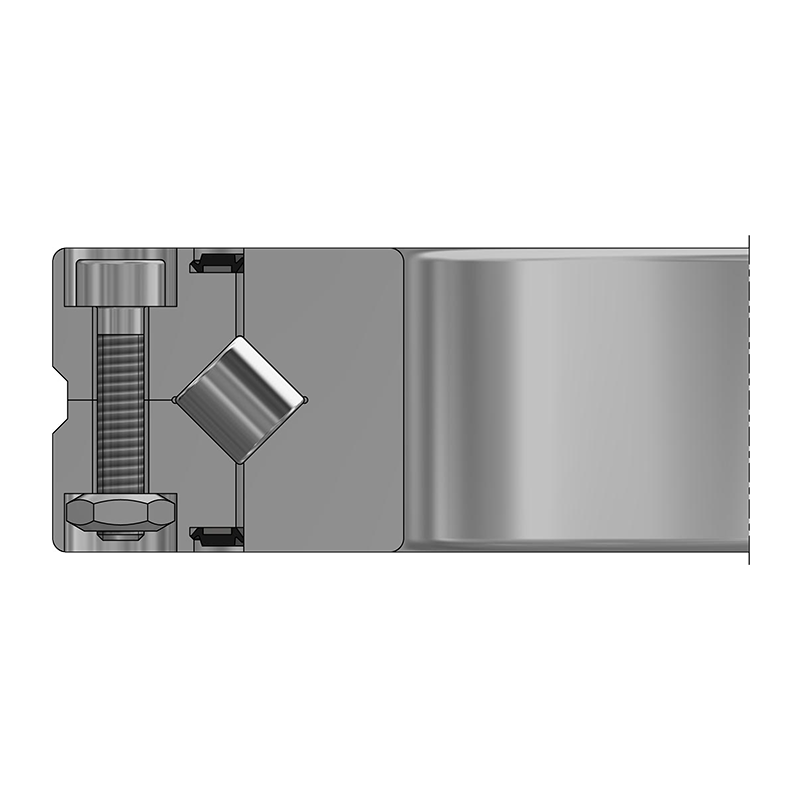

Crossed roller bearing RB - With split outer ring for inner ring rotation

Crossed roller bearing RB
Crossed roller bearing RB
Crossed roller bearing RB

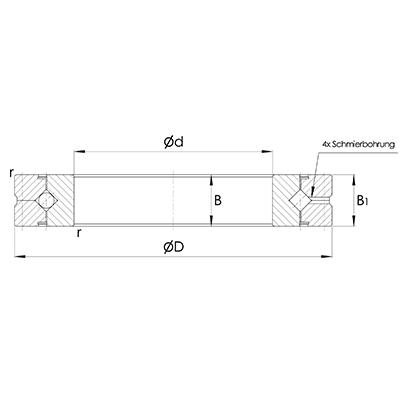

Description	Main dimensions			Functions
	d	D	B
	mm	mm	mm

SKU	Description	Main dimensions
		d	D	B
		mm	mm	mm
10285835	RB2008-C0-P0	20.00	36.00	8.00 _^-0.08
10285889	RB2508-C0-P0	25.00	41.00	8.00 _^-0.08
10285943	RB3010-C0-P0	30.00	55.00	10.00 _^-0.08
10285997	RB3510-C0-P0	35.00	60.00	10.00 _^-0.08
10286051	RB4010-C0-P0	40.00	65.00	10.00 _^-0.08
10286105	RB4510-C0-P0	45.00	70.00	10.00 _^-0.08
10286159	RB5013-C0-P0	50.00	80.00	13.00 _^-0.08
10286213	RB6013-C0-P0	60.00	90.00	13.00 _^-0.08
10286267	RB7013-C0-P0	70.00	100.00	13.00 _^-0.08
10286321	RB8016-C0-P0	80.00	120.00	16.00 _^-0.08
10286375	RB9016-C0-P0	90.00	130.00	16.00 _^-0.08
10286591	RB11015-C0-P0	100.00	145.00	15.00 _^-0.08
10286645	RB11020-C0-P0	100.00	160.00	20.00 _^-0.08
10286537	RB11012-C0-P0	100.00	135.00	12.00 _^-0.08
10286483	RB10020-C0-P0	100.00	150.00	20.00 _^-0.08
10286429	RB10016-C0-P0	100.00	140.00	16.00 _^-0.08
10286699	RB12016-C0-P0	120.00	150.00	16.00 _^-0.08
10286753	RB12025-C0-P0	120.00	180.00	25.00 _^-0.08
10286807	RB13015-C0-P0	130.00	160.00	15.00 _^-0.10
10286861	RB13025-C0-P0	130.00	190.00	25.00 _^-0.10
10286915	RB14016-C0-P0	140.00	175.00	16.00 _^-0.10
10286969	RB14025-C0-P0	140.00	200.00	25.00 _^-0.10
10287023	RB15013-C0-P0	150.00	180.00	13.00 _^-0.10
10287077	RB15025-C0-P0	150.00	210.00	25.00 _^-0.10
10287131	RB15030-C0-P0	150.00	230.00	30.00 _^-0.10
10287185	RB16025-C0-P0	160.00	220.00	25.00 _^-0.10
10287239	RB17020-C0-P0	170.00	220.00	20.00 _^-0.10
10287293	RB18025-C0-P0	180.00	240.00	25.00 _^-0.10
10287347	RB19025-C0-P0	190.00	240.00	25.00 _^-0.10
10287401	RB20025-C0-P0	200.00	260.00	25.00 _^-0.10
10287455	RB20030-C0-P0	200.00	280.00	30.00 _^-0.10
10287509	RB20035-C0-P0	200.00	295.00	35.00 _^-0.10
10290513	RB22025-C0-P0	220.00	280.00	25.00 _^-0.10
10290567	RB24025-C0-P0	240.00	300.00	25.00 _^-0.10
10290621	RB25025-C0-P0	250.00	310.00	25.00 _^-0.10
10290675	RB25030-C0-P0	250.00	330.00	30.00 _^-0.10
10290730	RB25040-C0-P0	250.00	355.00	40.00 _^-0.10
10290785	RB30025-C0-P0	300.00	360.00	25.00 _^-0.12
10290839	RB30035-C0-P0	300.00	395.00	35.00 _^-0.12
10290893	RB30040-C0-P0	300.00	405.00	40.00 _^-0.12
10290947	RB35020-C0-P0	350.00	400.00	20.00 _^-0.15
10291002	RB40035-C0-P0	400.00	480.00	35.00 _^-0.15
10291056	RB40040-C0-P0	400.00	510.00	40.00 _^-0.15
10291110	RB45025-C0-P0	450.00	500.00	25.00 _^-0.15
10291164	RB50025-C0-P0	500.00	550.00	25.00 _^-0.15
10291218	RB50040-C0-P0	500.00	600.00	40.00 _^-0.15
10291272	RB50050-C0-P0	500.00	625.00	50.00 _^-0.15
10291326	RB60040-C0-P0	600.00	700.00	40.00 _^-0.15
10291380	RB70045-C0-P0	700.00	815.00	45.00 _^-0.15
10291434	RB80070-C0-P0	800.00	950.00	70.00 _^-0.15
10291488	RB90070-C0-P0	900.00	1,050.00	70.00 _^-0.30
10291542	RB1000110-C0-P0	1,000.00	1,250.00	110.00 _^-0.30
10291596	RB1250110-C0-P0	1,250.00	1,500.00	110.00 _^-0.30

Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
