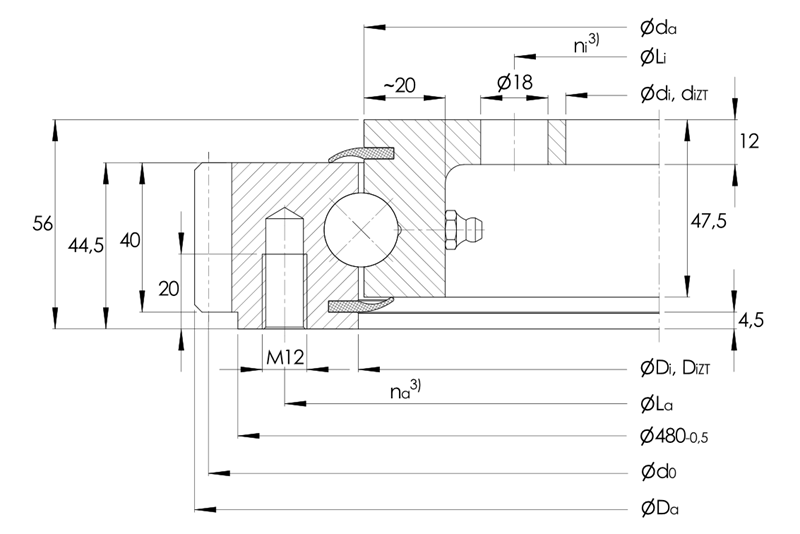

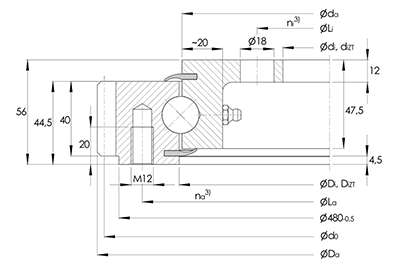

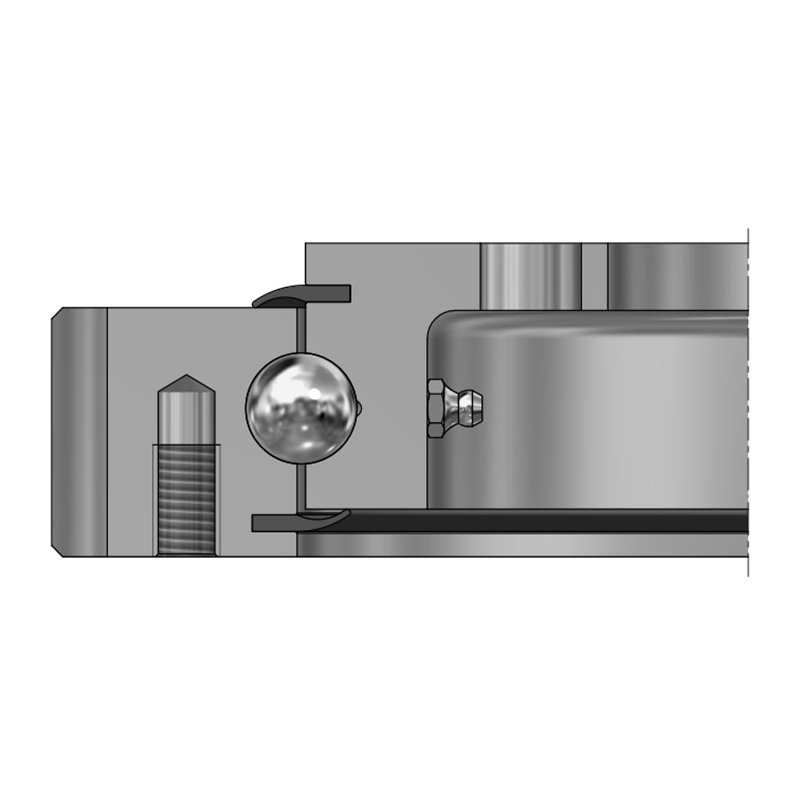

Four-point contact Slewing bearing VLA, light series 20, external toothed, bearing clearance selectable, sealed, grease nipple on the circumference of the untoothed ring

  • Four-point contact Slewing bearing VLA 20
    Four-point contact Slewing bearing VLA 20
  • Four-point contact Slewing bearing VLA 20
    Four-point contact Slewing bearing VLA 20
    Description Main dimensions Functions
    d D[[sub]]i[[/sub]] d[[sub]]a[[/sub]]
    mm mm mm
    SKU Description Main dimensions Functions
    d D[[sub]]i[[/sub]] d[[sub]]a[[/sub]]
    mm mm mm
    10093609 VLA200414-N 503.30 +0.50
    415.50     		412.50
    -0.50
    10093615 VLA200544-N 640.30 +0.50
    545.50     		542.50
    -0.50
    10093621 VLA200644-N 742.30 +0.60
    645.50     		642.50
    -0.60
    10093627 VLA200744-N 838.10 +0.60
    745.50     		742.50
    -0.60
    10093633 VLA200844-N 950.10 +0.60
    845.50     		842.50
    -0.60
    10093639 VLA200944-N 1,046.10 +0.70
    945.50     		942.50
    -0.70
    10093645 VLA201094-N 1,198.10 +0.70
    1,095.50     		1,092.50
    -0.70
    Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
