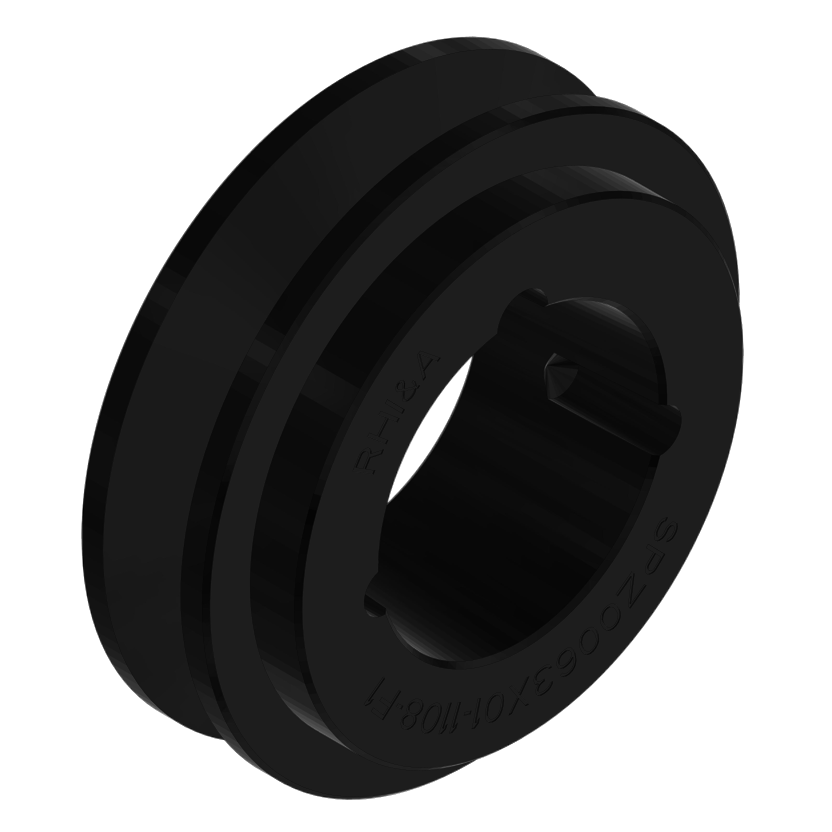

Keilriemenscheibe SPZ x 02
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| L | O | P | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| L | O | P | |||
| mm | mm | mm | |||
| 10051594 | SPZ0060x02-1108-F9 | 22,00 | 64,00 | 60,00 | |
| 10051596 | SPZ0063x02-1108-F8 | 22,00 | 67,00 | 63,00 | |
| 10051599 | SPZ0067x02-1108-F8 | 22,00 | 71,00 | 67,00 | |
| 10051602 | SPZ0071x02-1108-F8 | 22,00 | 75,00 | 71,00 | |
| 10051657 | SPZ0132x02-1610-F8 | 25,00 | 136,00 | 132,00 | |
| 10051663 | SPZ0140x02-1610-F8 | 25,00 | 144,00 | 140,00 | |
| 10051590 | SPZ0050x02-1008-F9 | 25,00 | 54,00 | 50,00 | |
| 10051651 | SPZ0125x02-1610-F8 | 25,00 | 129,00 | 125,00 | |
| 10051645 | SPZ0118x02-1610-F8 | 25,00 | 122,00 | 118,00 | |
| 10051639 | SPZ0112x02-1610-F8 | 25,00 | 116,00 | 112,00 | |
| 10051633 | SPZ0106x02-1610-F8 | 25,00 | 110,00 | 106,00 | |
| 10051622 | SPZ0095x02-1610-F8 | 25,00 | 99,00 | 95,00 | |
| 10051617 | SPZ0090x02-1610-F8 | 25,00 | 94,00 | 90,00 | |
| 10051612 | SPZ0085x02-1610-F8 | 25,00 | 89,00 | 85,00 | |
| 10051608 | SPZ0080x02-1210-F8 | 25,00 | 84,00 | 80,00 | |
| 10051605 | SPZ0075x02-1210-F8 | 25,00 | 79,00 | 75,00 | |
| 10051627 | SPZ0100x02-1610-F8 | 25,00 | 104,00 | 100,00 | |
| 10051691 | SPZ0180x02-2012-F7 | 32,00 | 184,00 | 180,00 | |
| 10051740 | SPZ0355x02-2012-F4 | 32,00 | 359,00 | 355,00 | |
| 10051733 | SPZ0315x02-2012-F4 | 32,00 | 319,00 | 315,00 | |
| 10051726 | SPZ0280x02-2012-F4 | 32,00 | 284,00 | 280,00 | |
| 10051719 | SPZ0250x02-2012-F4 | 32,00 | 254,00 | 250,00 | |
| 10051712 | SPZ0224x02-2012-F4 | 32,00 | 228,00 | 224,00 | |
| 10051705 | SPZ0200x02-2012-F7 | 32,00 | 204,00 | 200,00 | |
| 10051698 | SPZ0190x02-2012-F7 | 32,00 | 194,00 | 190,00 | |
| 10051684 | SPZ0170x02-2012-F1 | 32,00 | 174,00 | 170,00 | |
| 10051677 | SPZ0160x02-2012-F1 | 32,00 | 164,00 | 160,00 | |
| 10051670 | SPZ0150x02-2012-F1 | 32,00 | 154,00 | 150,00 | |
| 10051747 | SPZ0400x02-2517-F4 | 45,00 | 404,00 | 400,00 | |
| 10051754 | SPZ0450x02-2517-F4 | 45,00 | 454,00 | 450,00 | |
