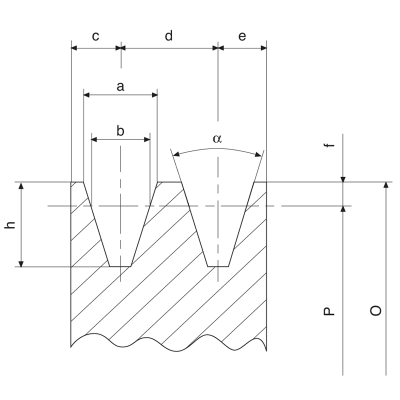

Keilriemenscheibe SPB x 05
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| L | O | P | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| L | O | P | |||
| mm | mm | mm | |||
| 10051288 | SPB0125x05-2012-F8 | 32,00 | 132,00 | 125,00 | |
| 10051293 | SPB0132x05-2517-F8 | 45,00 | 139,00 | 132,00 | |
| 10051298 | SPB0140x05-2517-F3 | 45,00 | 147,00 | 140,00 | |
| 10051304 | SPB0150x05-2517-F3 | 45,00 | 157,00 | 150,00 | |
| 10051310 | SPB0160x05-2517-F3 | 45,00 | 167,00 | 160,00 | |
| 10051316 | SPB0170x05-3020-F3 | 51,00 | 177,00 | 170,00 | |
| 10051323 | SPB0180x05-3020-F3 | 51,00 | 187,00 | 180,00 | |
| 10051337 | SPB0200x05-3020-F3 | 51,00 | 207,00 | 200,00 | |
| 10051344 | SPB0212x05-3020-F3 | 51,00 | 219,00 | 212,00 | |
| 10051351 | SPB0224x05-3020-F3 | 51,00 | 231,00 | 224,00 | |
| 10051425 | SPB0500x05-3535-F5 | 89,00 | 507,00 | 500,00 | |
| 10051418 | SPB0450x05-3535-F5 | 89,00 | 457,00 | 450,00 | |
| 10051411 | SPB0400x05-3535-F5 | 89,00 | 407,00 | 400,00 | |
| 10051404 | SPB0355x05-3535-F6 | 89,00 | 362,00 | 355,00 | |
| 10051397 | SPB0335x05-3535-F6 | 89,00 | 342,00 | 335,00 | |
| 10051390 | SPB0315x05-3535-F6 | 89,00 | 322,00 | 315,00 | |
| 10051383 | SPB0300x05-3535-F6 | 89,00 | 307,00 | 300,00 | |
| 10051375 | SPB0280x05-3535-F6 | 89,00 | 287,00 | 280,00 | |
| 10051367 | SPB0250x05-3535-F3 | 89,00 | 257,00 | 250,00 | |
| 10051359 | SPB0236x05-3535-F3 | 89,00 | 243,00 | 236,00 | |
| 10051458 | SPB0900x05-4040-F4 | 102,00 | 907,00 | 900,00 | |
| 10051445 | SPB0710x05-4040-F4 | 102,00 | 717,00 | 710,00 | |
| 10051452 | SPB0800x05-4040-F4 | 102,00 | 807,00 | 800,00 | |
| 10051438 | SPB0630x05-4040-F4 | 102,00 | 637,00 | 630,00 | |
| 10051432 | SPB0560x05-4040-F4 | 102,00 | 567,00 | 560,00 | |
| 10051272 | SPB1250x05-4545-F4 | 114,00 | 1.257,00 | 1.250,00 | |
| 10051266 | SPB1000x05-4545-F4 | 114,00 | 1.007,00 | 1.000,00 | |
